Accessories
11.2 DRIVE-CLiQ coupling
SINAMICS S120 Combi
272 Manual, 11/2017, 6SL3097-4AV00-0BP7
11.2.5
Mounting
â‘
Contact surface

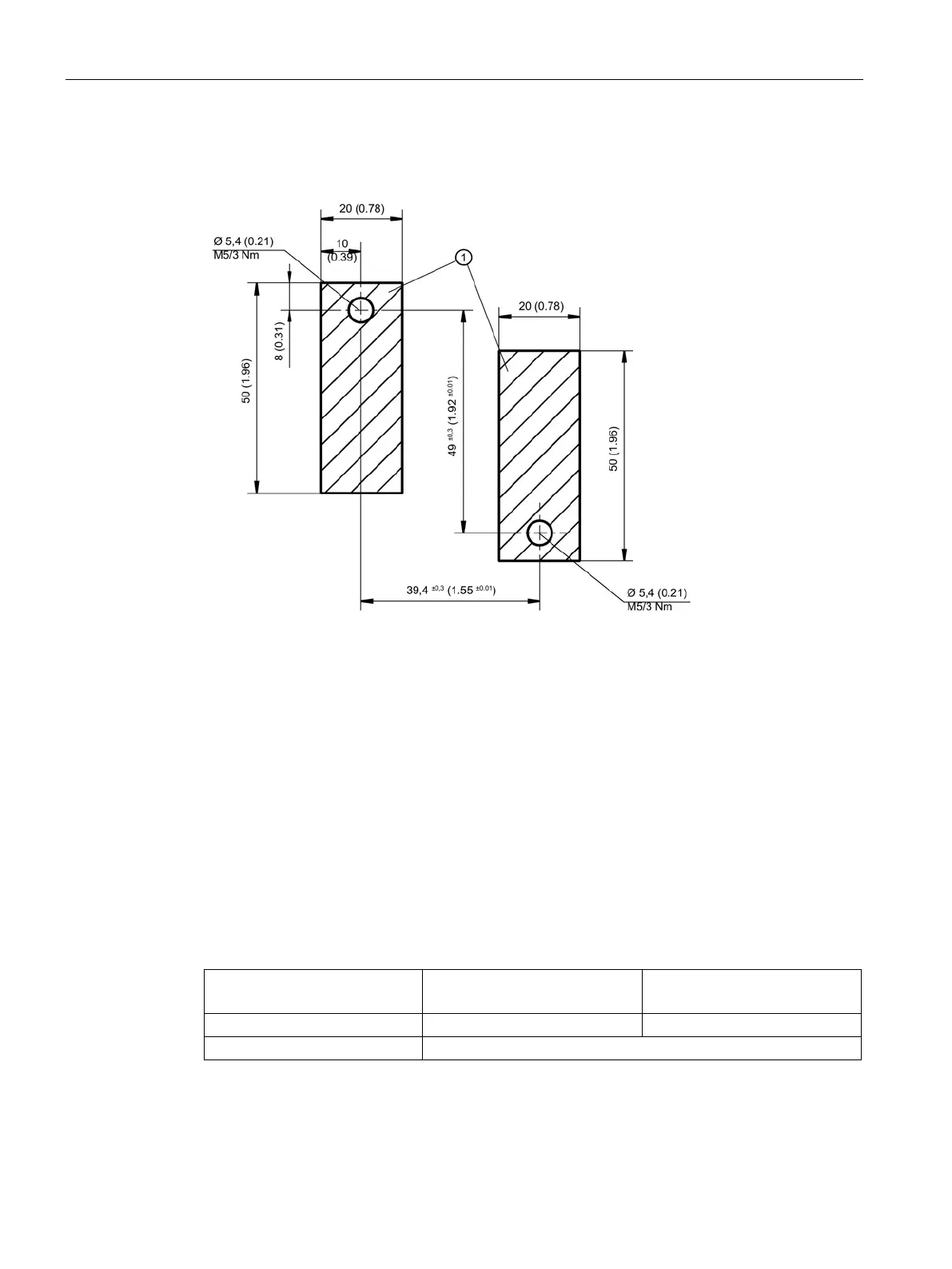

Figure 11-12 Hole drilling pattern for installation
Installation
1. Attach the DRIVE-CLiQ coupling to the mounting surface as shown in the drilling pattern.
2. Remove the protective caps of the DRIVE-CLiQ coupling.
3. Latch the DRIVE-CLiQ connectors at both sides of the DRIVE-CLiQ coupling.
11.2.6
Technical data
Table 11- 2 Technical data
DRIVE-CLiQ coupling 6SL3066-
2DA00-0AB0
Unit
Weight
kg
0.272
Degree of protection
IP67 according to IEC 60529
