Siemens SINAMICS S120 Combi User Manual

Line-side power components
3.7 Line reactors
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
47

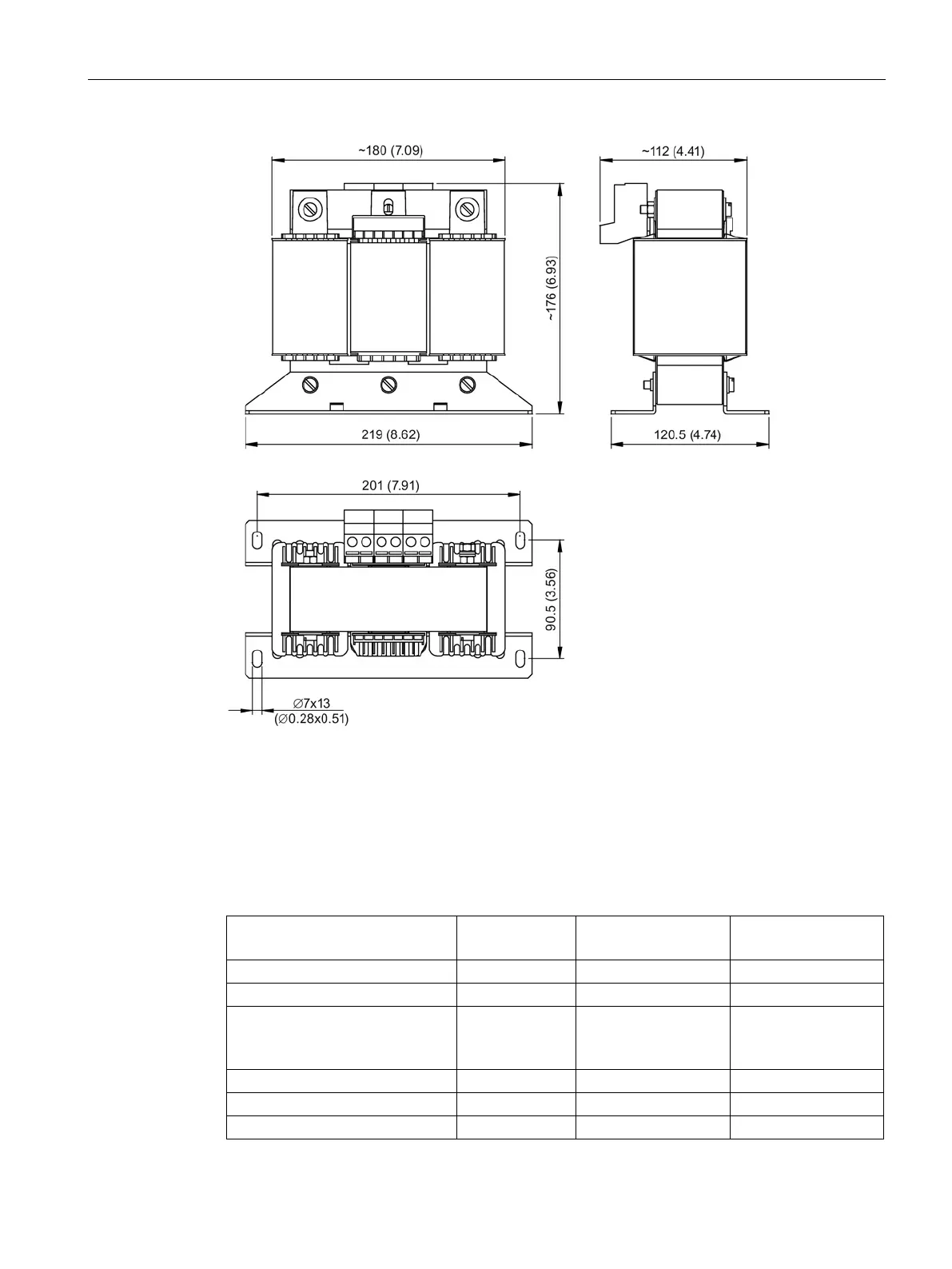

Figure 3-7 Dimension drawing of the line reactor for S120 Combi (20 kW infeed), all dimensions in
mm and (inches)
3.7.5
Technical data
Table 3- 5 Technical data, line reactors for S120 Combi
Unit
6SL3100-0EE21-
6AA0
6SL3100-0EE22-
0AA0
Rated power
kW
16
20
Rated current
A
rms
28
33
Power loss
(see power loss tables
(Page 300))
W 75 98
Dimensions (W x H x D)
mm
219 x 176 x 120
219 x 176 x 130
Weight
kg
10.7
10.9
Degree of protection
IPXXA
IPXXA
