Accessories
11.2 DRIVE-CLiQ coupling
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
271
11.2.3
Interface description
11.2.3.1
Overview
â‘
Rating plate
â‘¡
Protective cap, Yamaichi, Article No.: Y-ConAS-24-S

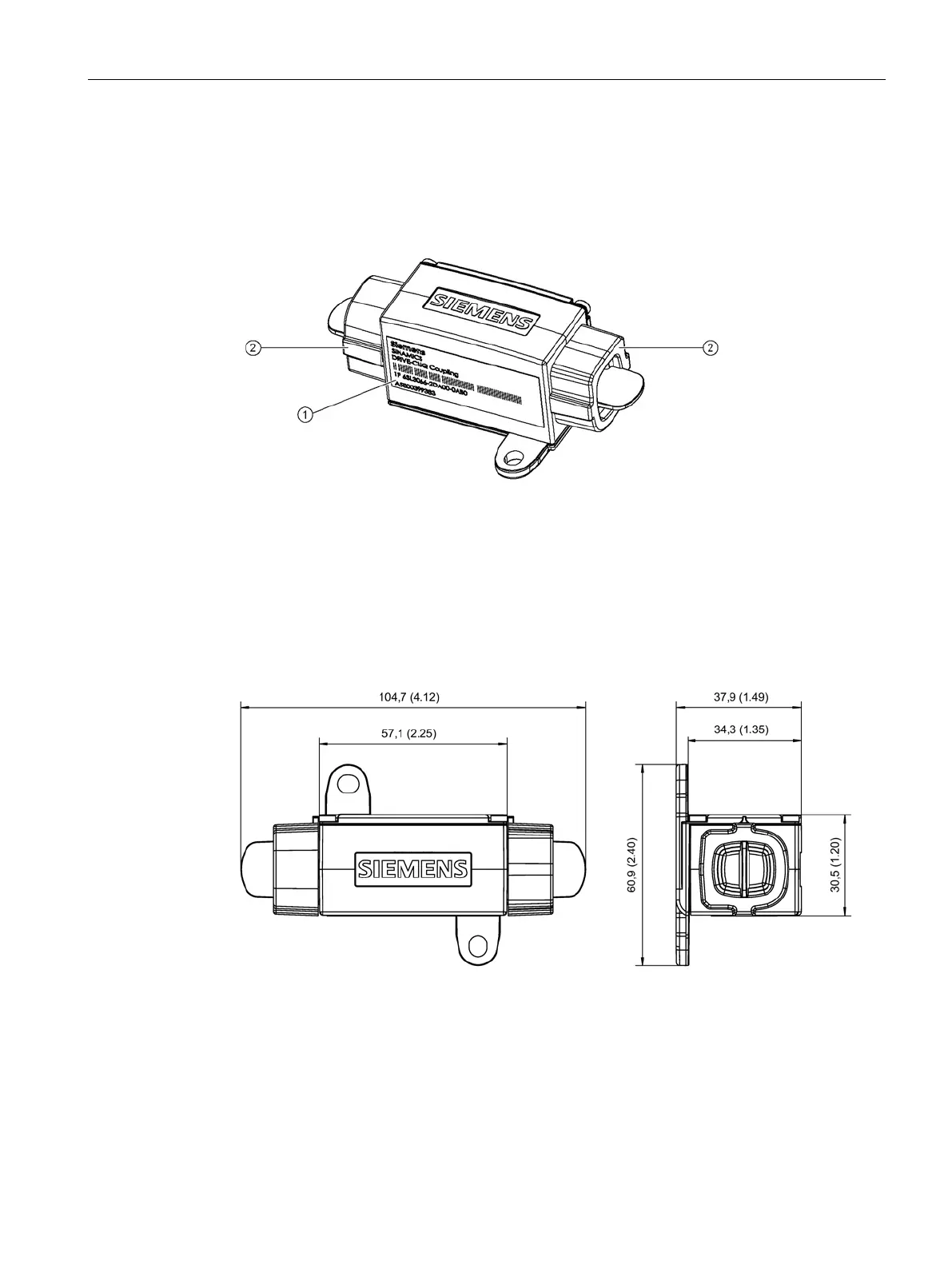

Figure 11-10 Interface overview, DRIVE-CLiQ coupling
11.2.4
Dimension drawing
Figure 11-11 Dimension drawing of the DRIVE-CLiQ coupling, all dimensions in mm and (inches)
