Siemens SINAMICS S120 Combi User Manual

Service and maintenance
13.2 Replacing the fan
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
309
13.2.3
Replacing the fan on the Motor Modules Booksize Compact

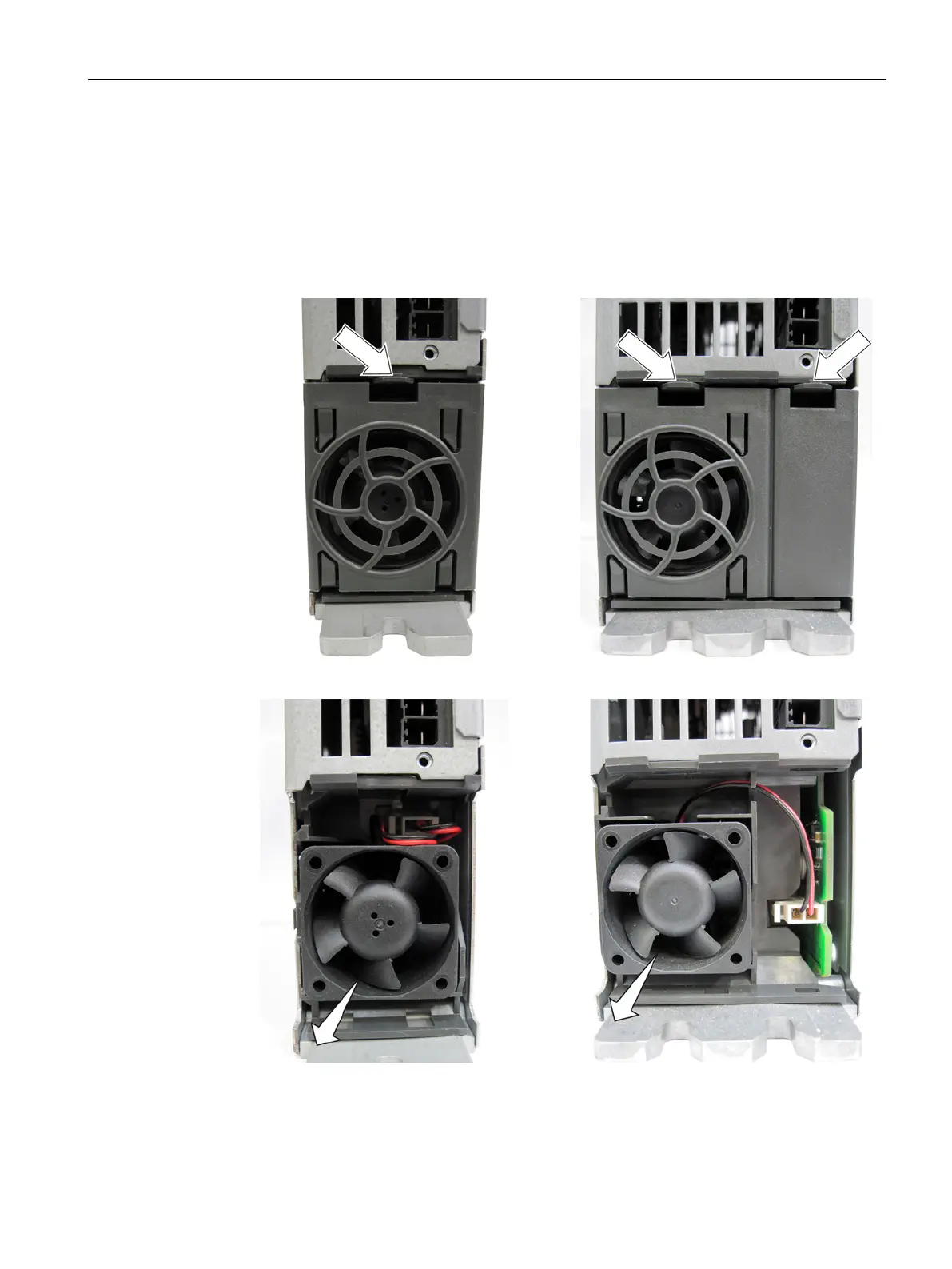

Removing the fan
Size 50 mm
Size 75 mm
•
Remove the Motor Module from the drive line-up.
•
Remove the fan cover at the lower side of the Motor Module by releasing the snap hooks.
•
Carefully withdraw the fan.
