Service and maintenance
13.2 Replacing the fan
SINAMICS S120 Combi
310 Manual, 11/2017, 6SL3097-4AV00-0BP7
•

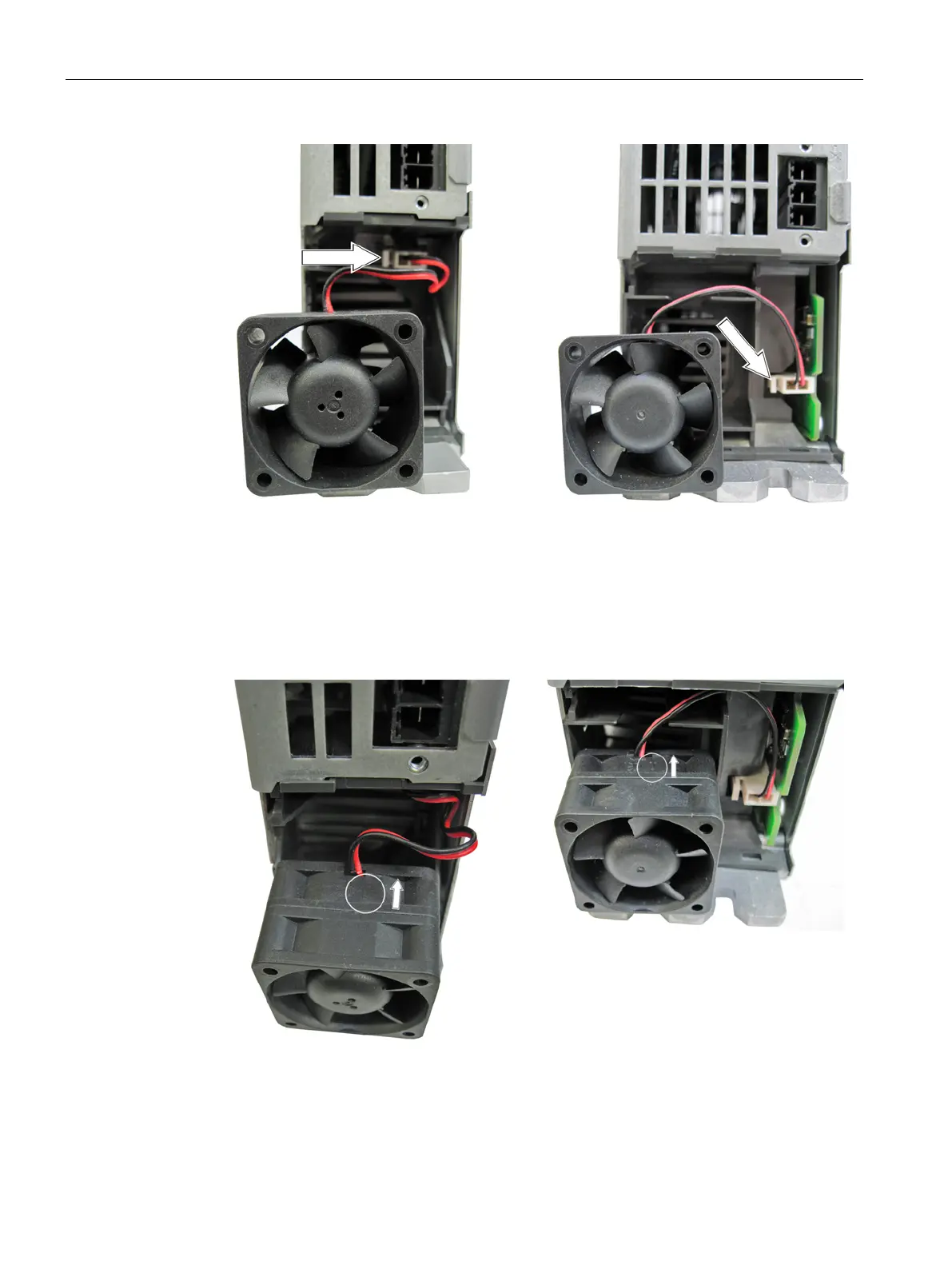

Release the connector and remove the connecting cable.
Installing a fan
Size 50 mm
Size 75 mm
•
Check the air flow direction before installing the fan (the arrow on the fan must point
towards the cooling ribs).
•
Insert the connector until it latches into place.
•
Install the fan.
Notice
: Do not crush the connection cables.
•
Attach the fan cover.
