DC link components
7.2 Braking Module Booksize
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
171
7.2.4
Connection example

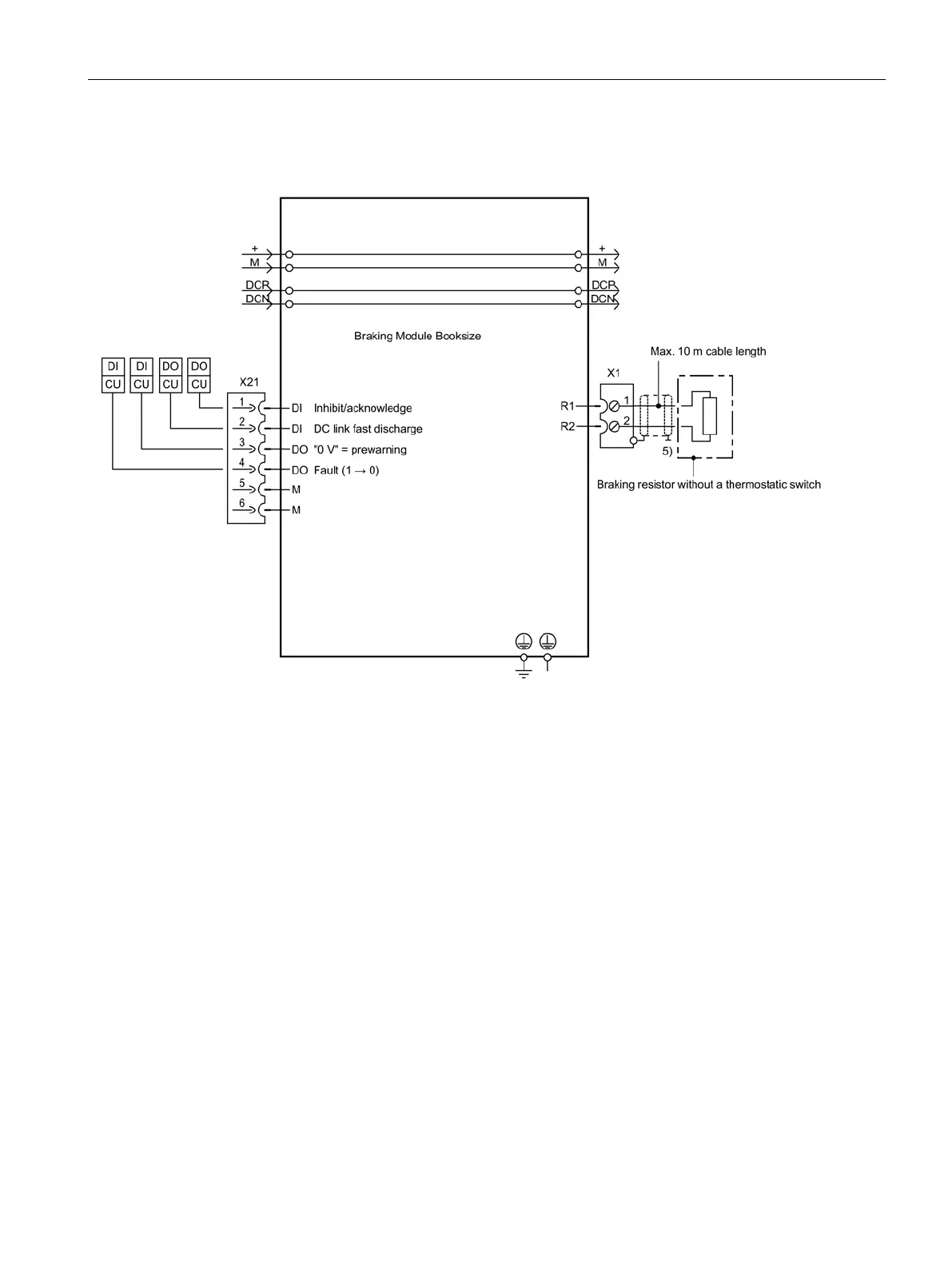

Figure 7-8 Connection example of a Braking Module Booksize
Information on how to parameterize the digital inputs or digital outputs, see the SINAMICS
S120/S150 List Manual.
