Siemens SINAMICS S120 Combi User Manual

DC link components
7.2 Braking Module Booksize
SINAMICS S120 Combi
174 Manual, 11/2017, 6SL3097-4AV00-0BP7
7.2.7
Installation
①
State when supplied with spacer
②
Spacer removed - mounting depth for S120 Combi

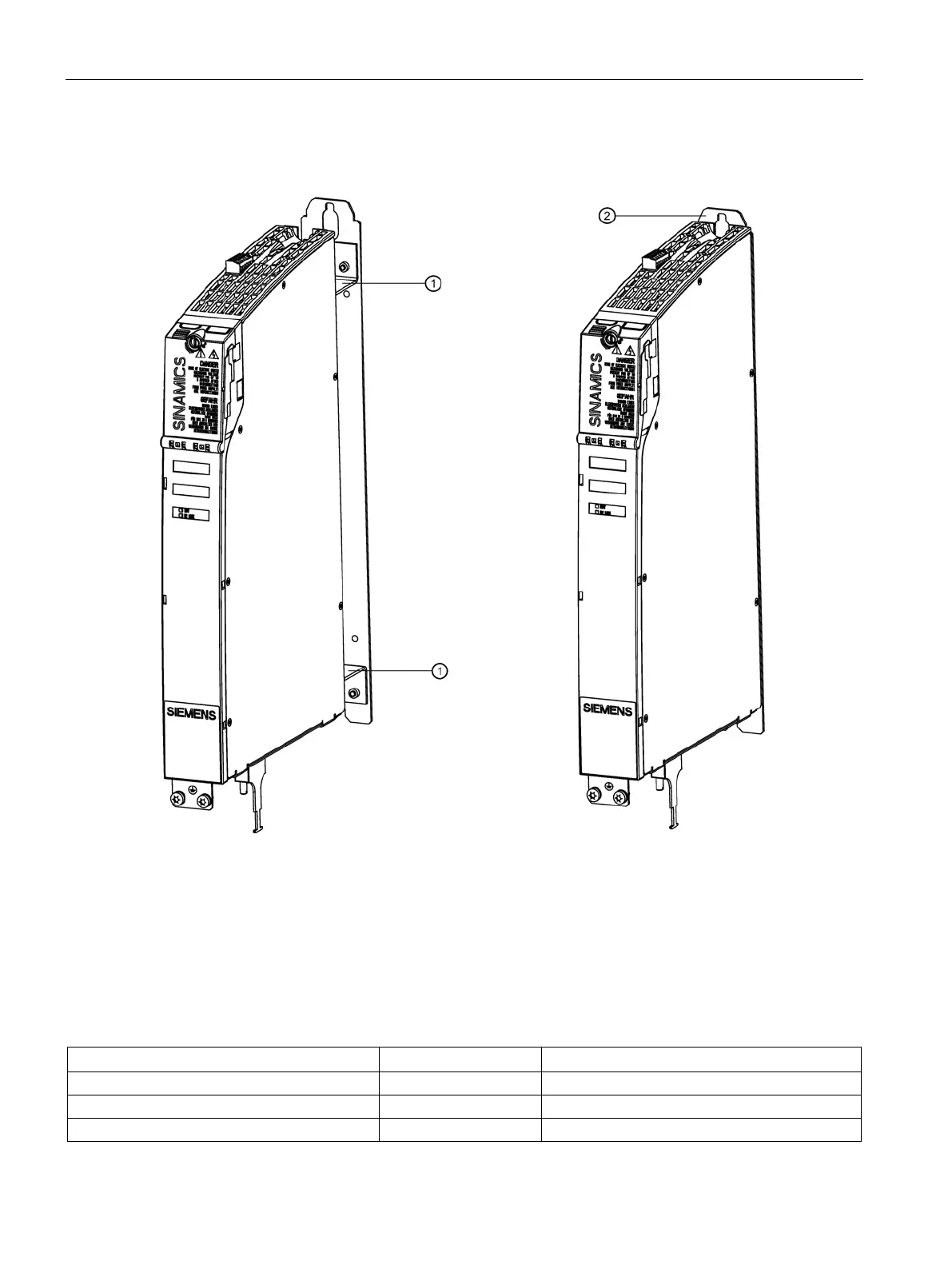

Figure 7-10 Methods of installing Braking Modules with/without spacer elements
7.2.8
Technical data
Table 7- 11 Technical data
6SL3100-1AE31-0AB.
DC link voltage V
DC
510 … 720
DC link capacitance
µF
110
ON threshold
V
770
