Siemens SINAMICS S120 Combi - Connection examples

Topology rules for DRIVE-CLiQ
5.1 Connection examples
SINAMICS S120 Combi
124 Manual, 11/2017, 6SL3097-4AV00-0BP7
5.1
Connection examples
5.1.1
Operation with a 3 axes Power Module

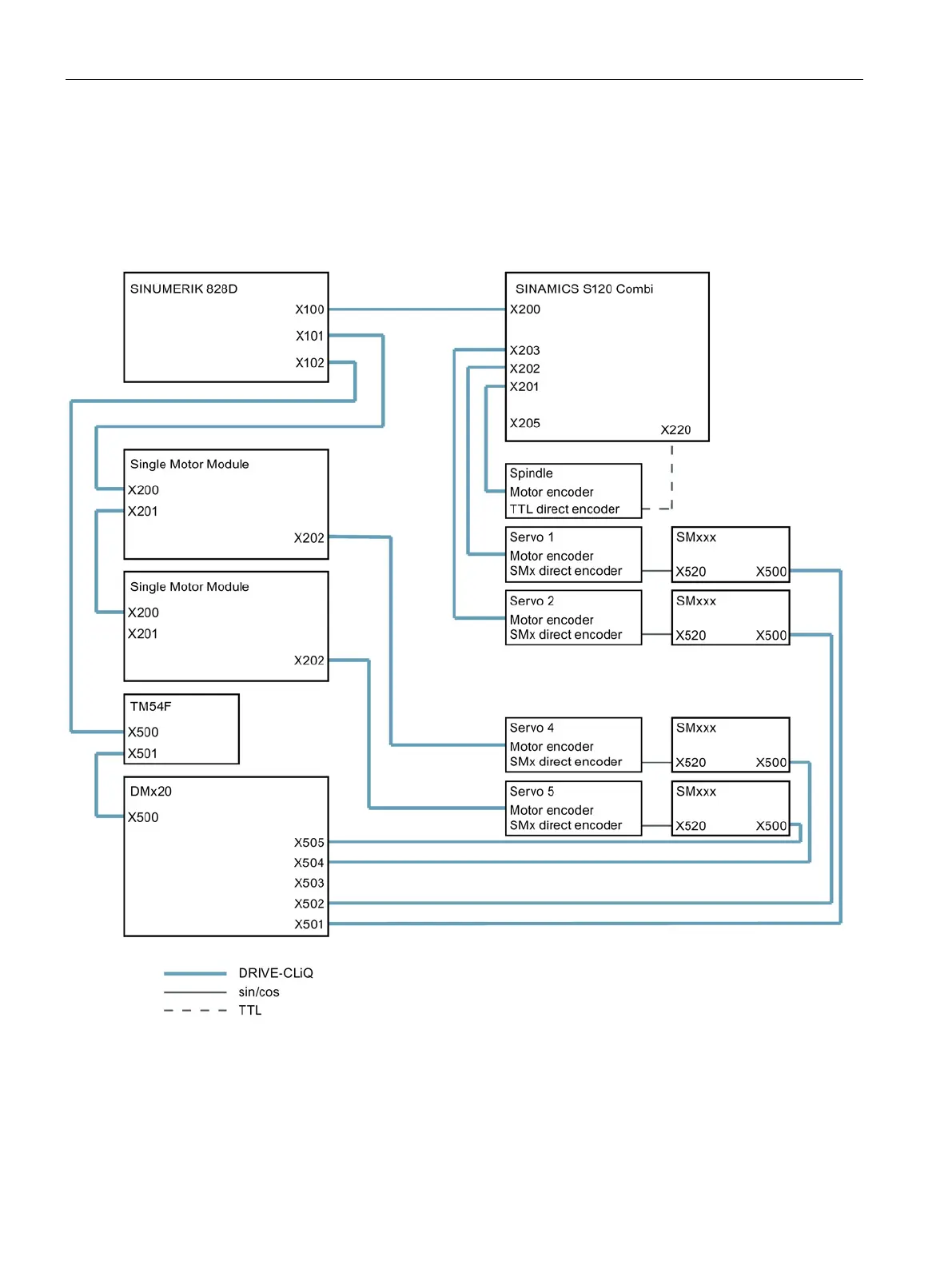

Figure 5-1 DRIVE-CLiQ wiring with TTL encoder for 1 S120 Combi 3-axis Power Module and 2 Single Motor Modules
