Siemens SINAMICS S120 Combi User Manual

Motor Modules Booksize Compact as expansion axes
6.6 Dimension drawings
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
143

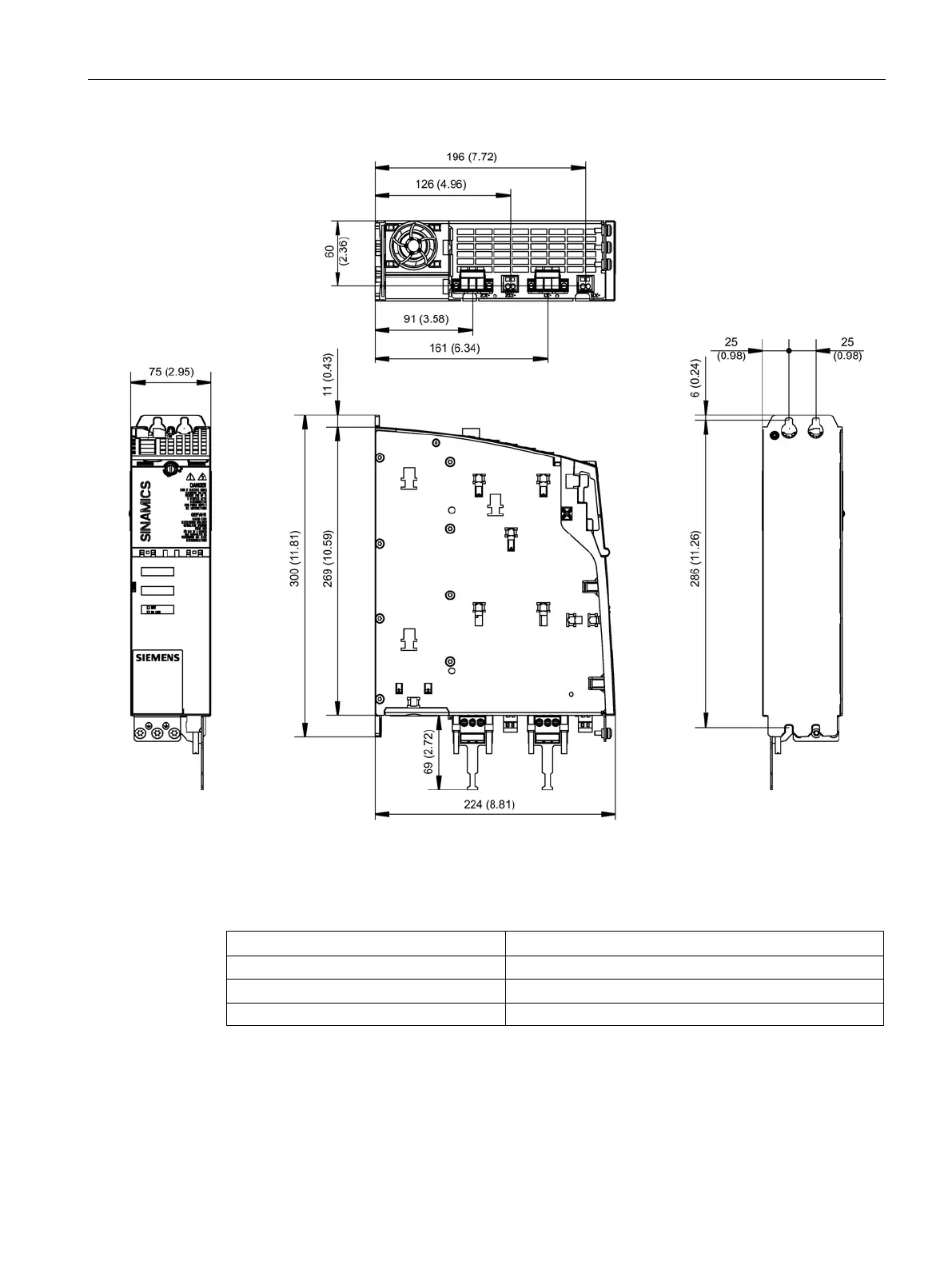

Figure 6-6 Dimension drawing of 2 x 1.7 A, 2 x 3 A, and 2 x 5 A Double Motor Modules Compact, all dimensions in mm
and (inches); example: 2 x 5 A Double Motor Module
Table 6- 8 2 x 1.7 A, 2 x 3 A, and 2 x 5 A Double Motor Modules Booksize Compact
Double Motor Module
Article No.
2 x 1.7 A Double Motor Module
6SL3420-2TE11-7AA.
2 x 3 A Double Motor Module 6SL3420-2TE13-0AA.
2 x 5 A Double Motor Module
6SL3420-2TE15-0AA.
