System overview
2.1 SINAMICS S120 Combi components
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
29

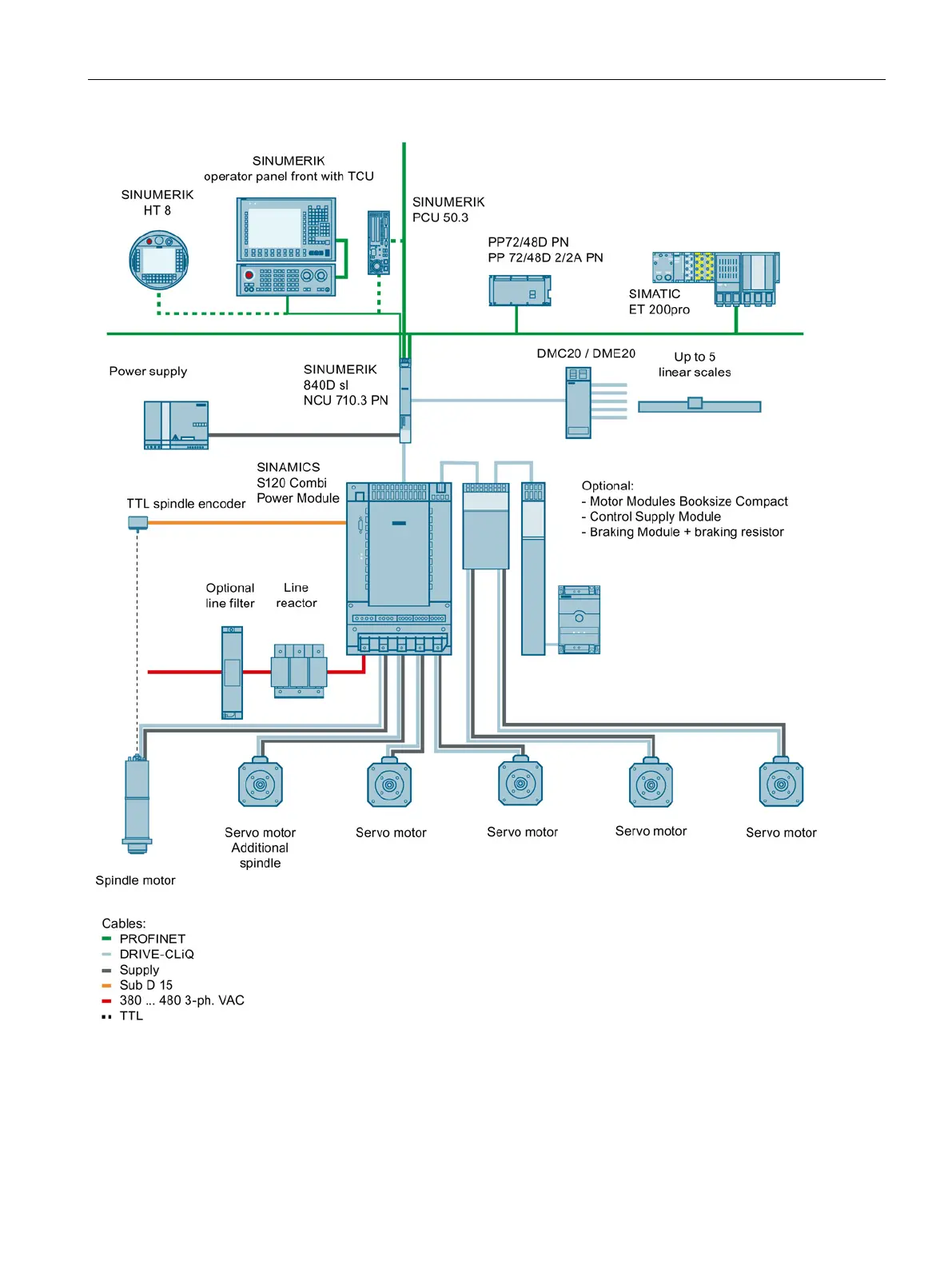

Figure 2-2 Connection example, S120 Combi 4-axis Power Module with 2 expansion axes connected to SINUMERIK
840D sl (maximum expansion stage)
