Line-side power components
3.4 Line supply connection via residual-current devices
SINAMICS S120 Combi
36 Manual, 11/2017, 6SL3097-4AV00-0BP7
The following points must be observed when using a residual current circuit breaker:
● It is only permissible to use a type B delayed tripping, selective AC/DC-sensitive residual
current circuit breaker.
● The loop impedance must comply with local installation regulations.
● The maximum total length of the shielded power cables in the drive line-up (motor cables
incl. line supply cables from the line filter to the connecting terminals of the S120 Combi)
may be no more than 175 m.
● Only recommended line filters must be used in operation.
● Switching elements (disconnector unit, contactors) for connecting and disconnecting the
drive line-up have a maximum 35 ms delay time between closing/opening of the
individual main contacts.

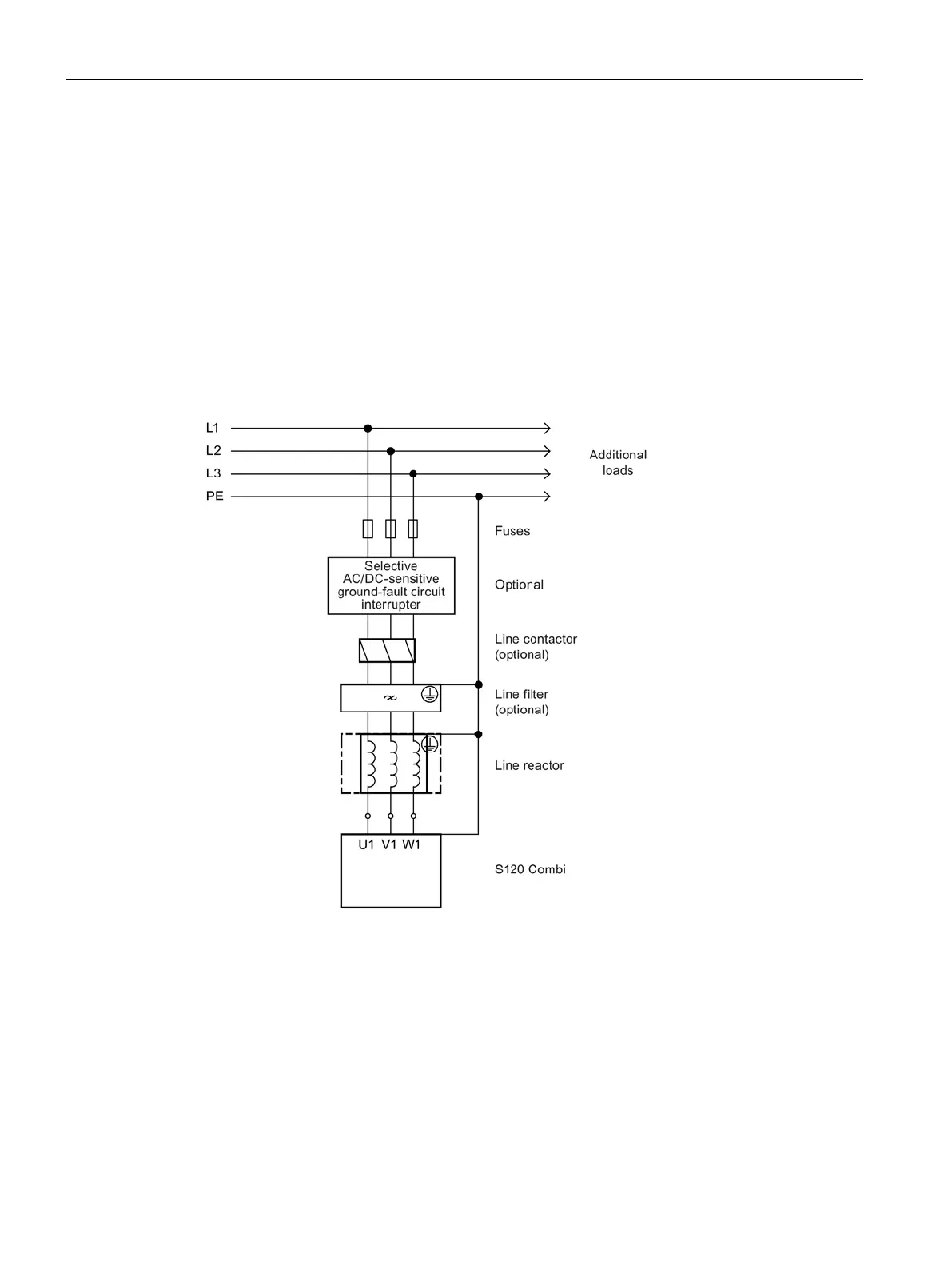

Figure 3-2 Connecting a residual-current operated circuit breaker
