Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
130 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

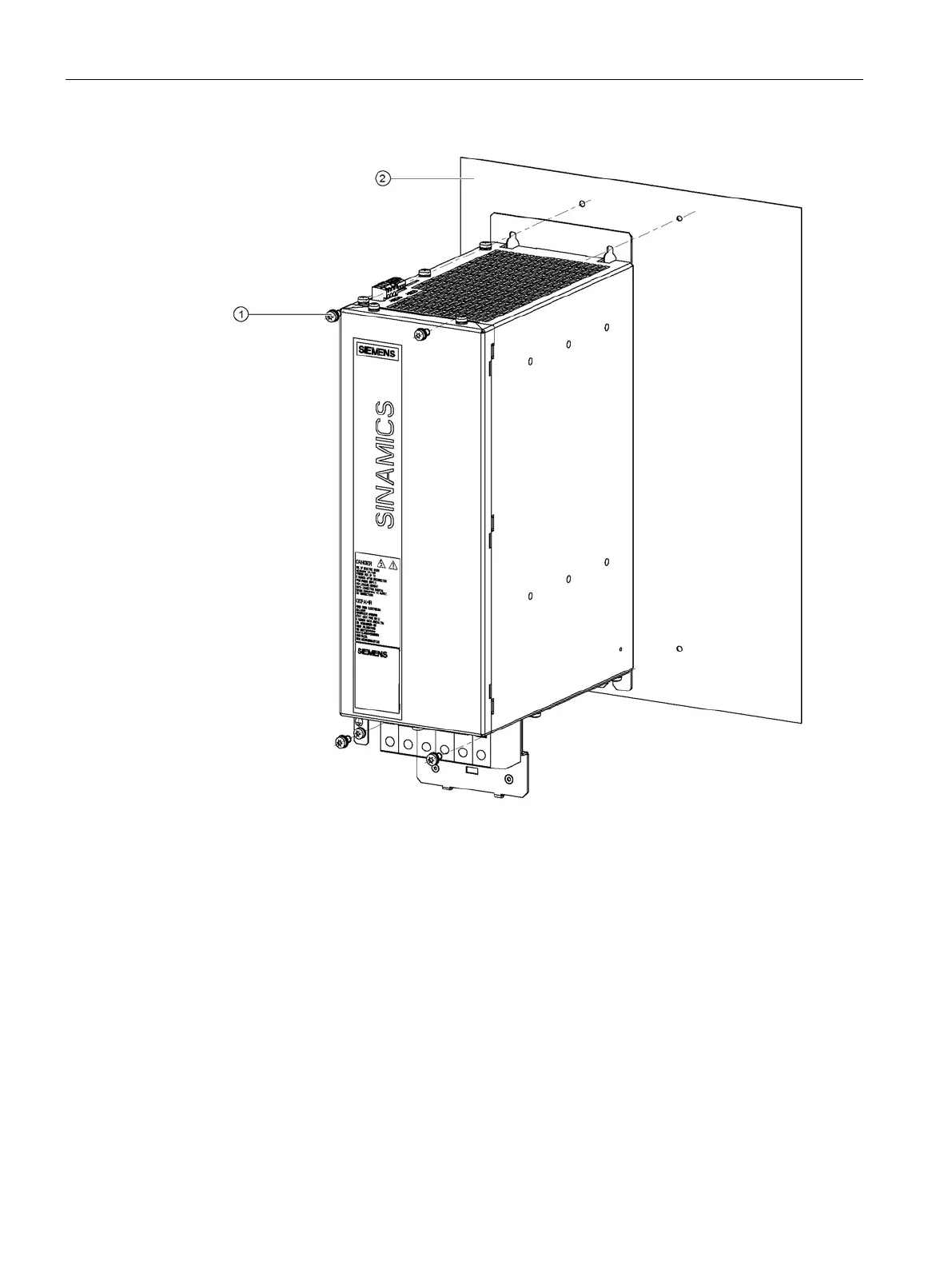

M6 screws, Torx T30 (not hexagon-head screws)
Figure 3-61 Installation of 36 kW Active Interface Module
