Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
185
Help with the mechanical control cabinet design is available from
:
Siemens AG
Digital Factory, DF MC MF - WKC AS
TCCCC (Technical Competence Center Cabinets Chemnitz)
Postfach 1124
09070 Chemnitz
e-mail: cc.cabinetcooling.aud@siemens.com

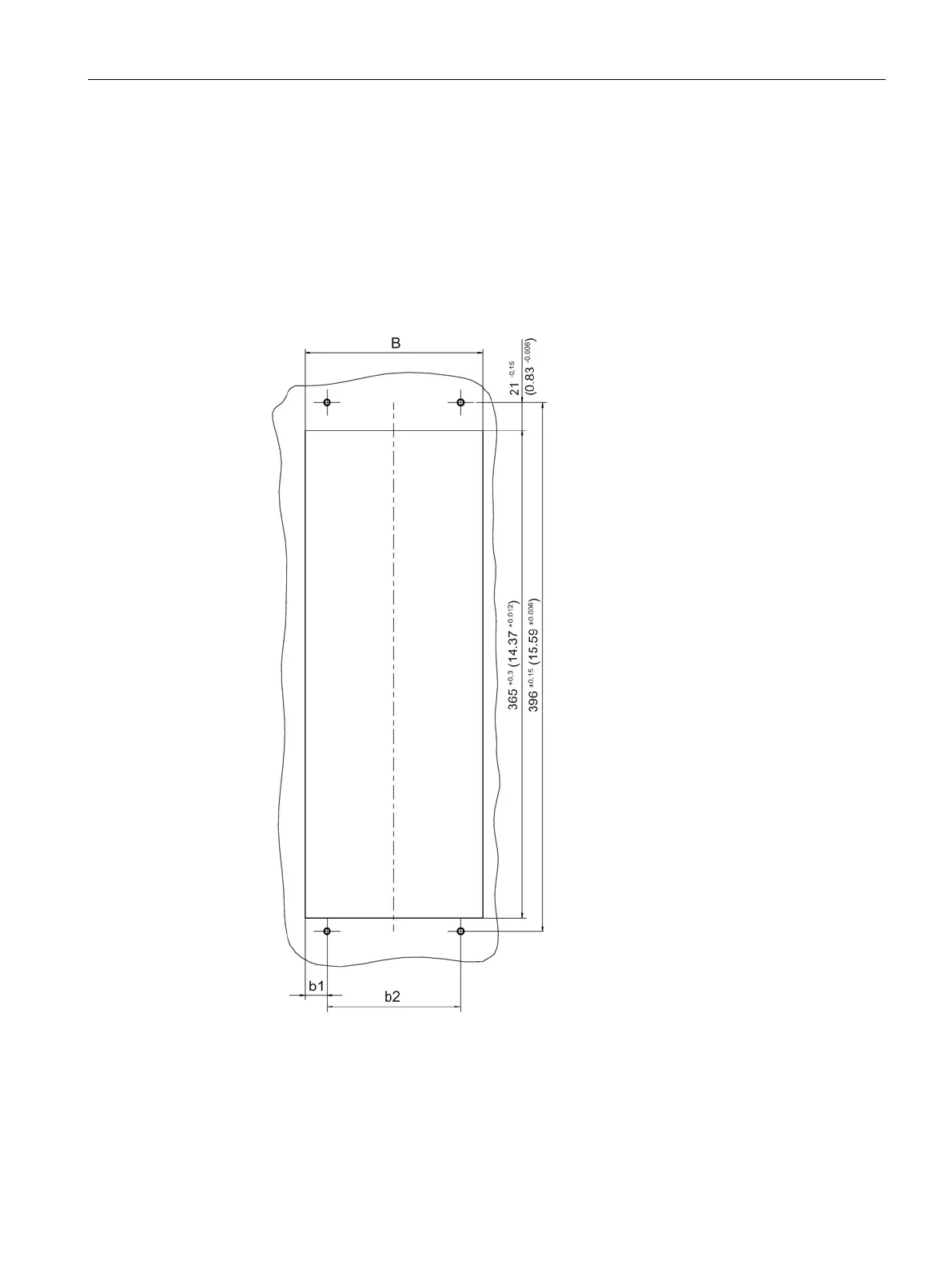

Figure 4-18 Openings to mount Active Line Modules 50 mm to 200 mm with external air cooling, all
data in mm and (inches)
