Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
186 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
①
Insert plate or mounting plate
②
Cross-piece
③
Reinforcing bracket

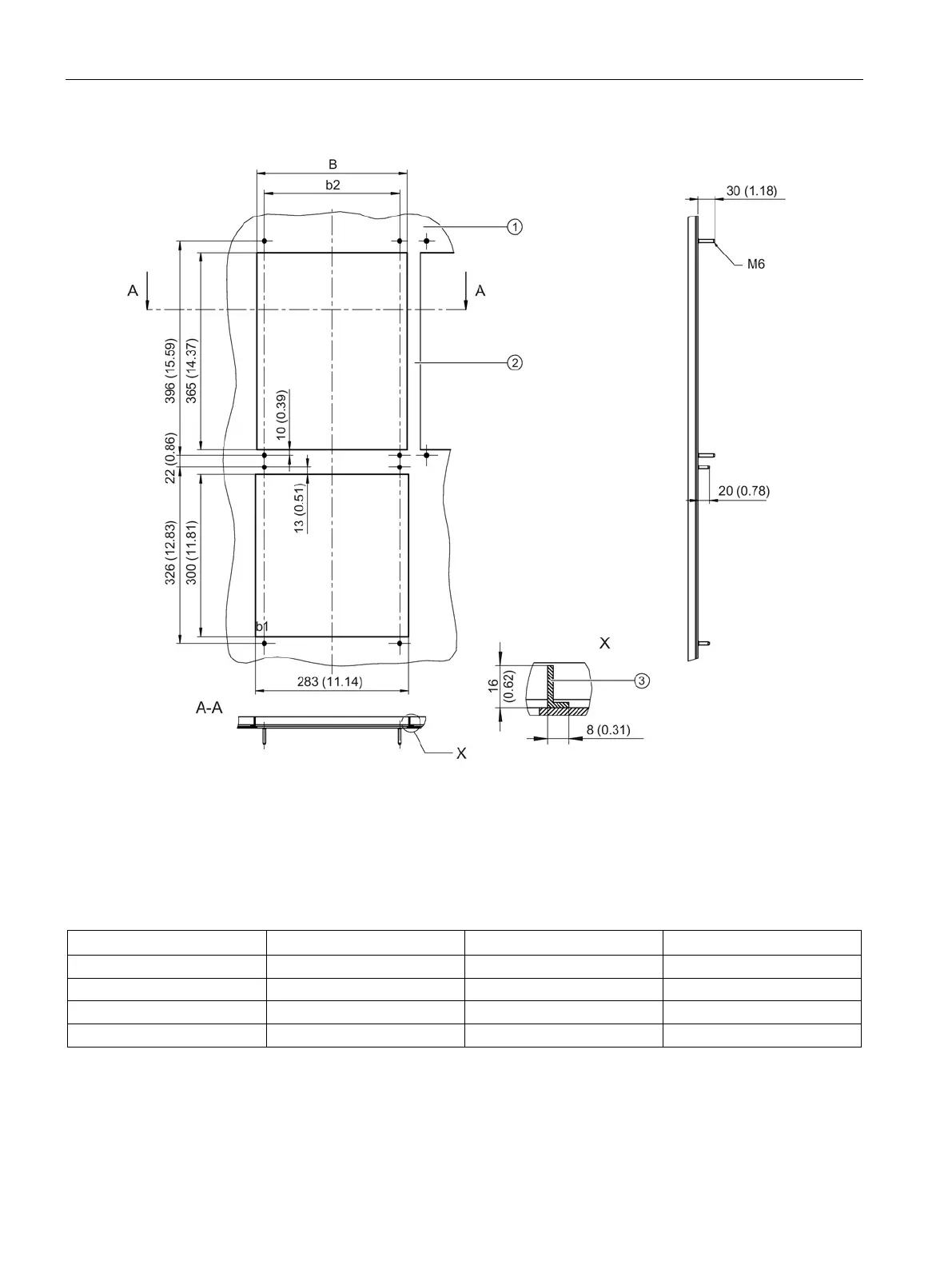

Figure 4-19 Openings to mount an Active Line Module 300 mm with external air cooling, all data in mm and (inches)
Table 4- 21 Dimensions of openings to mount Active Line Modules with external air cooling
Component width
B [mm] (inch)
b1 [mm] (inch)
b2 [mm] (inch)
100 mm
89.5
+0.3
(3.52
+0.012
)
19.75
+0.15
(0.78
+0.006
)
50
±0.15
(1.97
±0.006
)
150 mm
133
+0.3
(5.24
+0.012
)
16.5
+0.15
(0.65
+0.006
)
100
±0.15
(3.94
±0.006
)
200 mm
173
+0.3
(6.81
+0.012
)
11.5
+0.15
(0.45
+0.006
)
150
±0.15
(5.91
±0.006
)
300 mm
278
+0.3
(10.94
+0.012
)
14.0
±0.15
(0.55
±0.006
)
250
+0.15
(9.84
+0.006
)
