Procedure

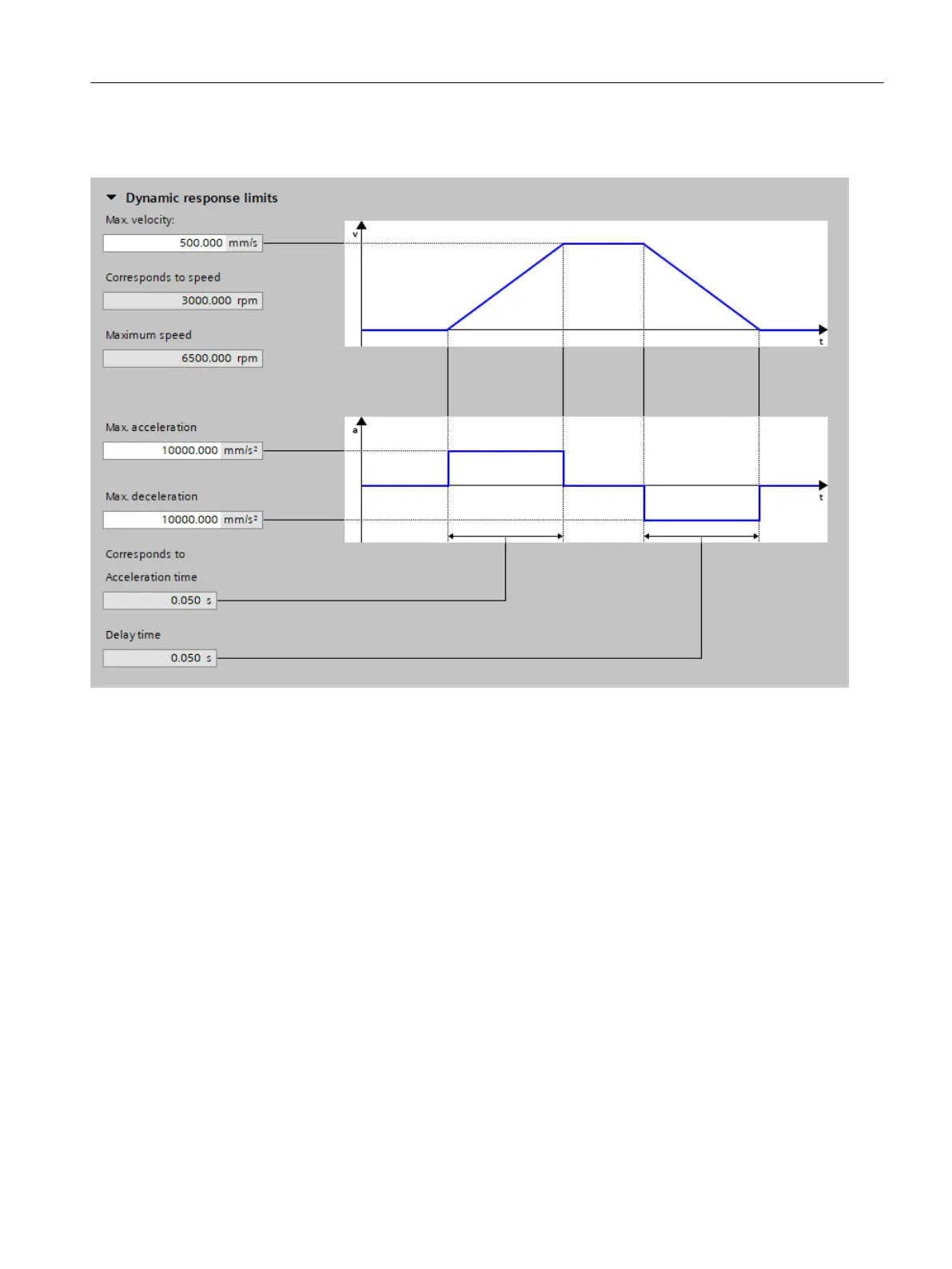

Figure8-7 Specifying the maximum traversing prole limitation
S
tep 1: Specifying the maximum traversing prole limitation
Pr
oceed as follows to specify the maximum traversing prole limitation
1. Correct the specied value for the maximum velocity in the "Max. velocity" eld.
The maximum velocity denes the maximum travel velocity. A change immediately limits the
velocity of an active traversing block.
The "Corresponds to speed" eld displays the converted speed, the "Maximum speed" eld
displays the maximum speed.
The limitation acts when positioning (jogging, processing the traversing blocks, direct
setpoint input, home position approach).
2. Correct the specied value for the acceleration at "Max. acceleration".
The "Corresponds to Acceleration time" eld displays the converted acceleration time.
3. Correct the specied value for the deceleration at "Max. deceleration".
The "Delay time" eld displays the converted deceleration time.
The maximum acceleration and maximum deceleration specify the maximum acceleration
for increasing the velocity and the maximum deceleration for reducing the velocity. Both
values act when positioning (jogging, processing the traversing blocks, direct setpoint input,
home position approach).
4. Save the settings.
Commissioning (Startdrive)
8.6Carrying out guided quick startup
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 263
