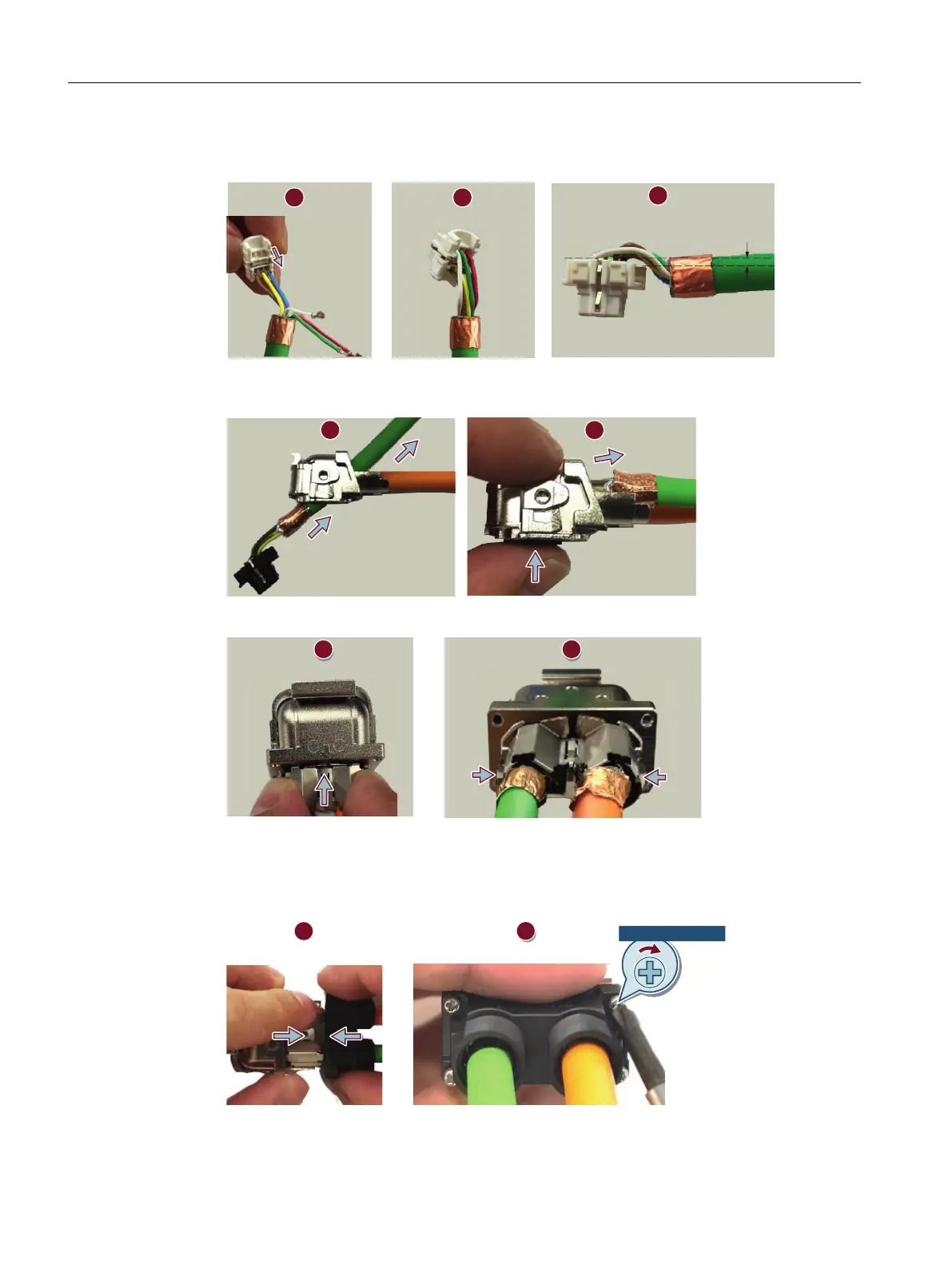

8. Insert the signal contacts into the signal unit case and adjust the conductors to make sure
that the cable does no
t rise up.
9. Insert the signal and the power unit cases into the housing by pulling the cables back.
Make sure t
hat the signal and the power unit cases are latched to the housing.
10.Insert the shield holding plate into the housing.
11.Assemble the housing and the seal case.
–
Hold t
he shield holding plat
e and slide the seal case to the housing.
– Tighten the M2 screws with a tightening torque of 0.18 Nm ± 0.01 Nm.
D
E
1P1P
Appendix
A.4î™ Assembling cables
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
890 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
