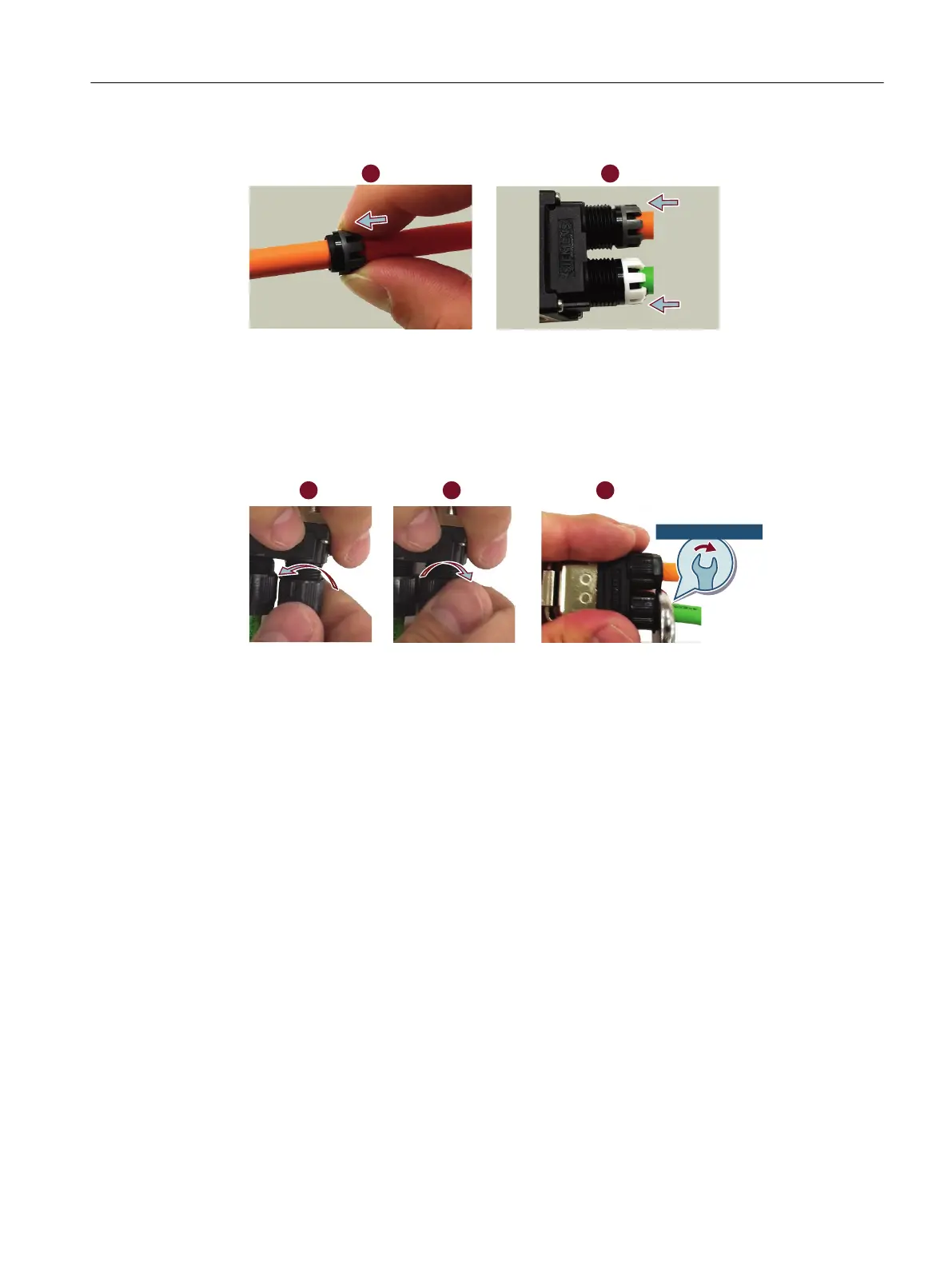

12.Insert the gaskets and the clamps to the seal case.
DE
13.Tighten the caps.
– Rot
ate the caps in the counterclockwise direction to match the threads of the seal case
and the caps.
– Rotate the caps in the clockwise direction.
– Tighten the caps by wrench with a tightening torque of 1.5 Nm ± 0.01 Nm.
1P1P
DFE
More information
For mor
e information about connecting the converter and the motor, see Section "Connecting
the motor (Page135)".
A.4.2.2 Disassembling the hybrid plug for 1FL2 motors, shaft heights 20, 30, and 40
Requirement
You have prepared the following items:
• Assembled Siemens hybrid plug
• Pin removal tool
• Screwdriver
Appendix
A.4Assembling cables
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB 891
