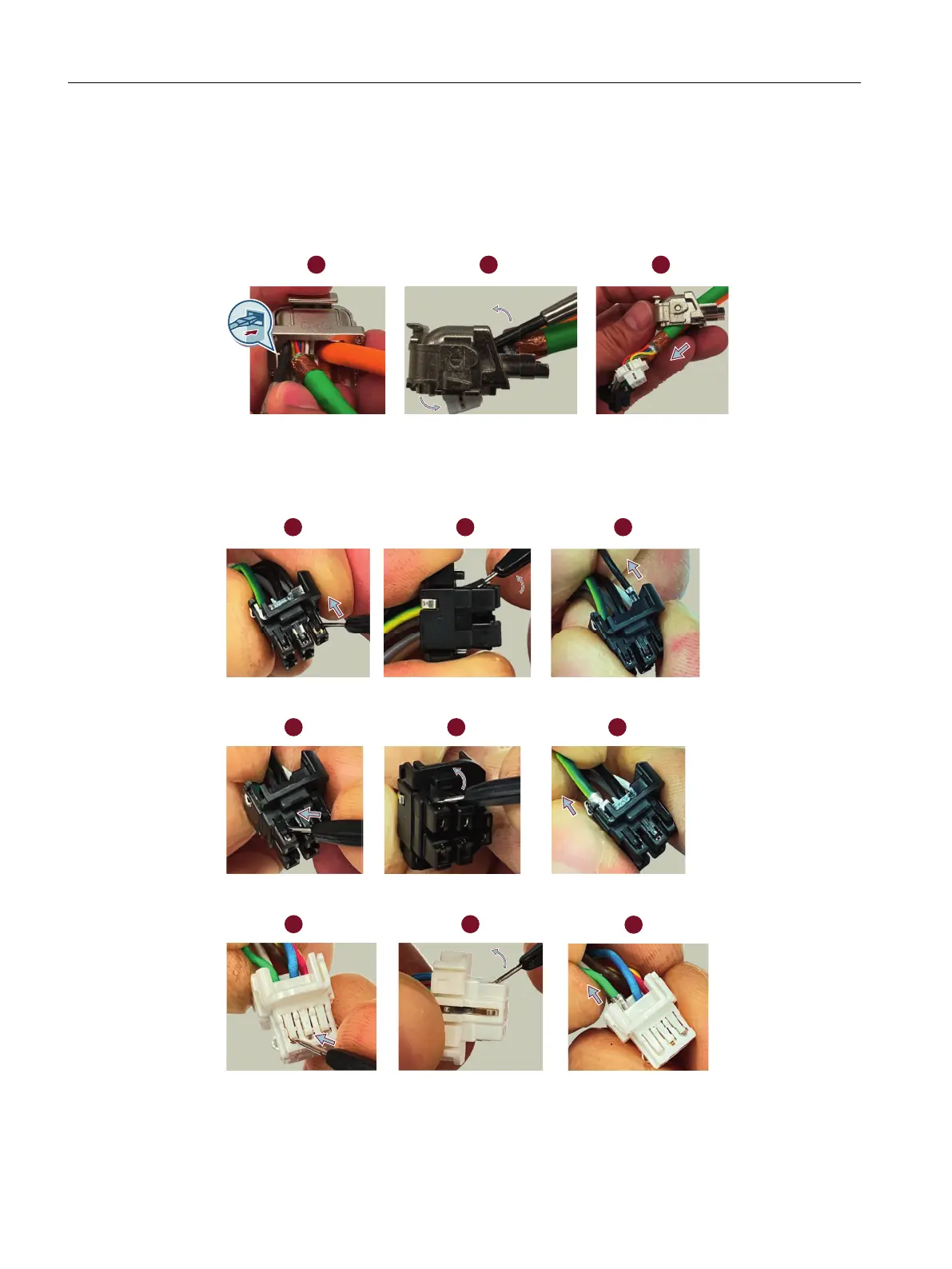

Procedure
1. Remove the signal and the power unit cases from the housing.
– Insert the screwdriver into the unit cases from the side of the cable outlet.
– Press down the tip of the screwdriver to remove the unit cases from the housing.
2. Remove the hybrid brake contacts from the power unit case.
– Insert t
he tip of the pin removal tool into the gap between the contact and its latch.
– Lift up the latch and pull out the contact.
3. Repeat Step 2 to remove the hybrid power contacts from the power unit case.
4. Repeat Step 2 to remove the hybrid signal contacts from the signal unit case.
Appendix
A.4î™ Assembling cables
SINAMICS S200 PROFINET servo drive system with SIMOTICS S-1FL2
892 Operating Instructions, 11/2023, FW V6.3, A5E51646752B AB
