Section 03 ENGINE
Sub-Section 09 (CARBURETOR AND FUEL PUMP)
03-09-8
CHOKE
Touring E / E LT / LE / SLE, Skandic 380 / 500
and Formula SL

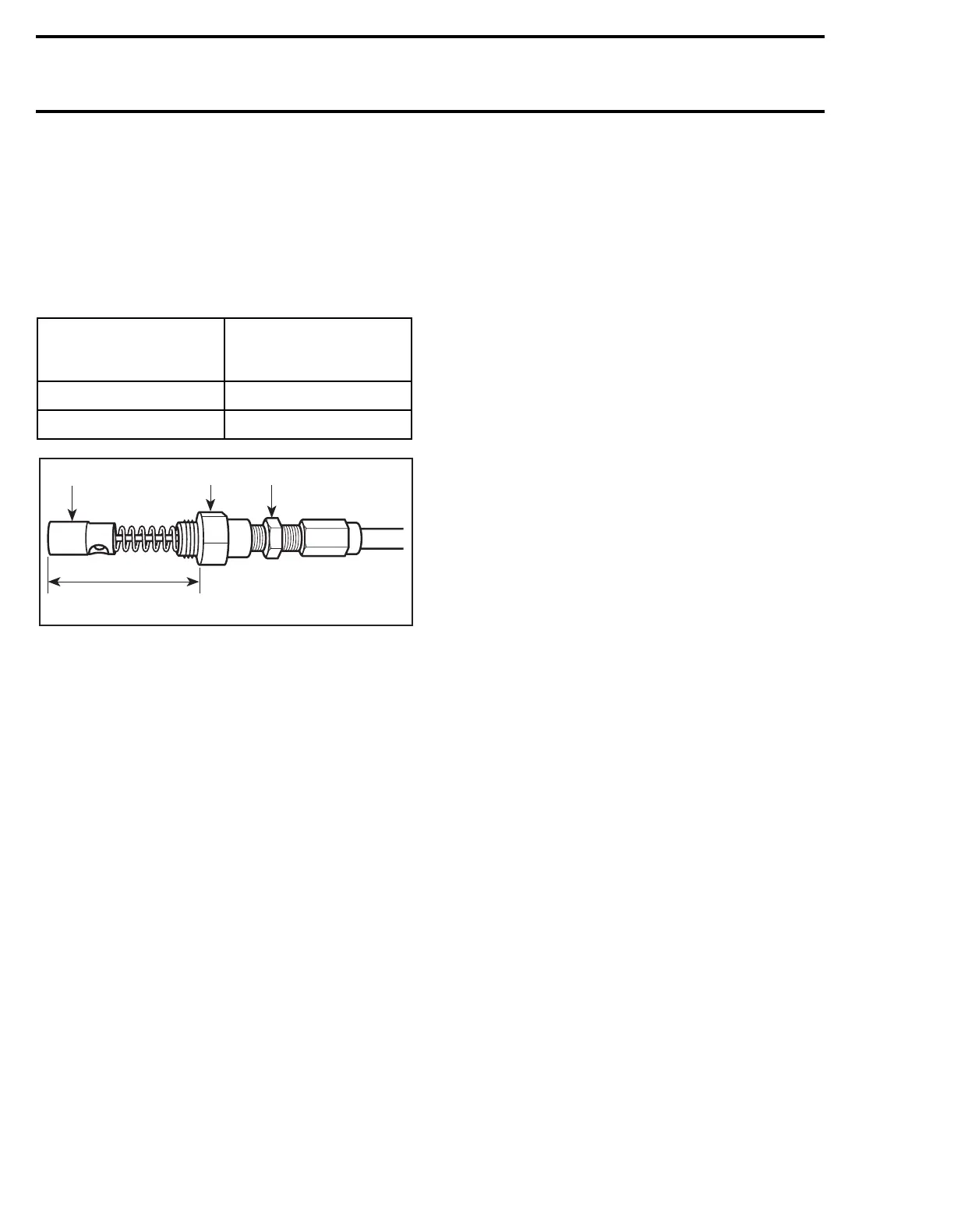

Choke Plunger Adjustment
Adjust cable length to obtain the following
plunger / adaptor distance. Retighten lock nut.
1. Plunger
2. Adaptor
3. Lock nut
4. Distance
The above adjustment can be easily checked with
a service tool which is not available at time of
printing.
CARBURETOR
PLUNGER / ADAPTOR
DISTANCE
±
0.3 mm (
±
.012 in)
PTO 32.5 (1.280)
MAG 31.3 (1.232)
A06C25A
1 2 3
4
