Section 07 STEERING/FRONT SUSPENSION
Sub-Section 03 (SUSPENSION AND SKI SYSTEM)
07-03-2
DISASSEMBLY
5, Shock
Lift front of vehicle and support it off the ground.
Reduce spring preload by turning adjusting ring
accordingly with the adjustment wrench in vehi-
cle tool box.

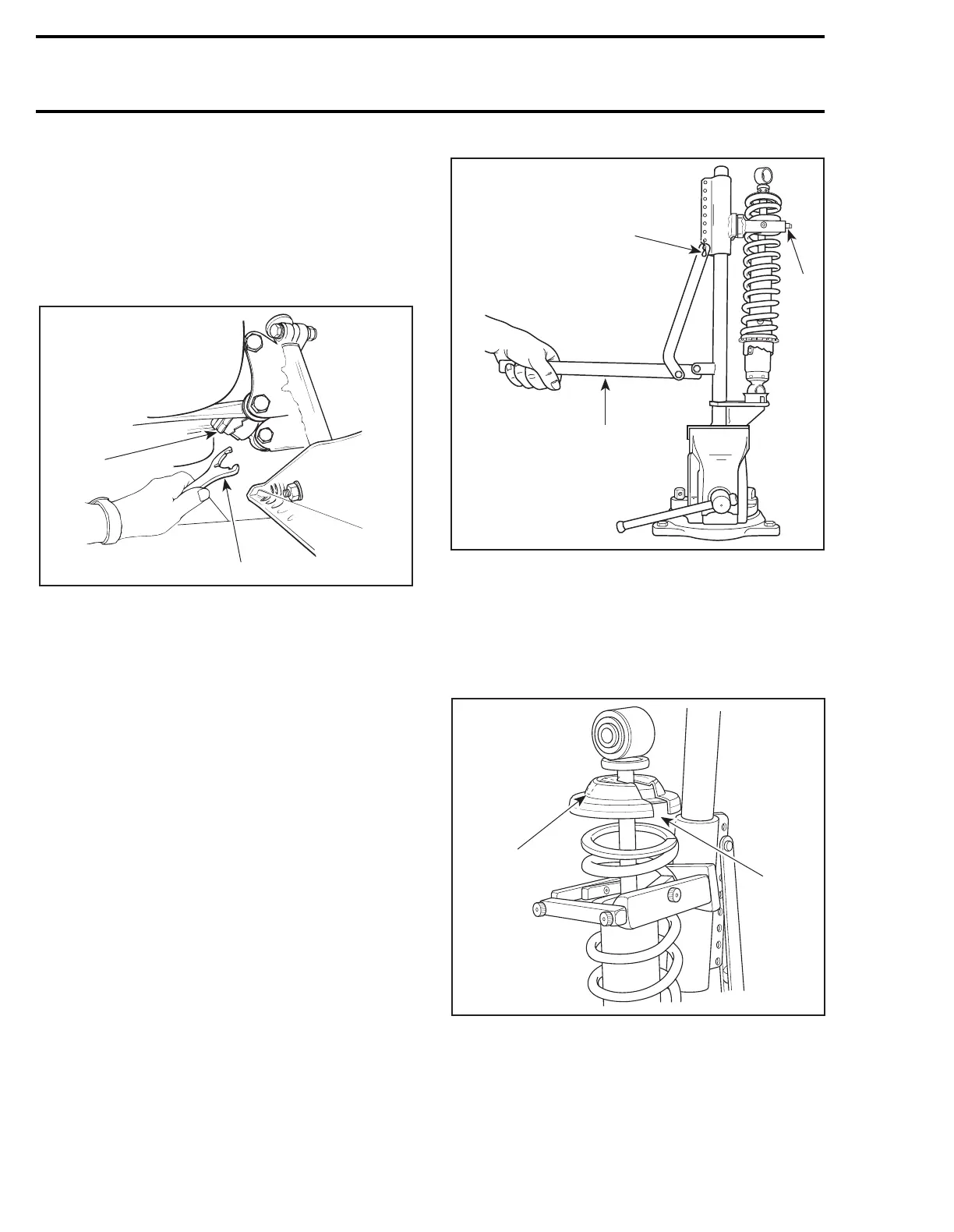

TYPICAL
1. Shock cam
2. Adjustment wrench
Remove lower bolt then upper bolt of shock.
For shock spring disassembly use shock spring
remover (P/N 529 0271 00) in a vise. Mount shock
in it and turn shock so that spring coils matched
spring compressor.
Close and lock the bar. Adjust the handle horizon-
tal position by changing the position of the clevis
pin.
1. Clevis pin
2. Bar
3. Handle horizontal
Push down on the handle until it locks. Remove
spring stopper and cap then release handle.
When installing the cap opening must be 180°
from the spring stopper opening.
1. Cap opening
2. Spring stopper opening
A06G0AA
1
2
1
A01B4LA
2
3
A03F12A
1
2
