Section 06 REAR SUSPENSION
Sub-Section 05 (TRACK)
06-05-4

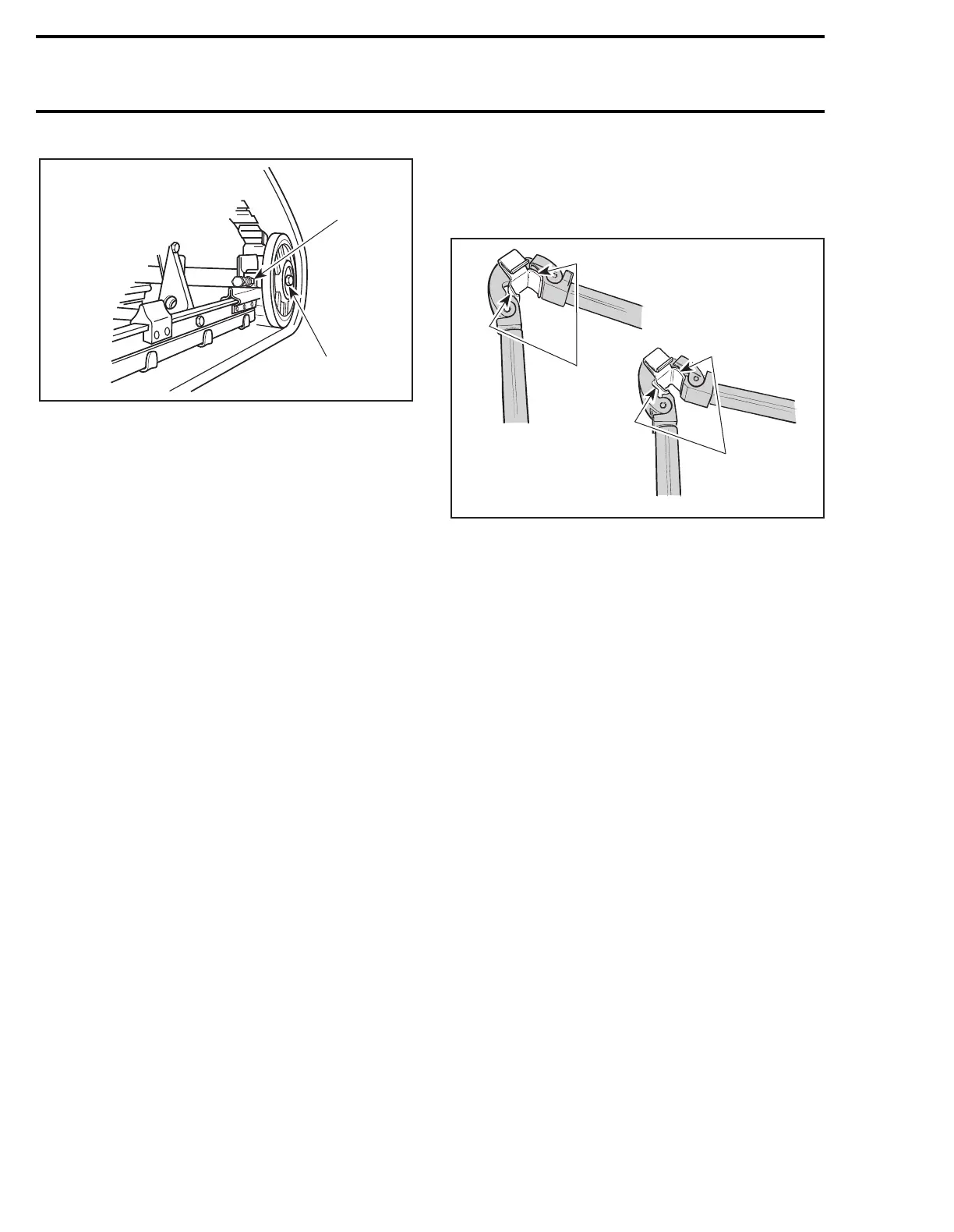

TYPICAL
1. Retighten (except S-Series)
2. Retighten
Restart engine, rotate track
slowly
and recheck
alignment.
TRACK CLEAT
Removal
– Raise rear of vehicle off the ground and lift
snow guard then rotate track to expose a cleat
to be replaced.
– Using track cleat remover (P / N 529 0082 00)
for Tundra II LT. Use (P / N 529 0087 00) for all
other models.
Installation
NOTE :
Keep the same pitch between guide
cleats.
– Place new cleat in position and using small
track cleat installer (P / N 529 0085 00) or large
cleat installer (P / N 529 0288 00) bend cleat
then push tabs into rubber.
TYPICAL
1. First step
2. Second step (to push tabs into rubber)
1
2
A05F0EB
A01B4UA
1
2
