DRIVE BELT 0
1997 APPLICATION CHART
ROTATION DIRECTION
The maximum drive belt life span is obtained
when the drive belt is installed as shown. This will
ensure that correct direction of rotation is respect-
ed.

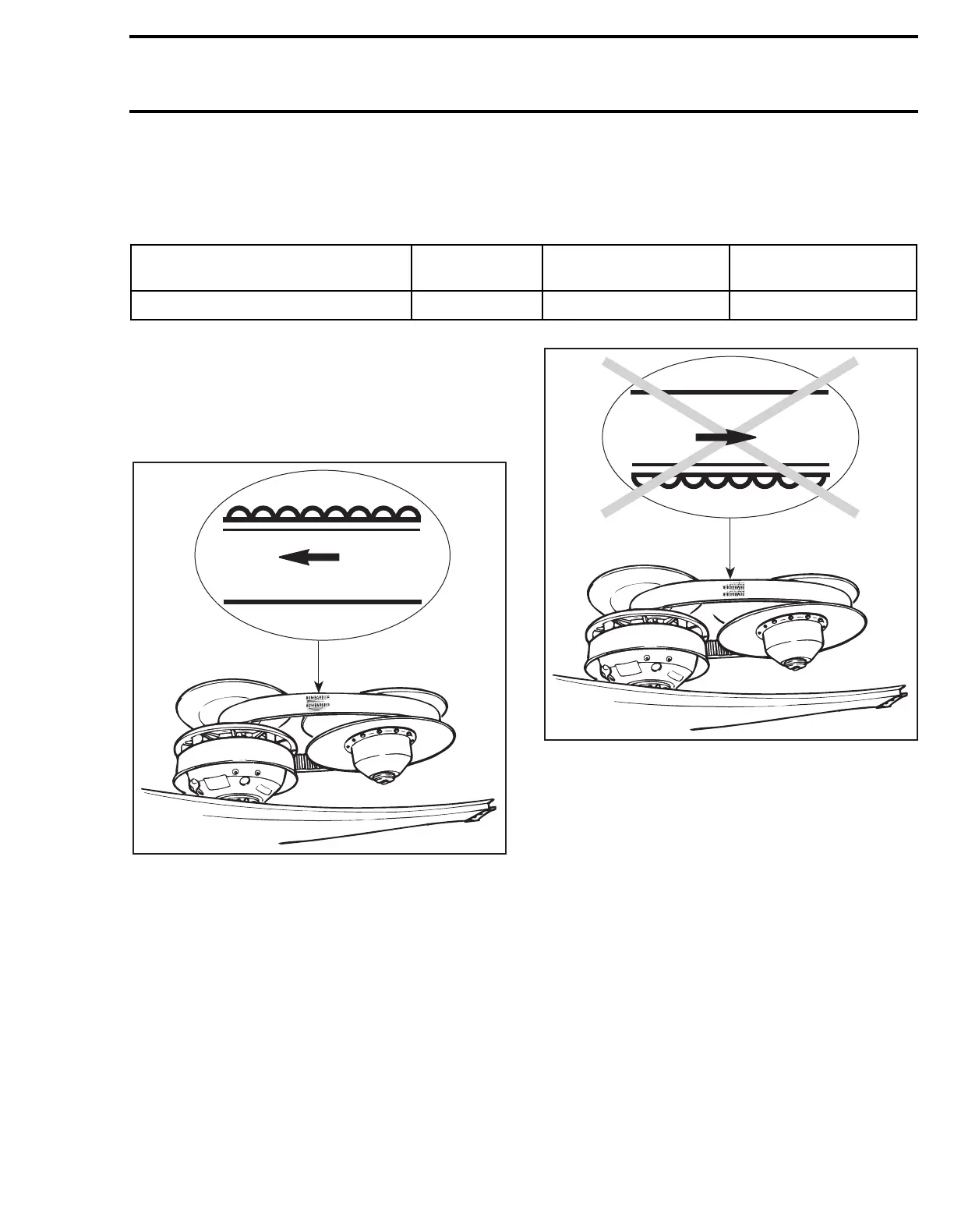

CORRECT
INCORRECT
NOTE:
For used drive belt, mark and reinstall in
the same position.
MODEL
PART
NUMBER
WIDTH (NEW)
±
0.25 mm (.010 in)
MINIMUM WIDTH
(WEAR LIMIT)
FORMULA III/III LT, MACH 1/Z/Z LT 415 0603 00 35 mm (1-3/8’’) 33 mm (1-19/64’’)
