Section 03 ENGINE
Sub-Section 09 (CARBURETOR AND FUEL PUMP)
03-09-11
Fuel pump components should be cleaned in gen-
eral purpose solvent and dried with compressed
air.
WARNING : Solvent with a low flash point
such as gasoline, naphtha, benzol, etc.,
should not be used as each is flammable and
explosive.
Inspect diaphragm. The pumping area should be
free of holes, tears or imperfections. Replace as
needed.
High-supply pump with twin outlets :
Thoroughly
clean filter on top cover. Replace filter if neces-
sary.
ASSEMBLY

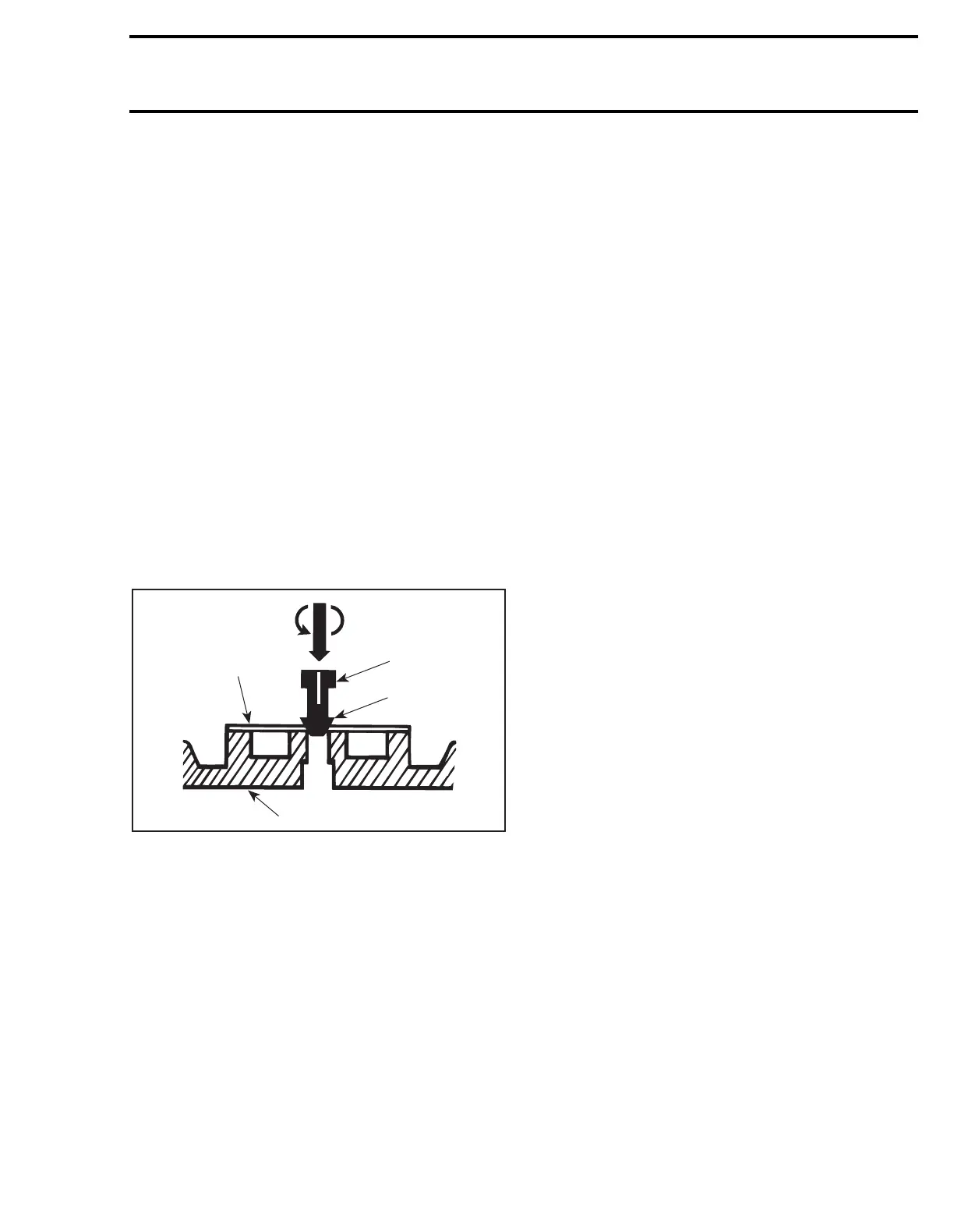

To install a new valve, proceed as follows :
– Place new valve flat on its seat.
– Slightly oil taper tip of grommet.
– Push grommet with a rotational movement un-
til it crosses its housing.
1. Valve
2. Grommet
3. Lubricate tip
4. Pump body
When assembling pump, ensure to properly posi-
tion stages together. Refer to previous illustra-
tions if necessary.
INSTALLATION
To install, inverse removal procedure.
WARNING : Pressure test to ensure there
is no leak in fuel system.
;
A00C3EA
1
2
3
4
;
