Section 06 REAR SUSPENSION
Sub-Section 04 (DRIVE AXLE)
06-04-8
3, Retainer Ring
Make sure that welded nuts are toward inside of
tunnel.
Lock drive axle sprocket with a circlip.
Reinstall the chaincase cover (if applicable).
Refill with chaincase oil.
Install the suspension. Refer to TRACK 06-05 and
adjust track tension and carry out track alignment
procedure.
LUBRICATION
15, Grease Fitting
Lubricate end housing bearing with low tempera-
ture grease (P / N 413 7061 00).
ADJUSTMENT
Sprocket / Track Alignment
CAUTION : Do not temper with sprocket /
track alignment if frame or suspension is
damaged.
Sprockets might be repositioned to fit track holes
(lugs on S-Series) without removing drive axle.

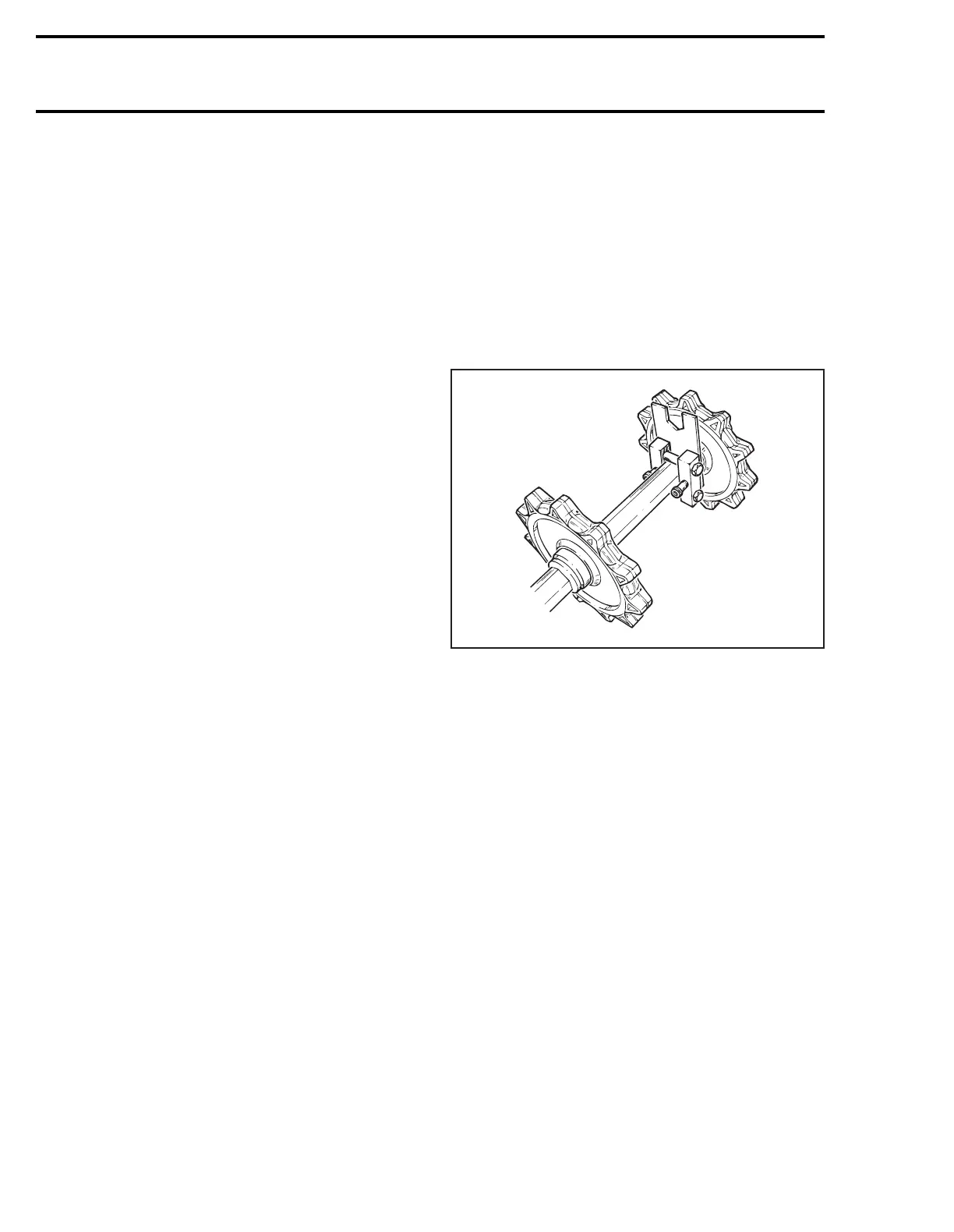

Use drive axle sprocket adjuster kit (P / N 861
7257 00).
TYPICAL
A01B2PA
