Ski-Doo TOURING E LT 1997 - Assembly; Installation

Section 04 TRANSMISSION
Sub-Section 06 (BRAKE)
04-06-4

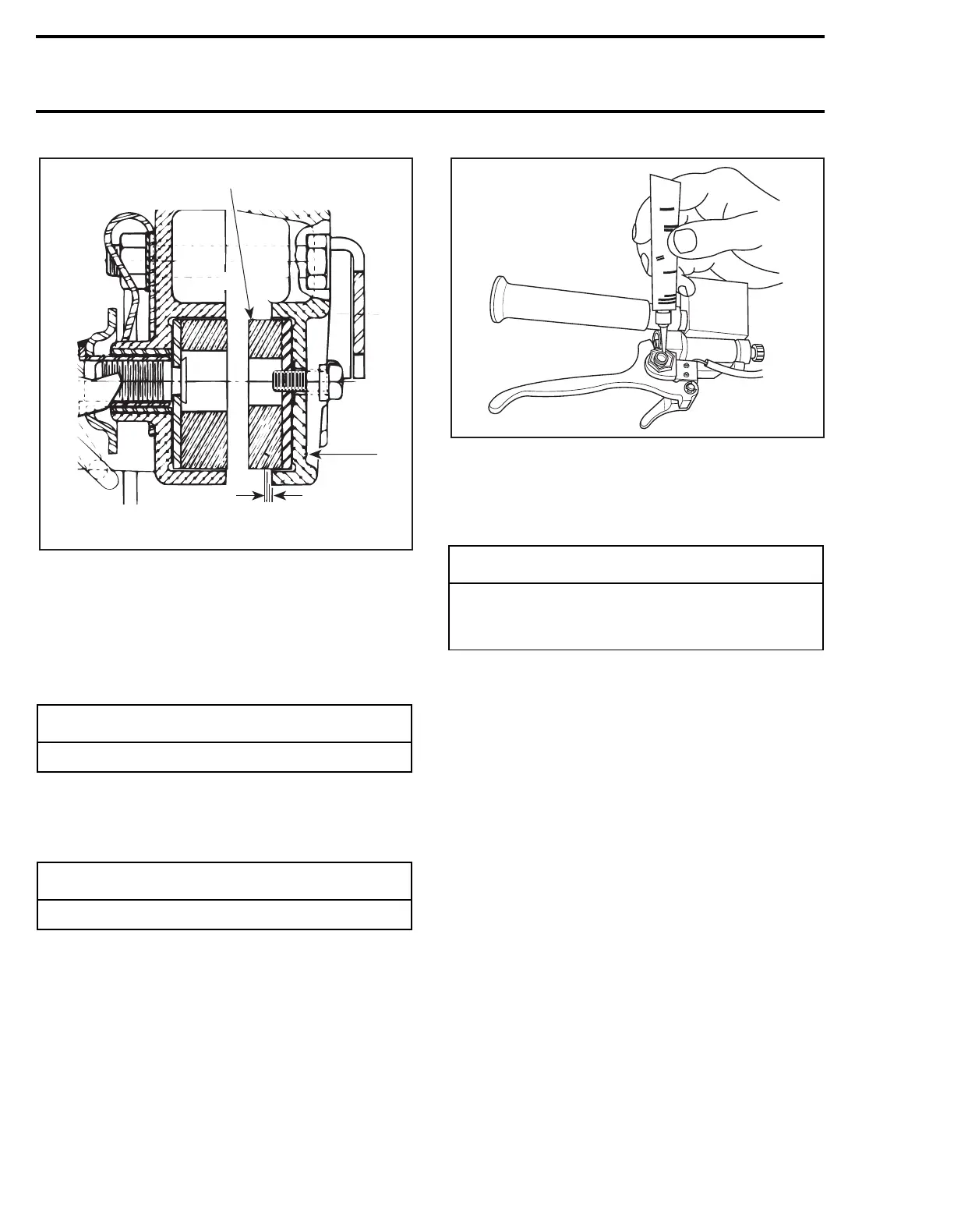

TYPICAL
1. Fixed pad
2. Inner caliper
A. 1 mm (1/32 in) minimum
17, Brake Disc
Check for scoring, cracking or heat discoloration,
replace as required.
ASSEMBLY
24, Brake Lever Lock Nut
Tighten nut to 3.0 N•m (27 lbf•
in
). Check free
movement of brake lever.
Apply Loctite Black Max Gel (Loctite item no.
18398) over nut and on bolt threads.
INSTALLATION
To install brake, reverse removal procedure paying
attention to the following.
7, Brake Pad
All Models with Hydraulic Brake
After brake pads installation, brake disc must be
centered in caliper. Apply brake then check for
proper brake disc positioning.
Push on appropriate caliper piston in order to
move pad inward allowing proper brake disc posi-
tioning.
-
CAUTION
Brake disc should never be machined.
◆
WARNING
Always install a new nut when servicing.
A15D03A
A
2
1
◆
WARNING
Avoid getting oil on brake pads. Do not lubri-
cate or apply antirust or antifreeze solution
in brake cable.
TITE
CK
X
A06D15A
