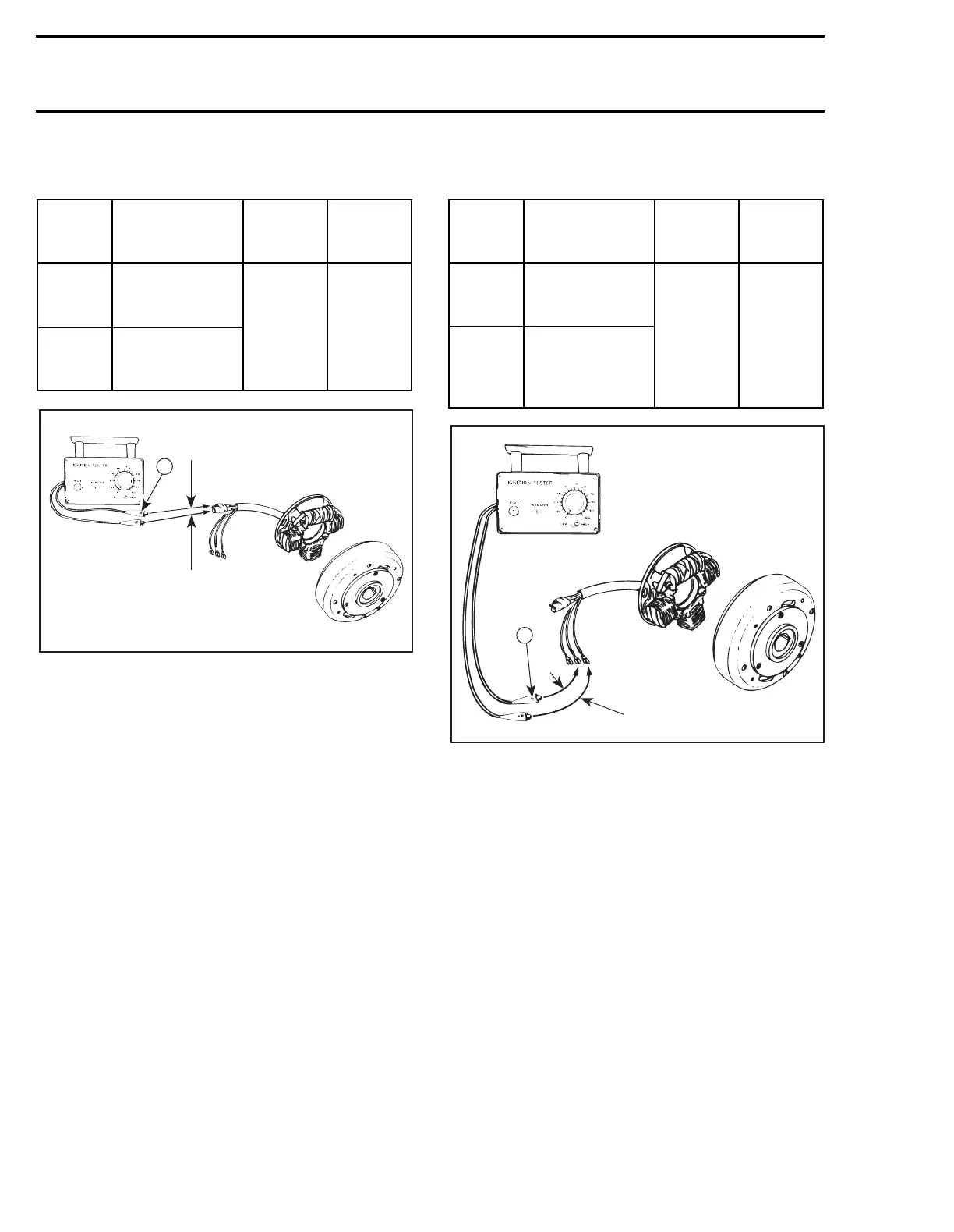

2. Connect tester wires then set switch and dial
as follows :
1. Black
/
Red
2. Black
3. Crank engine and observe indicator.
4. Push reset button and repeat step 3 twice.
Results :
a.
Indicator lamp lights :
Ignition generator coil
output is up to specifications.
b.
Indicator lamp does not light :
The problem is
a faulty ignition generator coil.
LIGHTING GENERATOR COIL
OUTPUT
NOTE :
The lighting generator coil is not part
of the ignition system. It is a separate sys-
tem that supplies current to the lighting system
and AC-powered devices. However it can be test-
ed with the same tester.
1. Disconnect wiring harness junction block at en-
gine (the one with YELLOW and YELLOW /
BLACK wires).
2. Connect tester wires then set switch and dial
as follows :
TYPICAL
1. Yellow
2. Yellow / Black
3. Crank engine and observe indicator.
4. Push reset button and repeat step 3 twice.
Results :
a.
Indicator lamp lights :
Lighting generator coil
output is up to specifications.
b.
Indicator lamp does not light :
Lighting gen-
erator coil is faulty.
Tester
wires
Component
wires
Tester
switch
position
Tester
dial
position
N
BLACK
/
RED
wire of
magneto harness
LOW 85
P
BLACK
wire of
magneto harness
A22E0CA
N
1
2
'
Tester
wires
Component
wires
Tester
switch
position
Tester
dial
position
N
YELLOW
wire of
magneto harness
LOW 70
P
YELLOW
/
BLACK
wire of
magneto harness
N
A22E0DA
2
1
