GENERAL
The following chart gives the engine types with
their implemented system.
CDI System Identification
Nippondenso
The NIPPONDENSO CDI system has a separate
ignition coil which is mounted on the reservoir
cluster.
1. Ignition module is connected to the ignition
generator coil via a 3-wire connector (RED,
BLACK/RED and BLACK wires).
583 Engine
Ignition module stamped P/N: 070000-2421
Ignition coil stamped P/N: 129700-2982
Flywheel stamped P/N: 032000-7860
454, 494 and 670 Engines
Ignition module stamped P/N: 070000-2421
Ignition coil stamped P/N: 129700-2982
Flywheel stamped P/N: 032700-5900
➀

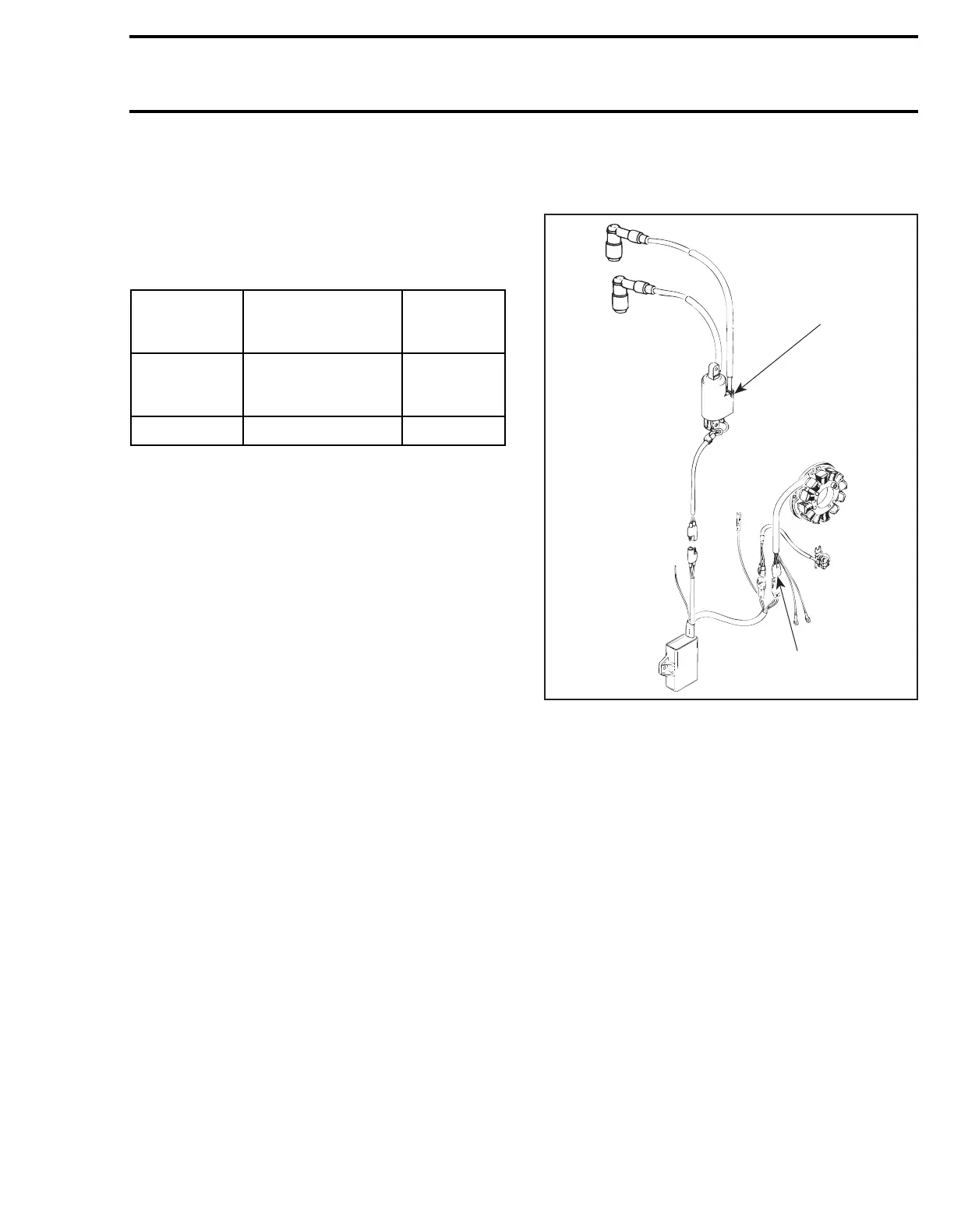

NIPPONDENSO CDI TRIGGER COIL SYSTEM
1. Separate ignition coil mounted on reservoir cluster
2. Three-wire connector (RED, BLACK/RED and BLACK)
Ducati
The DUCATI CDI system has a combined ignition
module/ignition coil which are mounted on oil res-
ervoir support.
2. Ignition module is connected to the ignition
generator coils via a 2-wire connector (GREEN
and WHITE wires).
ENGINE
TYPE
IGNITION
SYSTEM
CHARGING
SYSTEM
OUTPUT
454, 494, 583
and 670
➀
NIPPONDENSO
(CDI)
TRIGGER COIL
220
443 and 503
➁
DUCATI (CDI) 240
A27E02A
1
2
