Section 06 REAR SUSPENSION
Sub-Section 03 (SC-10 SPORT AND TOURING SUSPENSION)
06-03-7

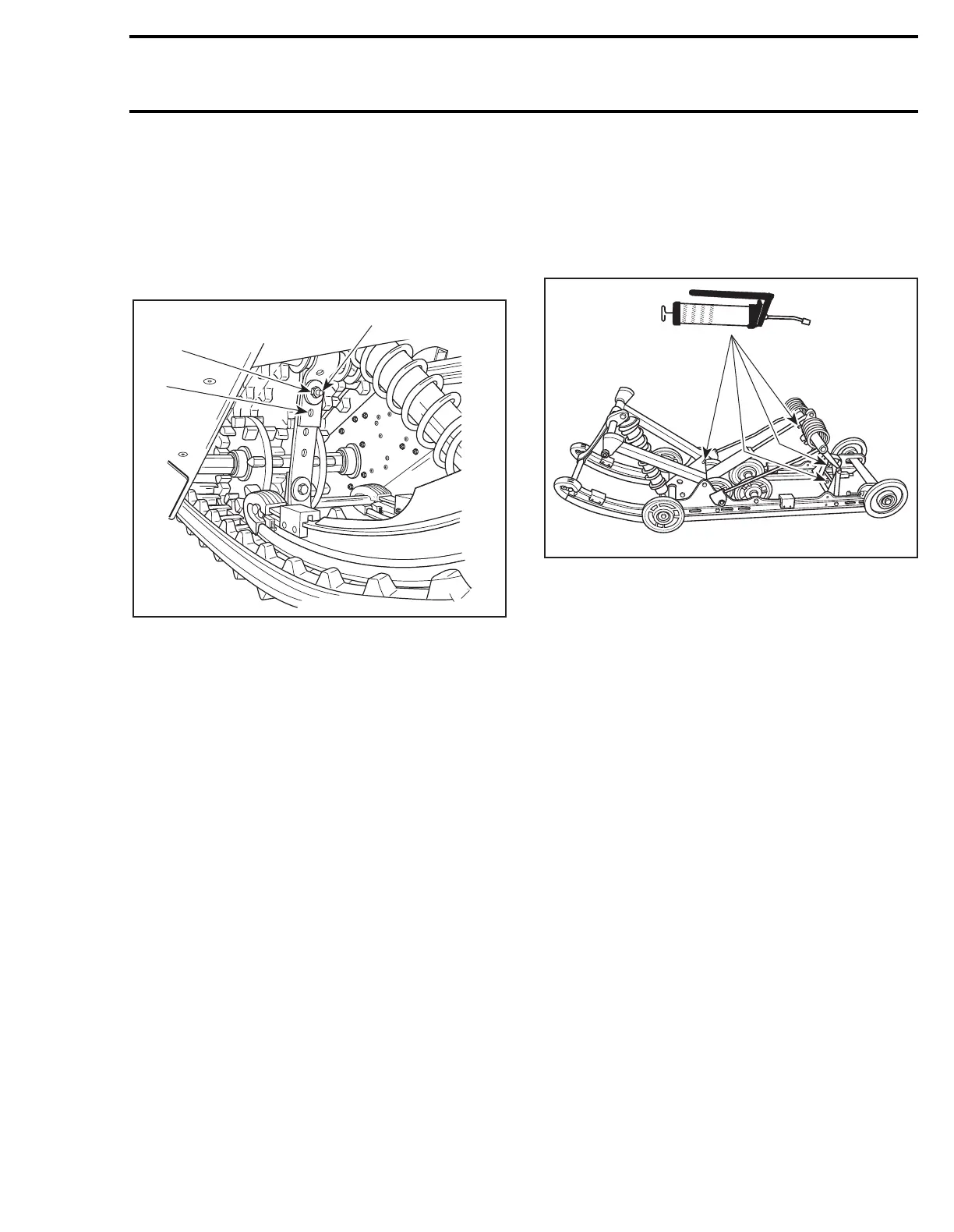

CAUTION : Whenever stopper strap
length is changed, track tension must be
readjusted to prevent any possibility of operat-
ing vehicle with a too loose or too tight track
tension.
For normal use, locate bolt through 2
nd
hole from
strap end.
1. 1
st
hole
2. 2
nd
hole
A. 11 N•m (97 lbf•in)
WARNING : Always torque the nut to 11
N•m (97 lbf•
in
). Replace strap if worn or
torn.
NOTE :
When towing a load, it is suggested
to adjust stopper strap to a shorter length
and stiffen rear springs. These adjustment will im-
prove steering ability.
Deep Snow Operation
When operating the vehicle in deep snow, it may
be necessary to change position of adjustment
cams, stopper strap and / or driver’s riding posi-
tion, to change the angle at which the track rides
on the snow. Operator’s familiarly with the various
adjustments as well as snow conditions will dic-
tate the most efficient combination.
LUBRICATION
Lubricate front and rear arms at grease fittings us-
ing low temperature grease (P / N 413 7061 00).
NOTE :
There are 4 grease fittings.
A03F0QA
A
1
2
;
'
A03F10A
