Section 06 REAR SUSPENSION
Sub-Section 03 (SC-10 SPORT AND TOURING SUSPENSION)
06-03-6

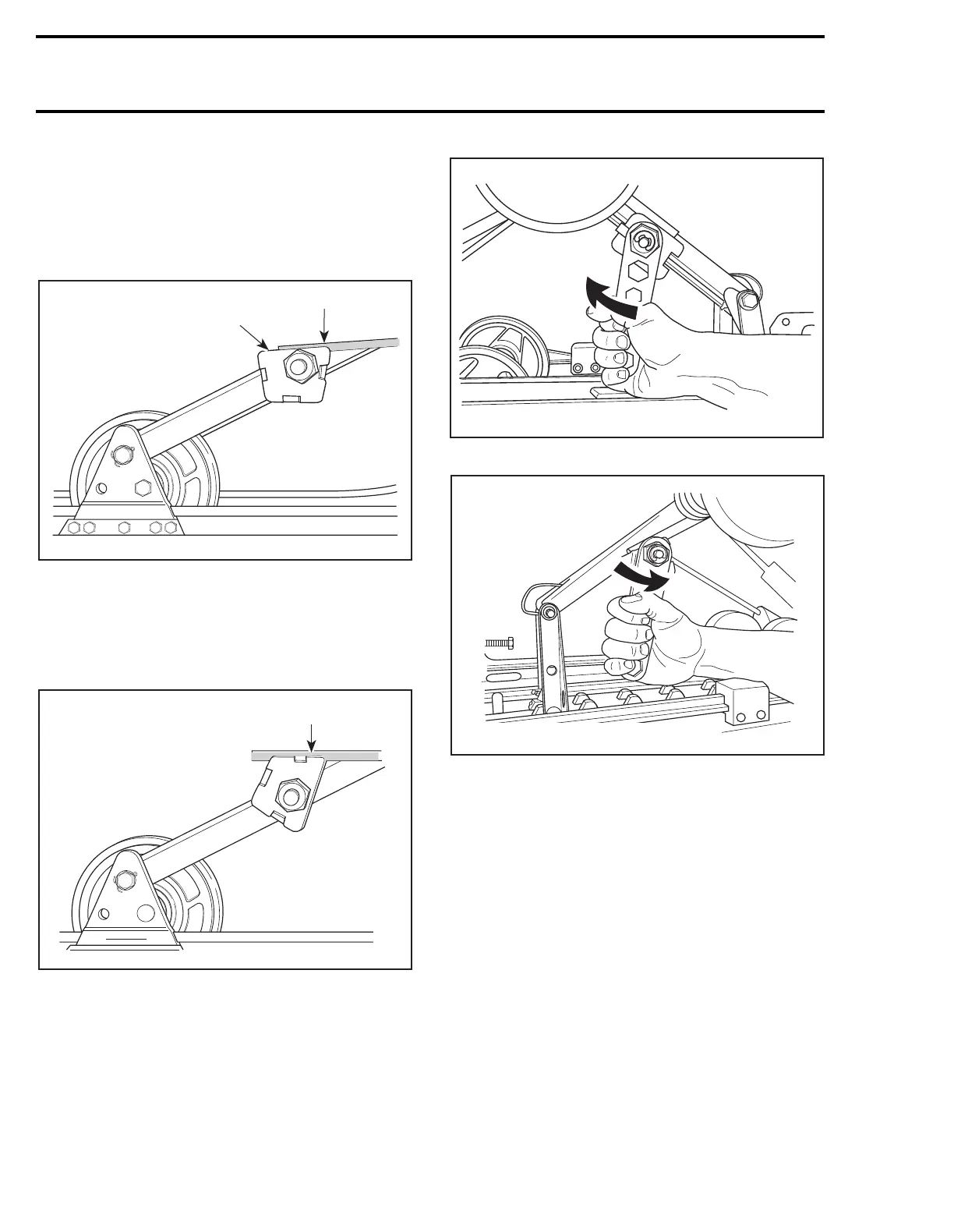

To adjust rear suspension adjustment cams, use
multi wrench supplied in vehicle tool box.
Turning adjustment cam moves edges of cam
supporting spring rod. The softest adjustment is
reached when the supporting edge of cam is the
closest to hexagonal portion of cam.
SOFTEST ADJUSTMENT
1. Supporting edge closest to hexagonal
2. Spring
The stiffest adjustment is reached when the sup-
porting edge of cam is the farthest to hexagonal
portion of cam.
STIFFEST ADJUSTMENT
1. Supporting edge farthest to hexagonal
CAUTION : Always turn the left side ad-
justment cams in a clockwise direction
and the right side cams in a counterclockwise
direction. Left and right adjustment cams must
always be set at the same position.
LH SIDE SHOWN
RH SIDE SHOWN
Stopper Strap
The function of the stopper strap is to control the
transfer of vehicle weight during acceleration and
to control track lead angle.
The longer the belt, the more the weight will be
transferred to the track to provide a better trac-
tion. The shorter the belt, the lesser the weight
transferred to the track, thus maintaining a more
positive steering.
The longer the belt, the greater will be the track
lead angle. A shorter belt will reduce track lead
angle which may help when negotiating a particu-
lar snow condition.
Adjusting holes on the stopper strap allow to ad-
just it according to driver’s requirements, field
and / or snow conditions.
A05F0MA
1
2
A05F0NA
1
A03F0SA
A03F0TA
