Section 04 TRANSMISSION
Sub-Section 05 (PULLEY DISTANCE AND ALIGNMENT)
04-05-2

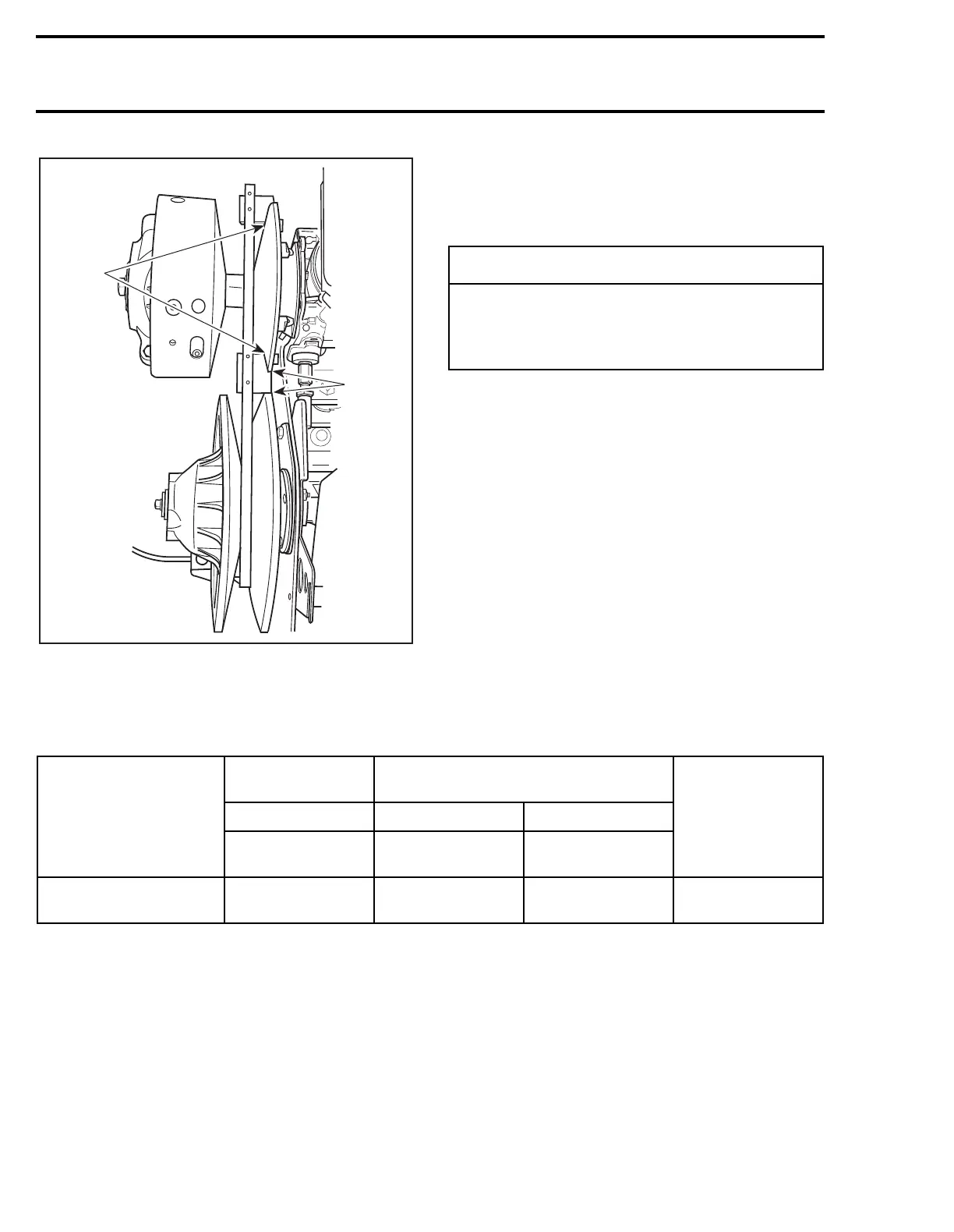

TYPICAL
1. Contact (alignment)
2. Contact (distance)
Drive Belt Deflection
NOTE:
When pulley distance and alignment are
adjusted to specifications, refer to DRIVE BELT
04-02 to adjust drive belt deflection.
PULLEY ALIGNMENT AND DISTANCE SPECIFICATIONS CHART
➀ Alignment templates have been made according to pulley alignment nominal values. However, they
do not take into account allowed tolerances for alignment specifications. They are used as GO/NO
GO gauges for quick alignment and pulley distance check and as templates to reach alignment nom-
inal values.
A06D0LA
1
2
-
CAUTION
This section deals mainly with adjustment
procedures. For complete assembly require-
ments, refer to the proper ENGINE or
TRANSMISSION installation section.
MODEL
PULLEY
DISTANCE
OFFSET
ALIGNMENT
TEMPLATE
➀
P/N
Z X Y-X
+
0,
−
1 mm
(
+
0,
−
0.040 in)
±
0.50 mm
(0.020 in)
±
0.5 mm
(0.020 in)
All
16.5
(0.650)
35.0
(1.380)
1.5
(0.060)
529 0267 00
