Ski-Doo TOURING E LT 1997 - Component Removal and Installation; Removal

Section 06 REAR SUSPENSION
Sub-Section 03 (SC-10 SPORT AND TOURING SUSPENSION)
06-03-2

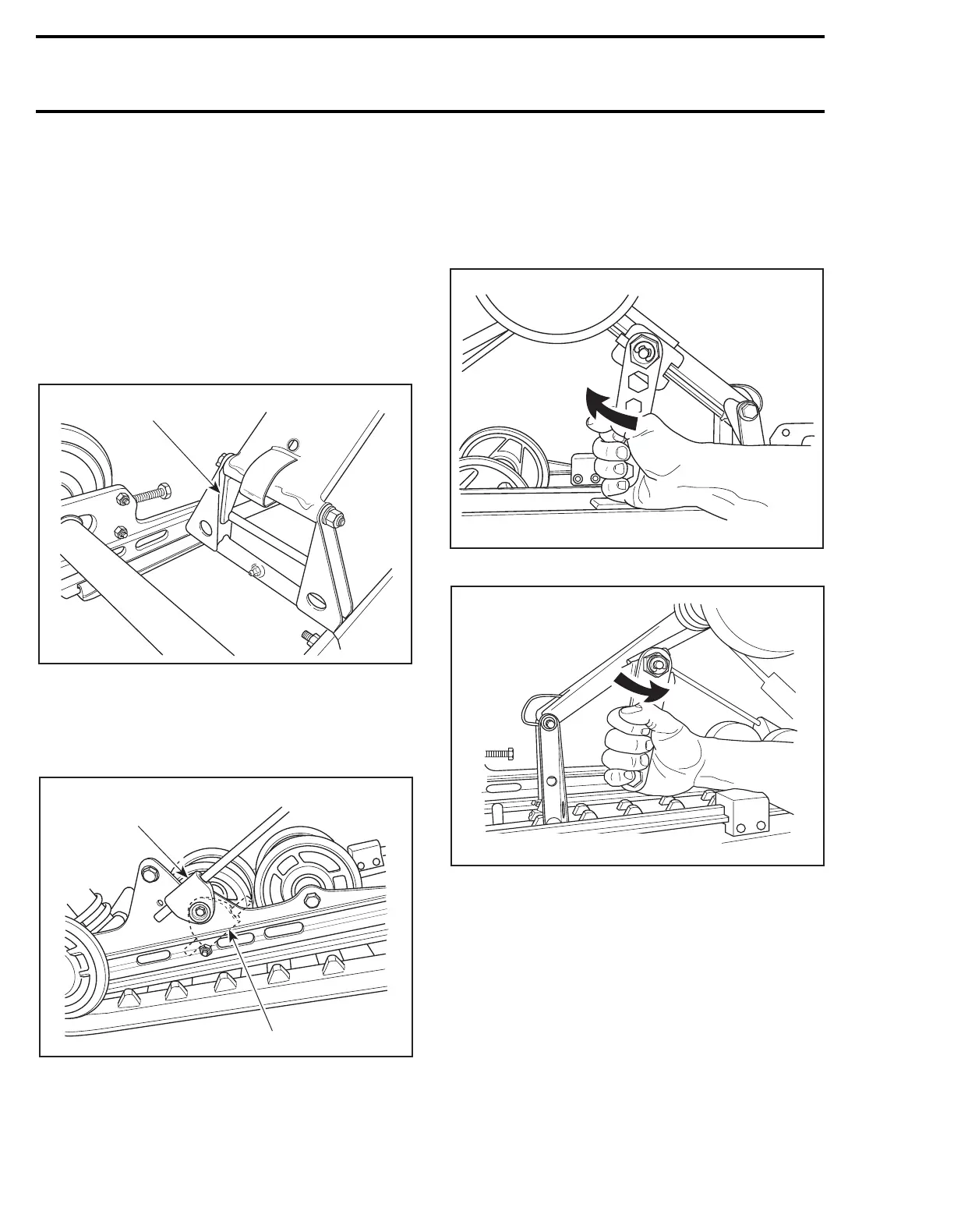

COMPONENT REMOVAL AND
INSTALLATION
Lift rear of vehicle and support it off the ground.
1, Rear Arm
Release spring tension by unfastening spring sup-
port. Unfasten shock from rear arm. Remove 3
screws retaining rear arm.
At installation, rear arm stroke limiter must be be-
hind shackle.
1. Stroke limiter on rear side
18, Spring Support
CAUTION : To avoid track damage, spring
supports must be mounted upward.
RIGHT SIDE SHOWN
1. Right position : upward
2. Wrong position
REMOVAL
19, Cam
Decrease spring preload by turning LH cam clock-
wise and RH cam counterclockwise.
LH SIDE SHOWN
RH SIDE SHOWN
Lift rear of vehicle and support it off the ground.
Block suspension in place.
2,3,4,5,6,18, Spring, Washer, Idler
Wheel, Spacer, Screw and Spring
Support
Unbolt spring support from runner while retaining
spring end. Move spring end rearward to com-
pletely release spring preload. Proceed with the
other side.
Unscrew both rear arm screws.
A03F13A
1
-
A03F0VA
1
2
A03F0SA
A03F0TA
