Section 07 STEERING/FRONT SUSPENSION
Sub-Section 02 (STEERING SYSTEM)
07-02-3
To install, stick the heating element to the handle-
bar making sure the wires do not interfere with
operation of the accelerator or brake handle.
Heat the grip with a heater gun or a spot light to
ease installation. Insert new grip with a rubber
mallet.
INSPECTION
24, Heating Grip Element
Refer to TESTING PROCEDURE 05-06.
10,16, Ball Joint
(Left Hand and Right Hand Threads)
Inspect ball joint ends for wear or looseness, if ex-
cessive, replace them.

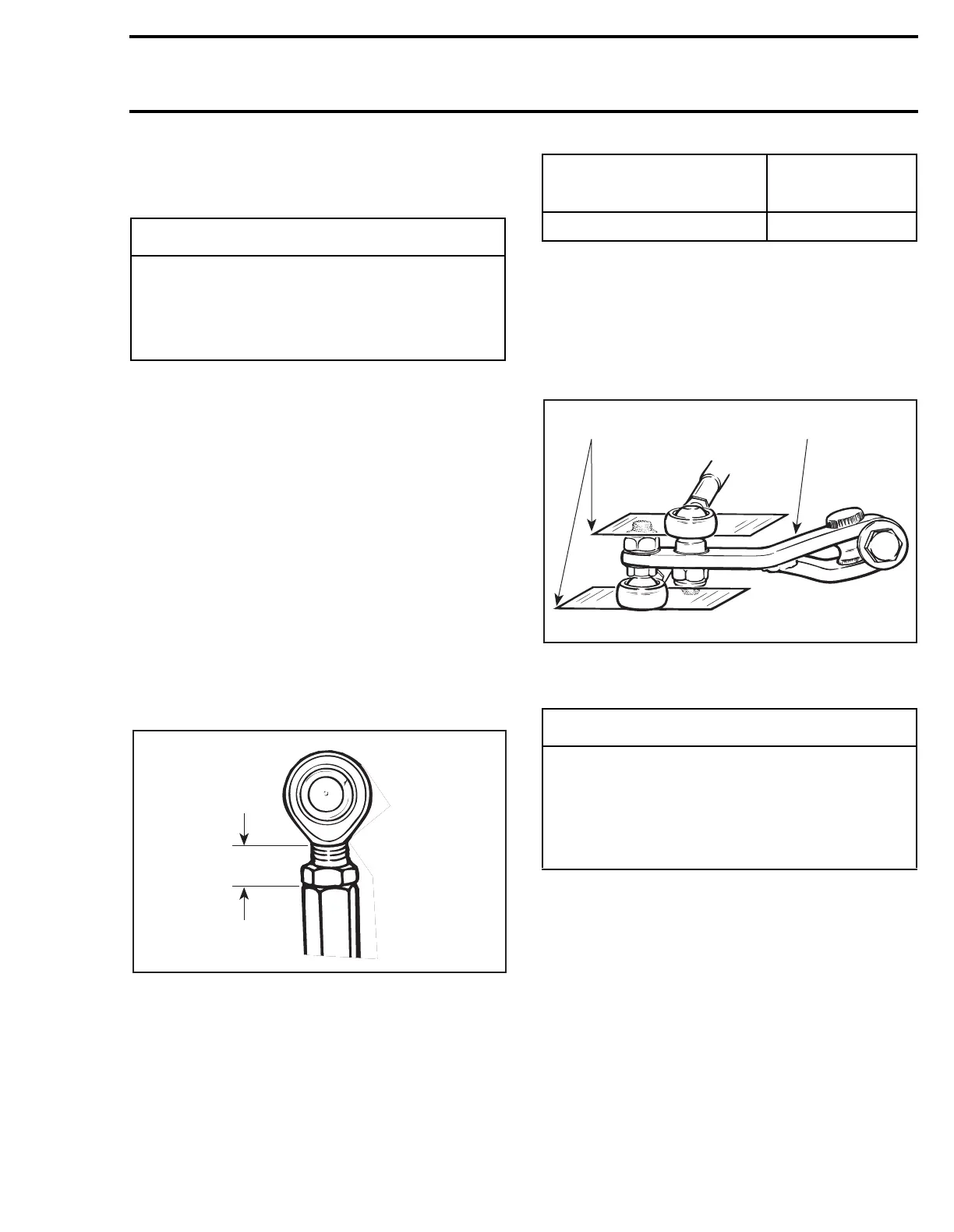

Screw threaded end of the ball joint into the tie
rod. The maximum external threaded length not
engaged in the tie rod must not exceed the value
L
in the following thread length chart:
TYPICAL
The ball joint should be restrained when tighten-
ing the tie rod end lock nut. Align it so the tie rod
end is parallel to the steering arm when assem-
bled on the vehicle, refer to the following illustra-
tion.
For proper torque specifications refer to the spe-
cific exploded view for the vehicle being serviced.
TYPICAL
1. Parallel with steering arm
2. Steering arm
◆
WARNING
Never use lubricants (e.g. soap, only grease,
etc.) to install the handlebar grip, use a mix
of soap and water. Mix 40 parts of water with
one part of dish washing soap (recom-
mended: Ultra Joy, Sunlight or Palmolive).
A17G0SA
L
MODEL
L
mm (in)
All 20 (25/32)
◆
WARNING
The cut off section of the ball joint must run
parallel with the steering arm. When tighten-
ing lock nuts, restrain ball joint with appro-
priate size wrench. Ensure not too many
threads are kept outside of the tie rod ac-
cording to the thread length chart.
A02G0IA
