DRIVE BELT 2
1997 APPLICATION CHART 2
ROTATION DIRECTION 2

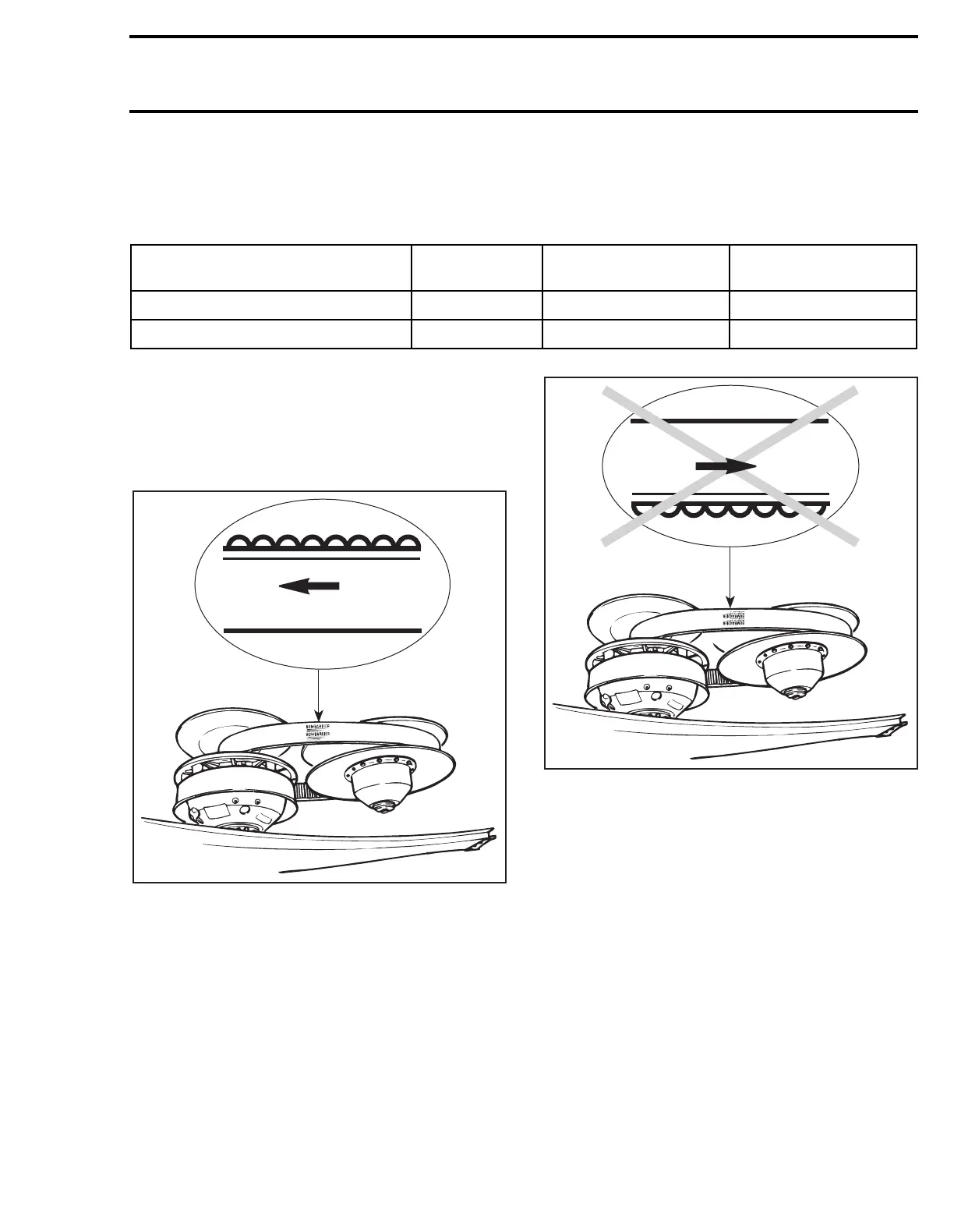

The maximum drive belt life span is obtained
when the drive belt is installed as shown. This will
ensure that correct direction of rotation is respect-
ed.
CORRECT
INCORRECT
NOTE :
For used drive belt, mark and rein-
stall in the same position.
MODEL
PART
NUMBER
WIDTH (NEW)
±
0.25 mm (.010 in)
MINIMUM WIDTH
(WEAR LIMIT)
TUNDRA II LT 414 8276 00 33.3 mm (1-5/16’’) 30 mm (1-3/16’’)
S-SERIES 415 0606 00 34.3 mm (1-27/64’’) 32 mm (1-1/4’’)
