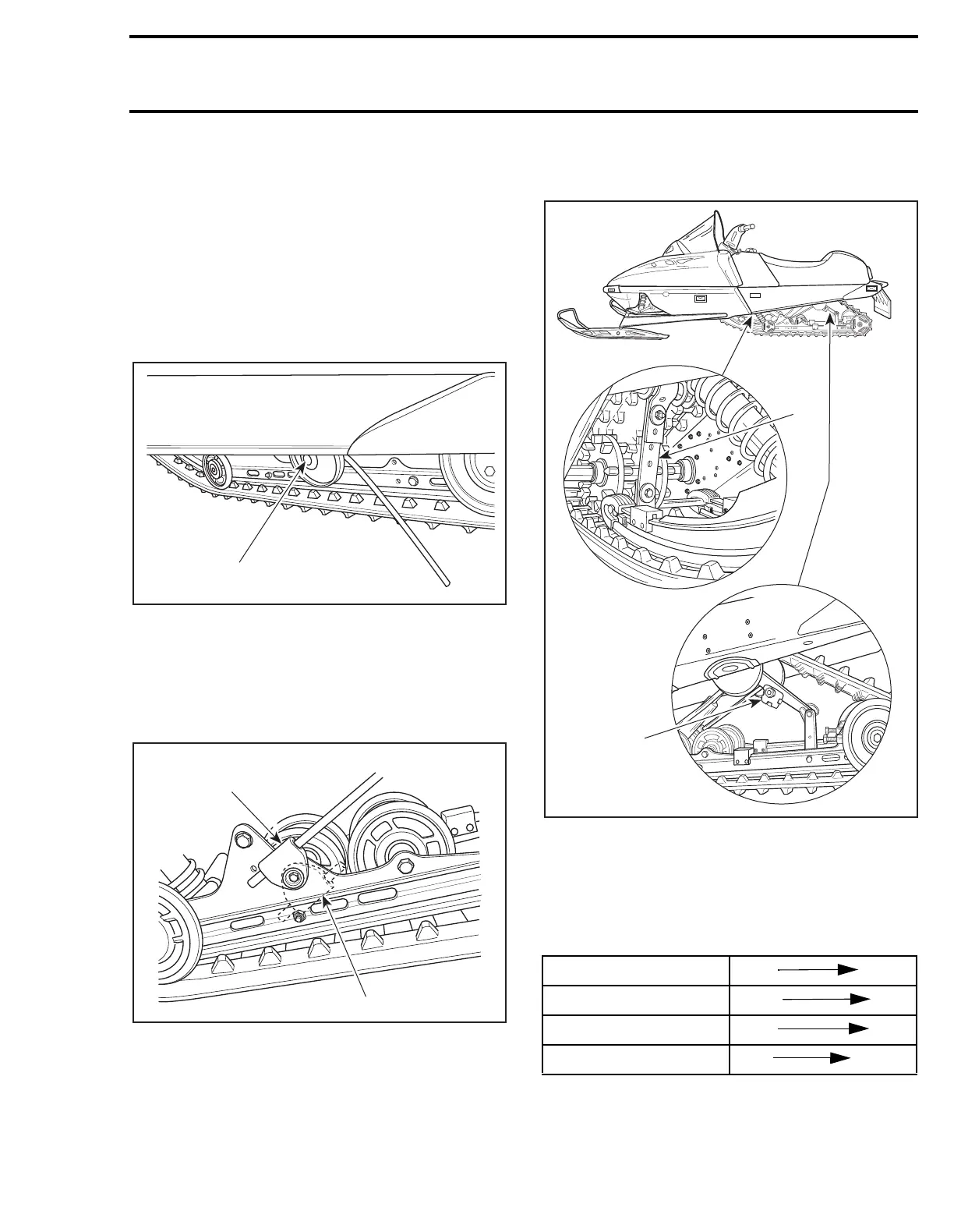

Section 06 REAR SUSPENSION
Sub-Section 03 (SC-10 SPORT AND TOURING SUSPENSION)
06-03-5
INSTALLATION
Do not install rear spring yet. Install assembled
suspension into track with front portion first.
Insert rear portion of suspension into track.
2,3,4,5,6 Spring, Washer, Idler Wheel,
Spacer and Screw
On each side, install rear spring, washer, idler
wheel, spacer then bolt that axle to tunnel.
1. Spacer
18, Spring Support
Install spring supports to rails.
CAUTION : To avoid track damage, spring
supports must be mounted upward.
RIGHT SIDE SHOWN
1. Right position : upward
2. Wrong position
RIDE ADJUSTMENT
The stopper strap is adjustable for vehicle weight
transfer control.
The rear portion of rear suspension is adjustable
for driver’s weight.
1. Stopper strap for weight transfer
2. Driver’s weight
Choice of suspension adjustments depends on
carrying load, driver’s weight, personal prefer-
ence, riding speed and field condition.
Rear Suspension Setting Table
Slight suspension bottoming occurring under the
worst riding conditions indicates a good choice of
springs preload.
A03F0ZA
1
A03F0VA
1
2
Cam position Soft Heavy
Operator’s weight Light High
Riding speed Low High
Field condition Flat Bumpy
A03F0UA
1
2
