Section 03 ELECTRICAL SYSTEM

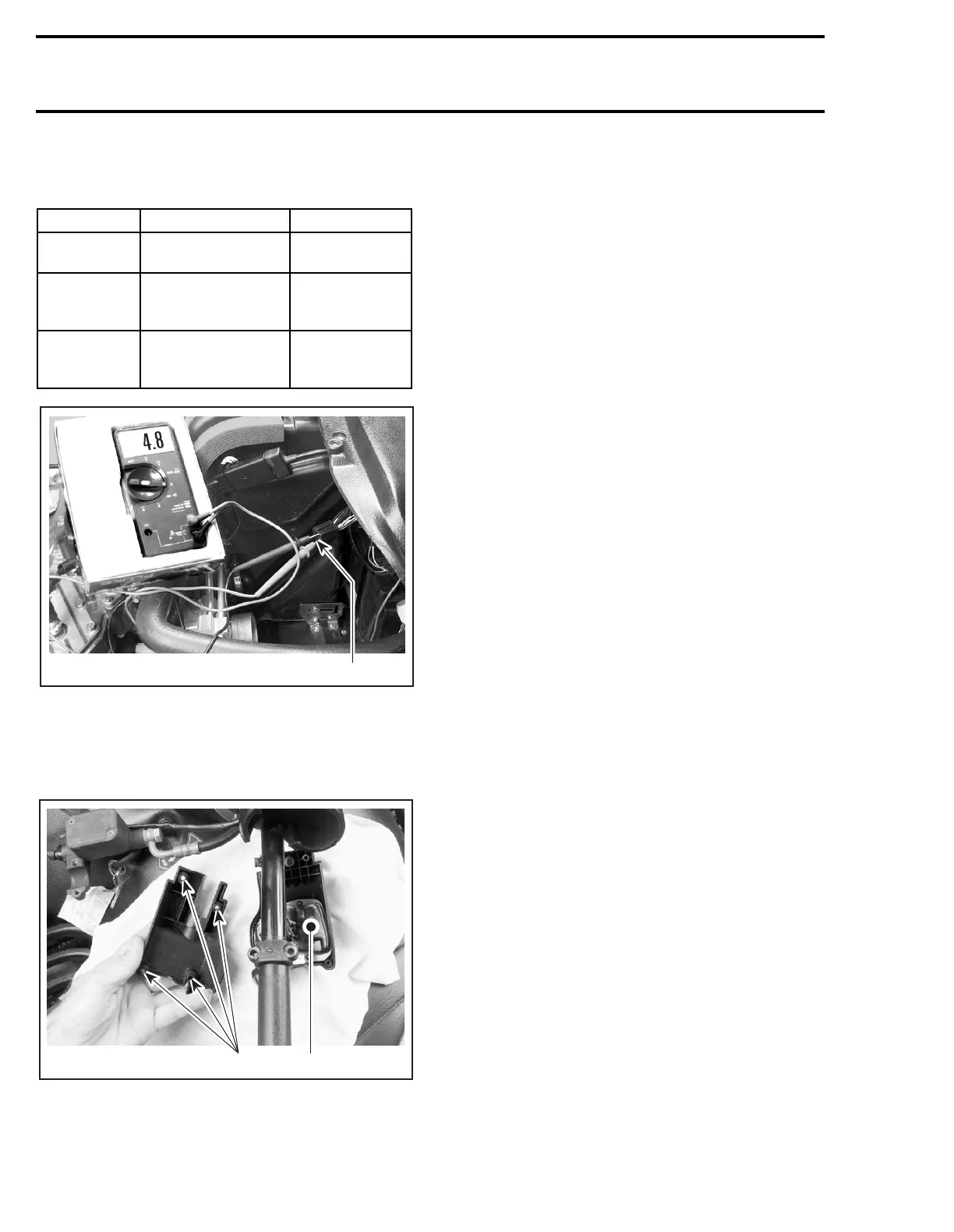

Heating Elements
Measure element resistance.
1. Probes to YL/BK and to OR wires (element side); 6-09 housing
DIMMER SWITCH SYSTEM
COMPONENT LOCATION
1. Intensity control module
2. Screw location
THEORY AND OPERATION
Dimmer Switch
The dimmer switch allows selection of headlamp
beam.
NOTE:
When holding switch for more than 1 sec-
ond to dim light (from high to low beam), light will
return to high beam position automatically after
10 seconds.
Intensity Control Module
This module controls the headlamp circuit ground.
TESTING PROCEDURE
This module cannot be repaired. Replace it when
defective.
Removal
Remove brake master cylinder. See previous pho-
to.
Unscrew the 4 screws holding the module to the
handlebar.
ELEMENTS WIRES RESISTANCE
Ω
Handle
(only one)
Wires of only one
handle
9.7 ± 1
2 handles
YELLOW/BLACK
and ORANGE
(6-09A and 6-09D)
4.8 ± 1
Accelerator
YELLOW/BLACK
and BROWN
(6-09B and 6-09C)
72 ± 10
A06E2TA
1
A06E2UA
12
