Section 07 STEERING/FRONT SUSPENSION
Sub-Section 03 (SUSPENSION AND SKI SYSTEM)
07-03-7

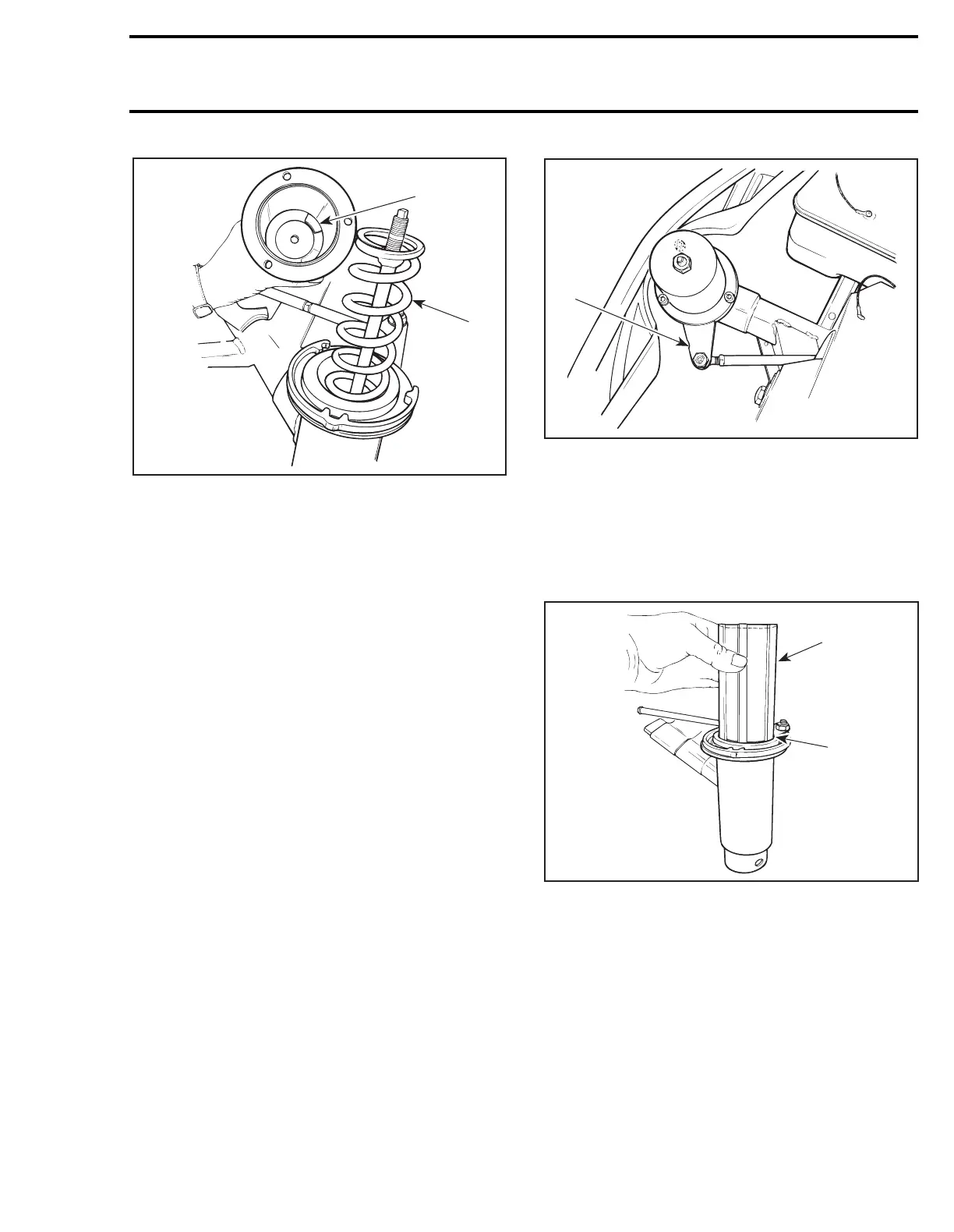

1. Washers and stopper wedged in cover
2. Spring
Pull out spring.
Suspension Free Operation
Remove cover and check for free movement of
ski leg by lifting end of ski.
DISASSEMBLY
Lift front of vehicle and support off the ground.
1,2,3,5,6,9,11,12, Bolt, Lock Washer,
Cover, Stopper, Bushing and Nut
Remove ski bolt, nut, bushings and ski.
Unscrew shock piston pin nut then remove wash-
er. Shock will fall off the ski leg.
Unscrew 3 Allen screws retaining cover, then re-
move stopper and washers.
1. Allen screws
NOTE:
These washers and stopper can be
wedged in cap.
4,13,14,16,17, O-ring, Ski Leg, Bushing
and Seal
Pull up ski leg. Steering arm will not interfere.
1. Pull up ski leg
2. Steering arm in place
Remove seal and O-rings. Drive out bushing if
worn out.
15, Leg Housing
Unbolt leg housing. Keep shim(s)
no. 18
for fur-
ther installation. Using a pry bar spread clamp and
pull up leg housing.
A05G0DA
2
1
A05G0CB
1
A05G0EA
2
1
