Section 05 ELECTRICAL
Sub-Section 05 (BATTERY)
05-05-1
BATTERY 5
REMOVAL
All Models
S-Series

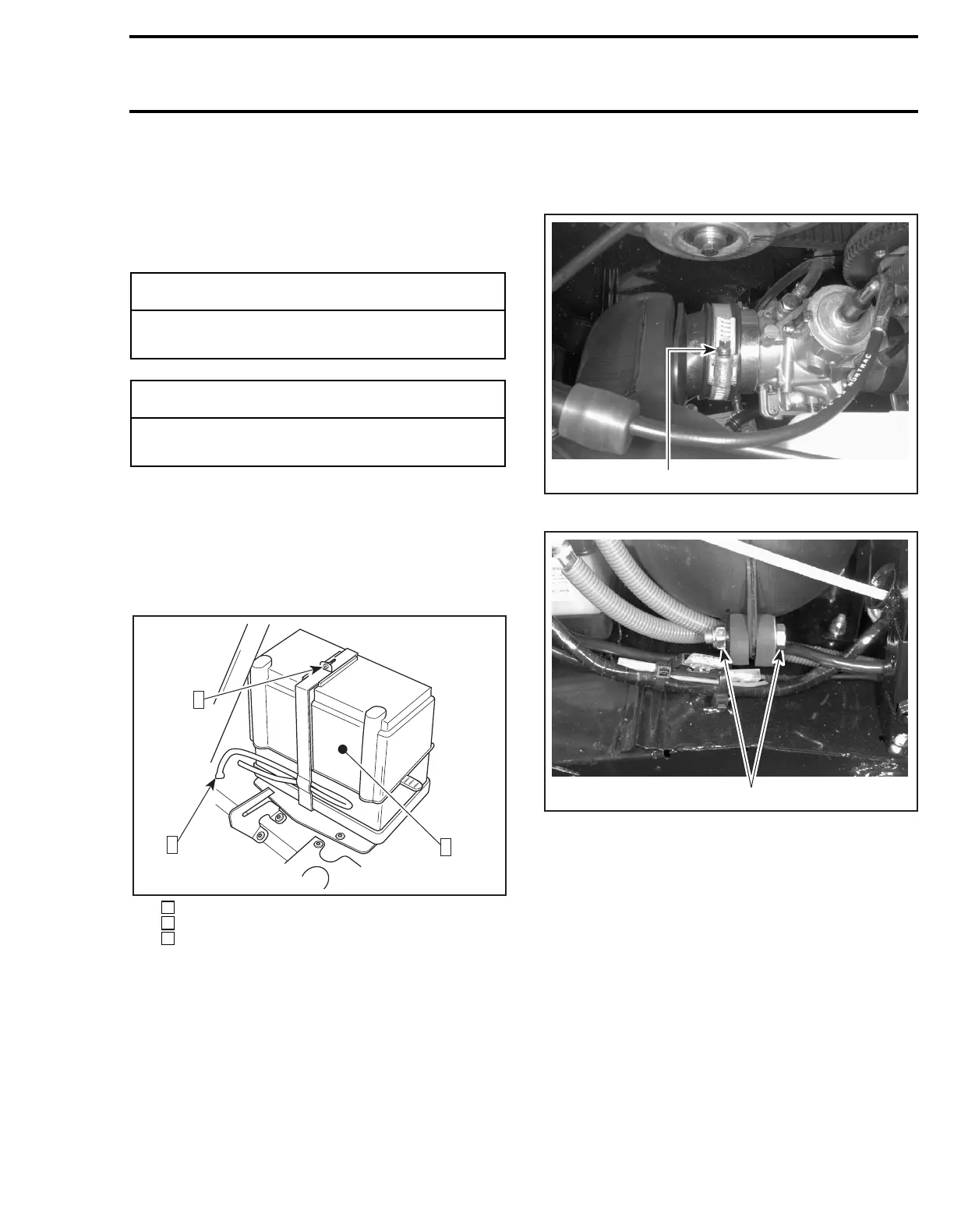

Remove air silencer.
Unfasten retaining strips.
Open strips and lift battery protective boot.
Remove vent tube.
Step : Unfasten and open
Step : Lift protective boot
Step : Remove vent tube
On all models, a special vented rivet is fixed to the
chassis in order to plug the vented tube from the
battery
Skandic WT
Remove air intake silencer.
1. Loosen clamp
1. Remove bolt and lock nut
Unfasten battery brackets and remove battery.
◆
WARNING
Battery BLACK negative cable must always
be disconnected first and connected last.
◆
WARNING
Never charge or boost battery while in-
stalled on vehicle.
A06E1BA
1
2
3
1
2
3
A22C09A
1
A22C0AA
1
