Section 04 TRANSMISSION
Sub-Section 06 (BRAKE)
04-06-3
1. Spacer
DISASSEMBLY
Only brake pads are available as spare parts. If cal-
iper or master cylinder are damaged, replace each
of them as an assembly.
CLEANING
Clean all metal components in a general purpose
solvent. Thoroughly dry all components before as-
sembling.
INSPECTION
7, Brake Pad
Brake pads must be replaced when lining is 1 mm
(1/32 in) thick or less.

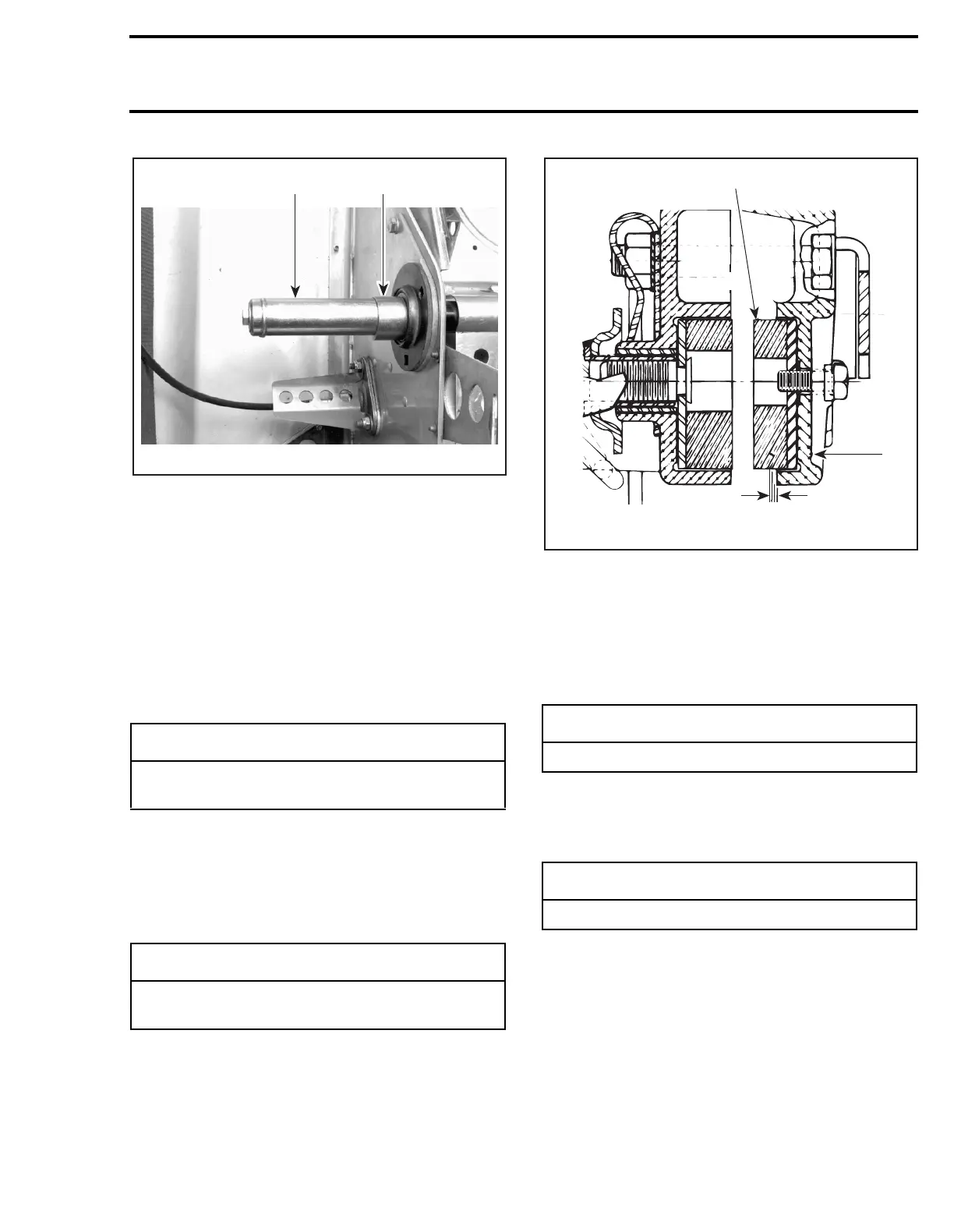

TYPICAL
1. Fixed pad
2. Inner caliper
A. 1 mm (1/32 in) minimum
17, Brake Disc
Check for scoring, cracking or bending, replace as
required.
ASSEMBLY
24, Brake Lever Lock Nut
Tighten nut to 3.0 N•m (27 lbf•
in
). Check free
movement of brake lever.
Apply Loctite Black Max Gel (Loctite item no.
18398) over nut and on bolt threads.
-
CAUTION
Do not clean brake pads in solvent. Soiled
brake pads must be replaced by new ones.
-
CAUTION
Brake pads must always be replaced in
pairs.
A03D1KA
529 0302 00 1
-
CAUTION
Brake disc should never be machined.
◆
WARNING
Always install a new nut when servicing.
A15D03A
A
2
1
