Section 05 ELECTRICAL
Sub-Section 02 (WIRING DIAGRAMS)
05-02-4

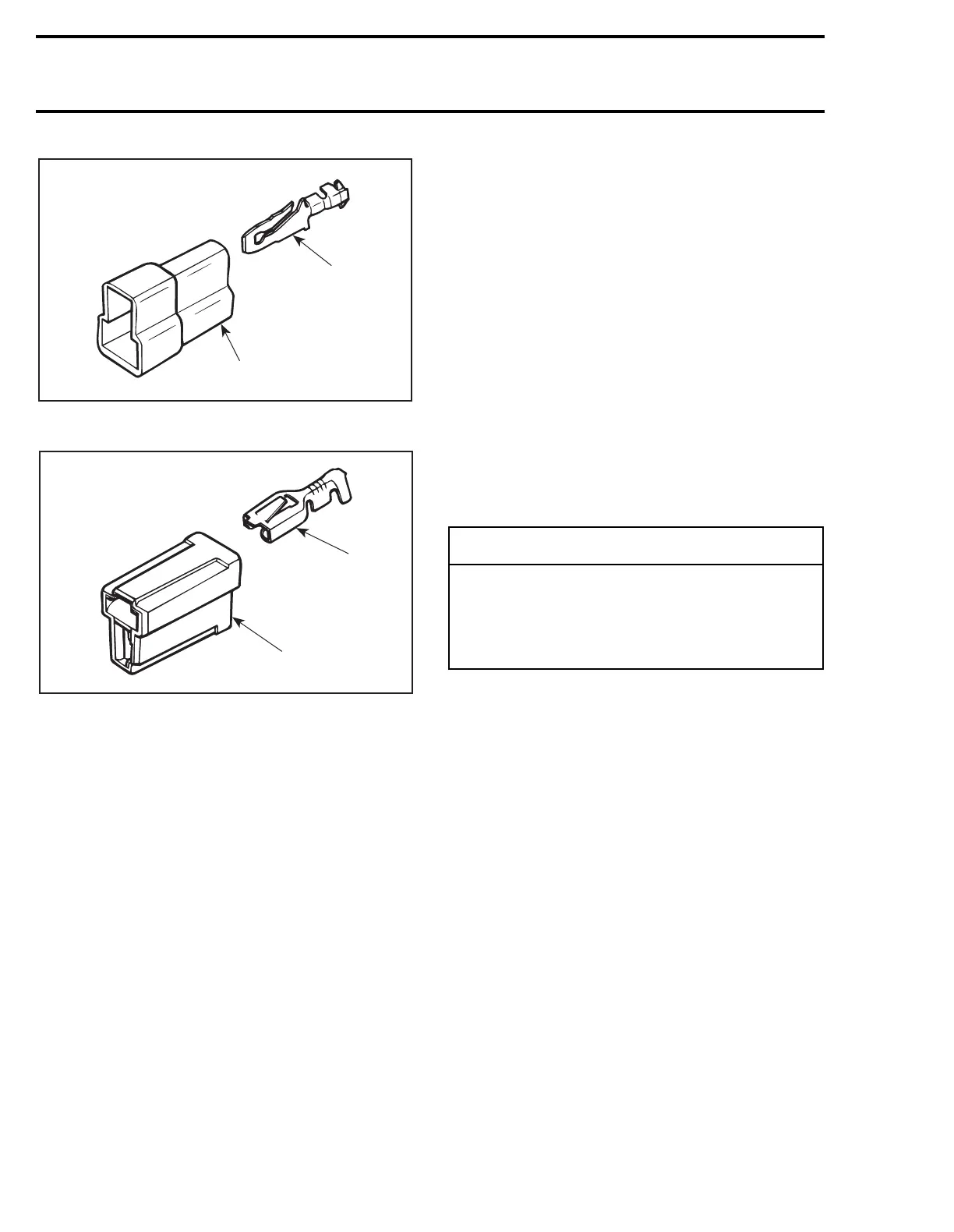

1. Tab
2. Housing
TYPICAL
1. Receptacle
2. Housing
ACCESSORIES INSTALLATION
On all
electric start models:
The direct current
(DC) utilizes the snowmobile frame as ground
“wire” while all alternating current (AC) consum-
ers (lights, heated grips, fuel gauge, etc.) utilize a
separate ground wire.
Never interconnect AC and DC grounds as an AC
voltage drop will result. When installing accesso-
ries on
any
snowmobile, connect their wires di-
rectly to the YELLOW and YELLOW/BLACK
lighting coil wires.
Even if
manual start models
have an AC ground
to the chassis (on voltage regulator), all accesso-
ries utilize a ground wire isolated from chassis.
When an electric starter kit is installed, the volt-
age regulator and its ground wire are replaced by
a voltage rectifier/regulator unit permitting a com-
pletely isolated AC circuit.
A00E1GA
1
2
A00E1FA
1
2
◆
WARNING
Never secure electrical wires/cables with
fuel lines. Keep wires away from any rotat-
ing, moving, heating, vibrating or sharp
edge. Use proper fastening devices as re-
quired.
