Section 07 STEERING / FRONT SUSPENSION
Sub-Section 02 (STEERING SYSTEM)
07-02-9
LUBRICATION
WARNING : Do not lubricate throttle and/
or brake cable, housing and spring cou-
pler bolts.
Grease Fitting and Ski Leg
Use low temperature grease only (P/N 413 7061
00).
Tundra II LT
Lubricate front suspension posts and pivot arm at
grease fittings. Pump five strokes of grease gun
on each post.
NOTE :
There are three grease fittings.
Oil ball joints and steering column bushings.
NOTE :
There are 8 lubrication points.
Other grease fittings require low temperature
grease (P/N 413 7061 00) injected with a grease
gun.

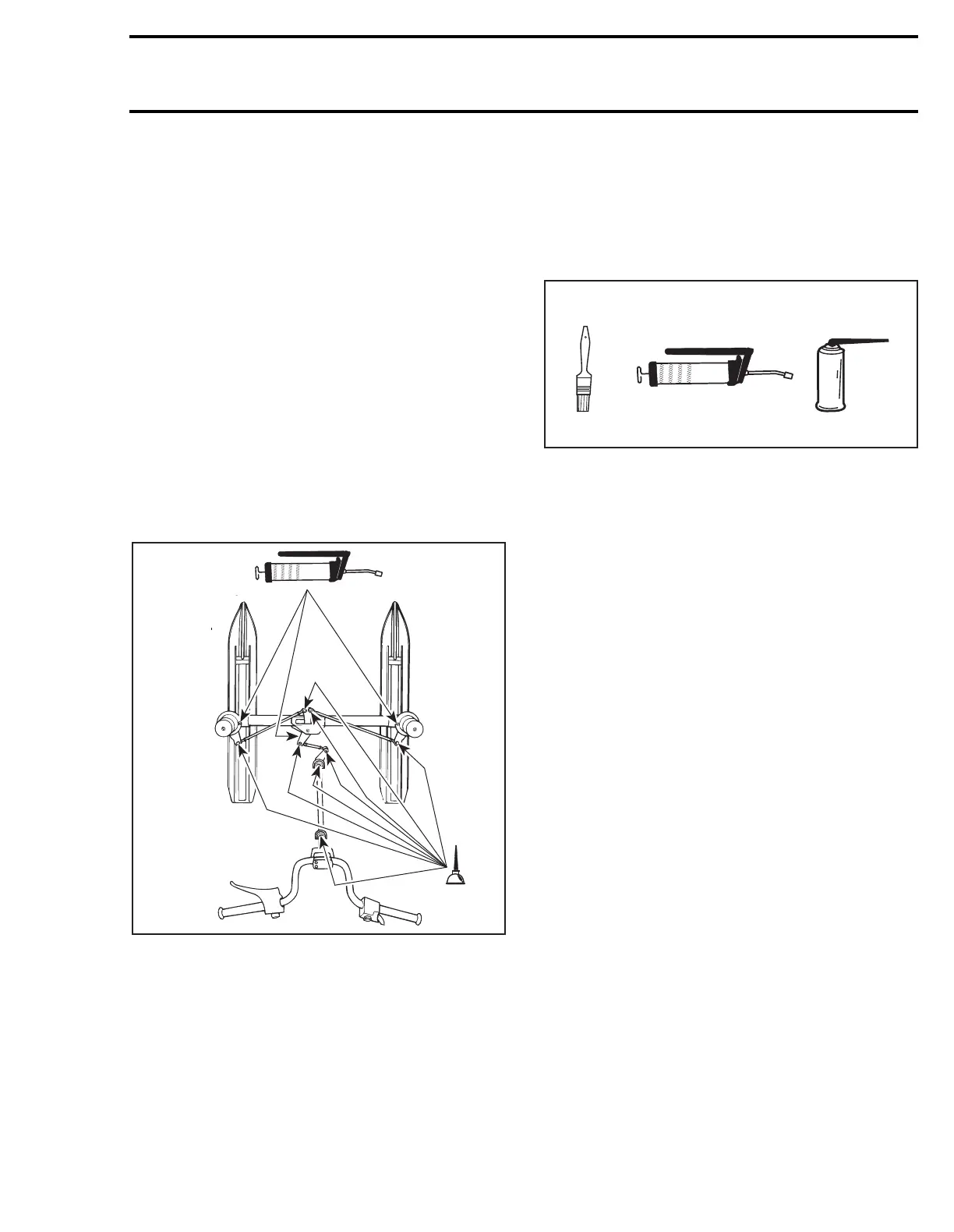

The following symbols will be used to show what
type of lubricant should be used at the suitable
locations.
1. Low temperature grease
2. Chain lube or WD-40
Lubricate :
S-Series
– Steering column.
– Upper and lower control arms drop link and tie
rod ends.
– Grease ski legs, ski pivots and idler arm.
– Coat stabilizer sliders with grease, and oil their
ball joints if so equipped.
;
A05G05B
A00G01A
2
1
1
