Section 03 ENGINE
Sub-Section 10 (FUEL TANK AND THROTTLE CABLE)
03-10-1
FUEL TANK AND THROTTLE CABLE 0

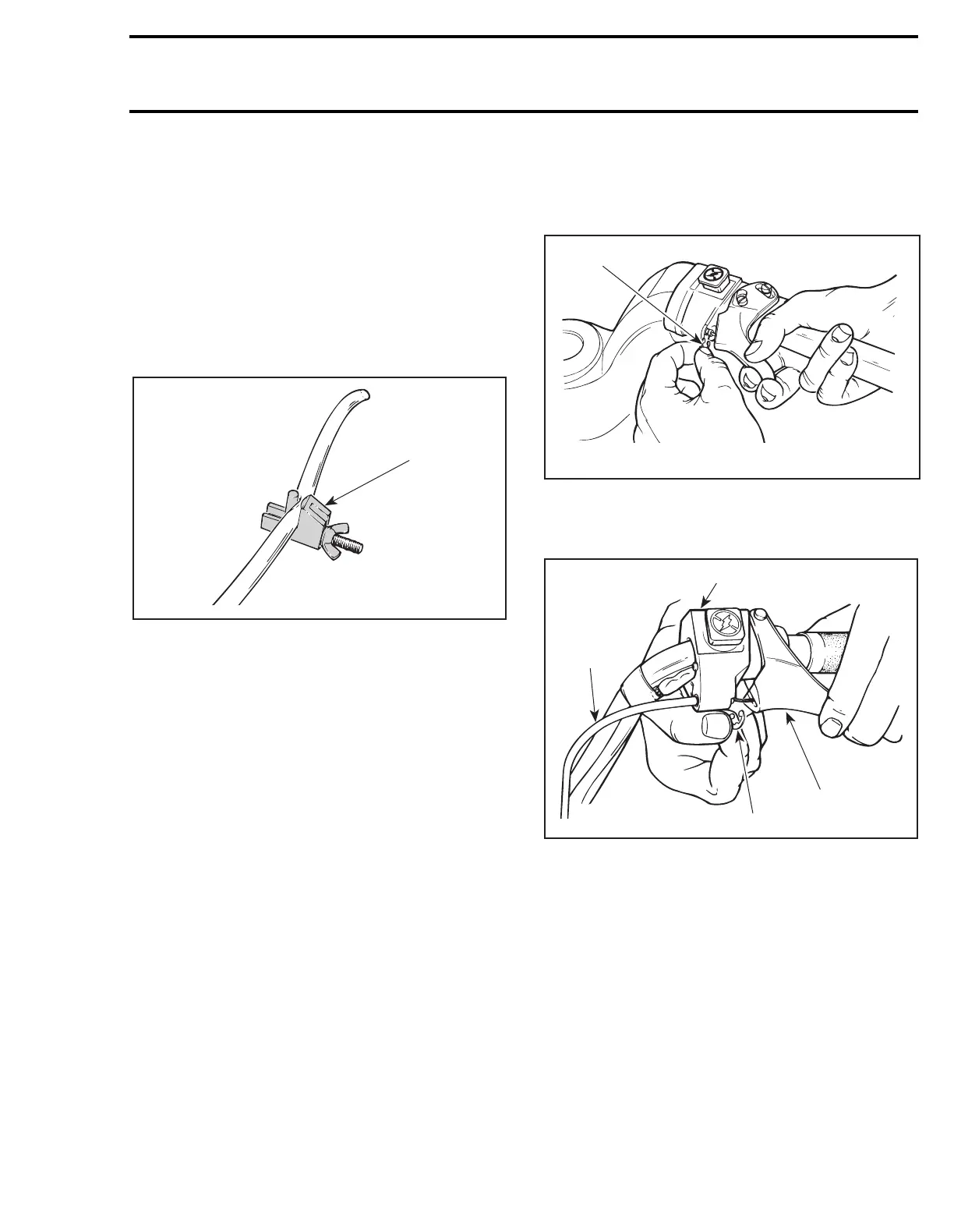

Fuel Tank Lines
WARNING : When draining a fuel tank or
when-ever a fuel line is disconnected, ob-
struct line with a hose pincher (P/N 529 0099
00) or equivalent device. Fuel is flammable and
explosive under certain conditions. Ensure
work area is well ventilated. Do not smoke or
allow open flames or sparks in the vicinity.
Impulse / Fuel Lines Spring Clips
Always reposition spring clips after any repair to
prevent possible leaks.
Throttle Cable Circlip at Handlebar
Put silicone grease (P/N 413 7017 00) around ca-
ble barrel. Locate circlip as per illustration.
WARNING : If this procedure is disregard-
ed, throttle might be half-open at normal-
ly closed position and the engine will speed up
when starting.
Models with Easy Action Throttle Lever
TYPICAL
1. Circlip
Other Models
1. Throttle cable housing
2. Throttle handle housing
3. Throttle handle
4. Circlip
;
A01B2JC
529 0099 00
;
A20H0BA
1
A02C0FA
2
3
4
1
