Throttle Cable Retainer
Tundra II LT Models

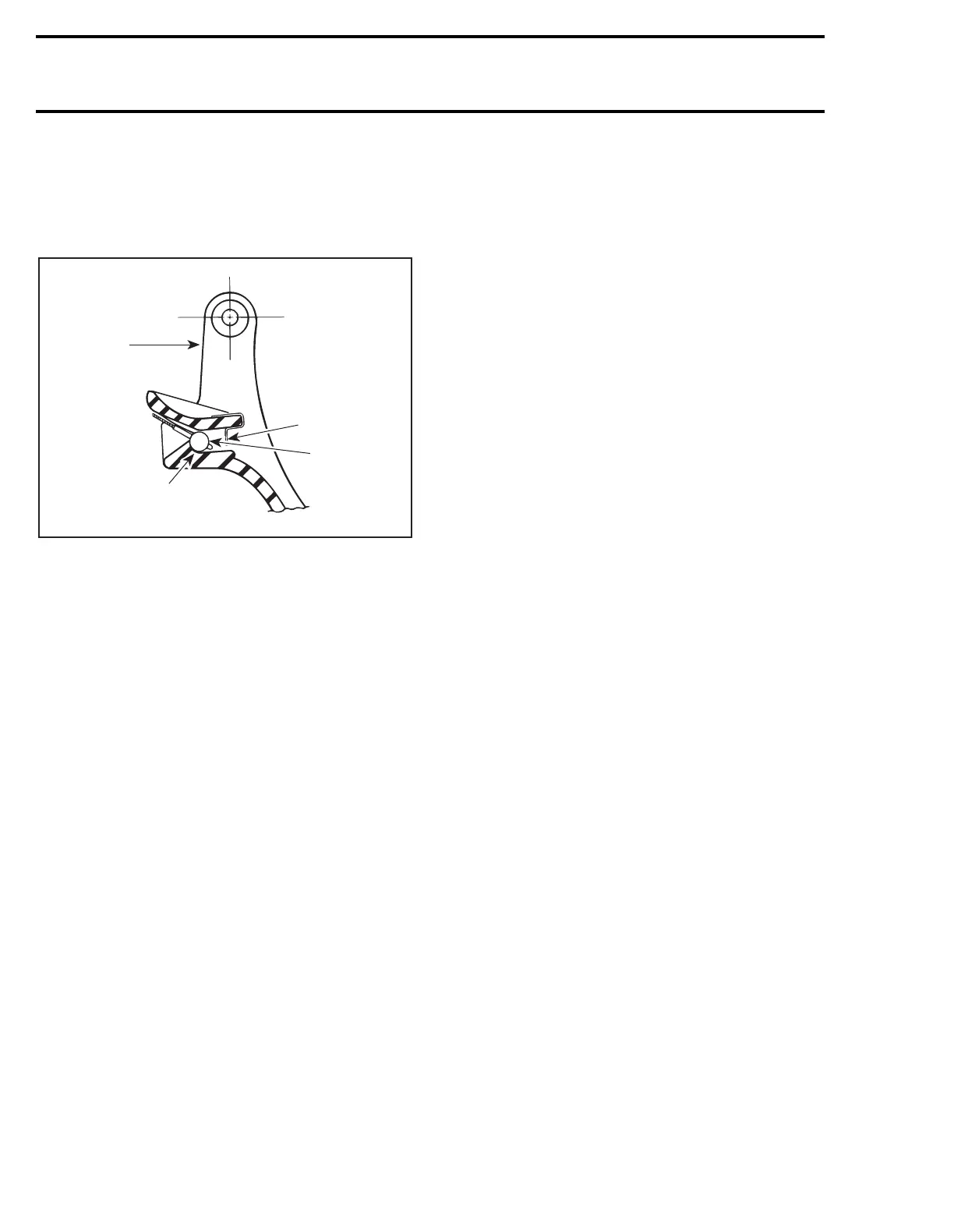

The retainer must be pushed on the throttle han-
dle tab until it sits properly.
1. Throttle handle
2. Retainer
3. Cable barrel
4. Silicone grease
Adjust throttle cable as specified in CARBURE-
TOR AND FUEL PUMP 03-09.
Throttle Cable Routing
CAUTION : Check that throttle cable is
routed away from sharp, edges, hot or vi-
brating parts. When turning steering while en-
gine is running, idle speed must not vary.
