Section 06 REAR SUSPENSION
Sub-Section 03 (SC-10 SPORT AND TOURING SUSPENSION)
06-03-4
12,13,14, Front Shock, Spring Stopper
and Cap
Use shock spring remover (P / N 529 0271 00) in
a vise. Mount shock in it and turn shock so that
spring coils matched spring compressor.
Close and lock bar. Adjust handle horizontal by
changing position of clevis pin.
Push down on handle until il locks. Remove spring
stopper and cap then release handle.

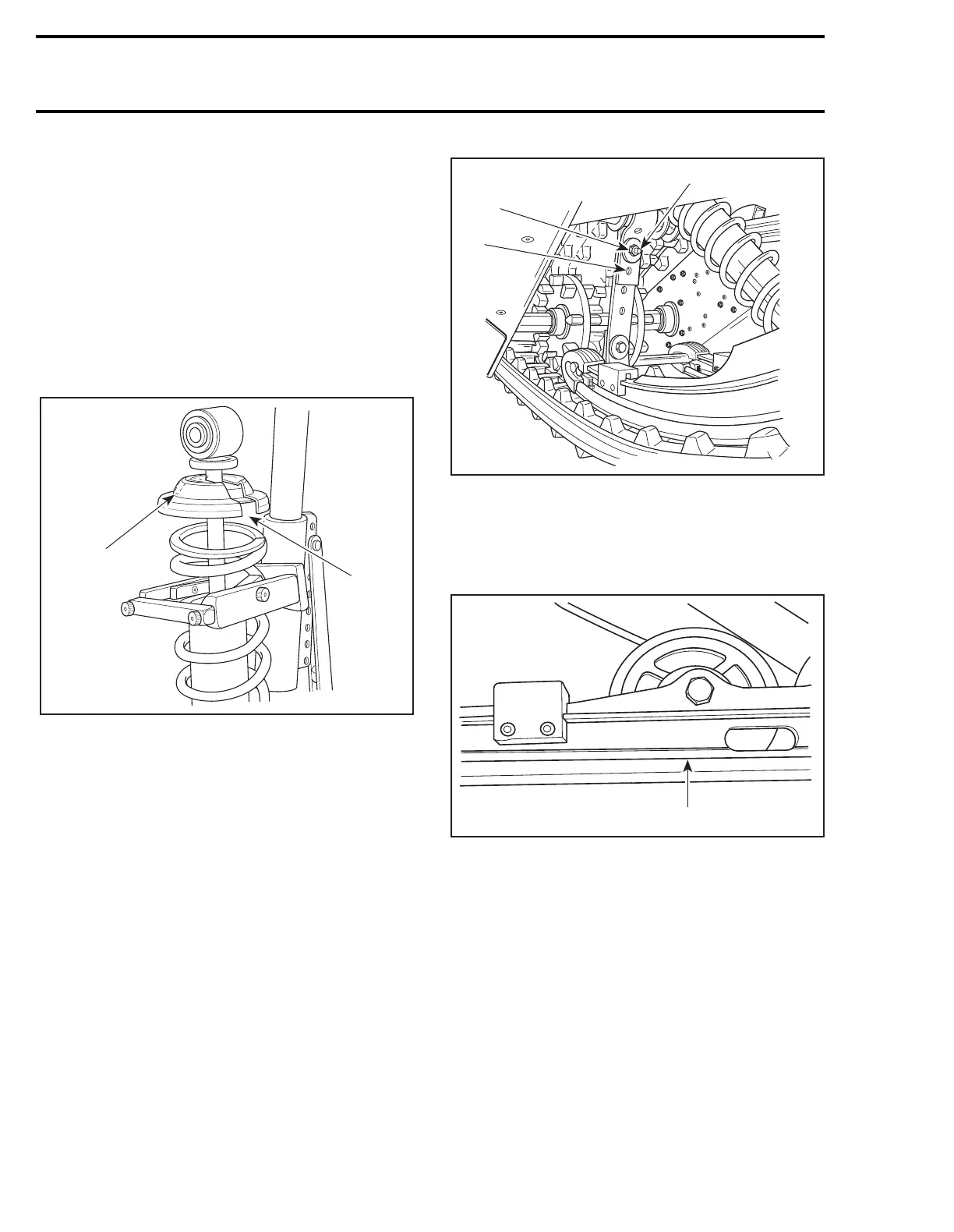

At installation, cap opening must be 180° from
spring stopper opening.
1. Spring stopper opening
2. Cap opening
20, Stopper Strap
Inspect strap for wear or cracks, bolt and nut for
tightness. If loose, inspect hole for deformation.
Replace as required. Make sure it is attached
through the 2
nd
hole from the end. Torque nut to
11 N•m (97 lbf•
in
).
1. 1
st
hole
2. 2
nd
hole
A. 11 N•m (97 lbf•in)
17, Slider Shoe
Replace slider shoes when it is worn to the line.
1. Wear limit line
CAUTION : Slider shoes must always be
replaced in pairs.
INSPECTION
Shock Absorber
Refer to SUSPENSION AND SKI SYSTEM 07-03
then look for
Shock Inspection
.
A03F12A
1
2
A03F0QA
A
1
2
A03F0YA
1
