Section 05 ELECTRICAL
Sub-Section 06 (ELECTRIC STARTER)
05-06-5

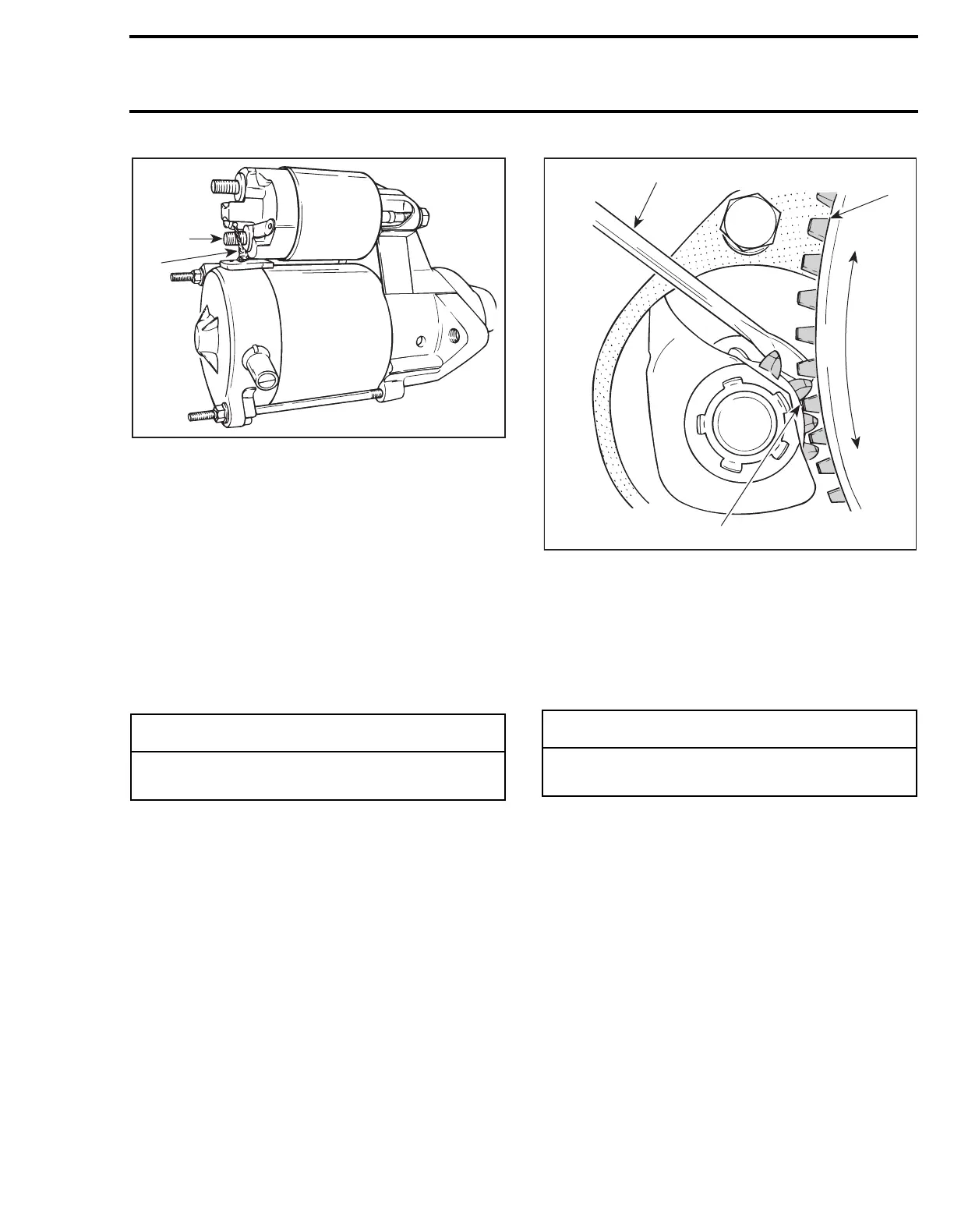

1. Shorter stud
2. Bare wire
INSTALLATION
Make sure that starter and engine mating surfac-
es are free of grime. Serious trouble may arise if
starter is not properly aligned.
Install starter.
NOTE:
Check proper engaging depth of
starter pinion teeth to ring gear teeth (see il-
lustration). Install hardened washers (P/N 503
0079 00) between engine and starter supports ac-
cordingly.
1. Screwdriver pulling starter pinion
2. Ring gear
3. No excessive backlash
A. 0.5 to 1.5 mm (.020 to .060 in)
Connect the RED battery cable and the red wire
to the large terminal of the solenoid. Connect RED/
GREEN wire to small terminal of solenoid.
Connect BLACK cable to battery.
-
CAUTION
All starter bracket fasteners must be secured
with Loctite 271 (P/N 413 7074 00).
A19E09A
1
2
◆
WARNING
Always disconnect ground cable first and
connect last.
A09E0PA
1
2
3
A
