Section 04 TRANSMISSION
Sub-Section 02 (DRIVE BELT)
04-02-4
TUNDRA II LT

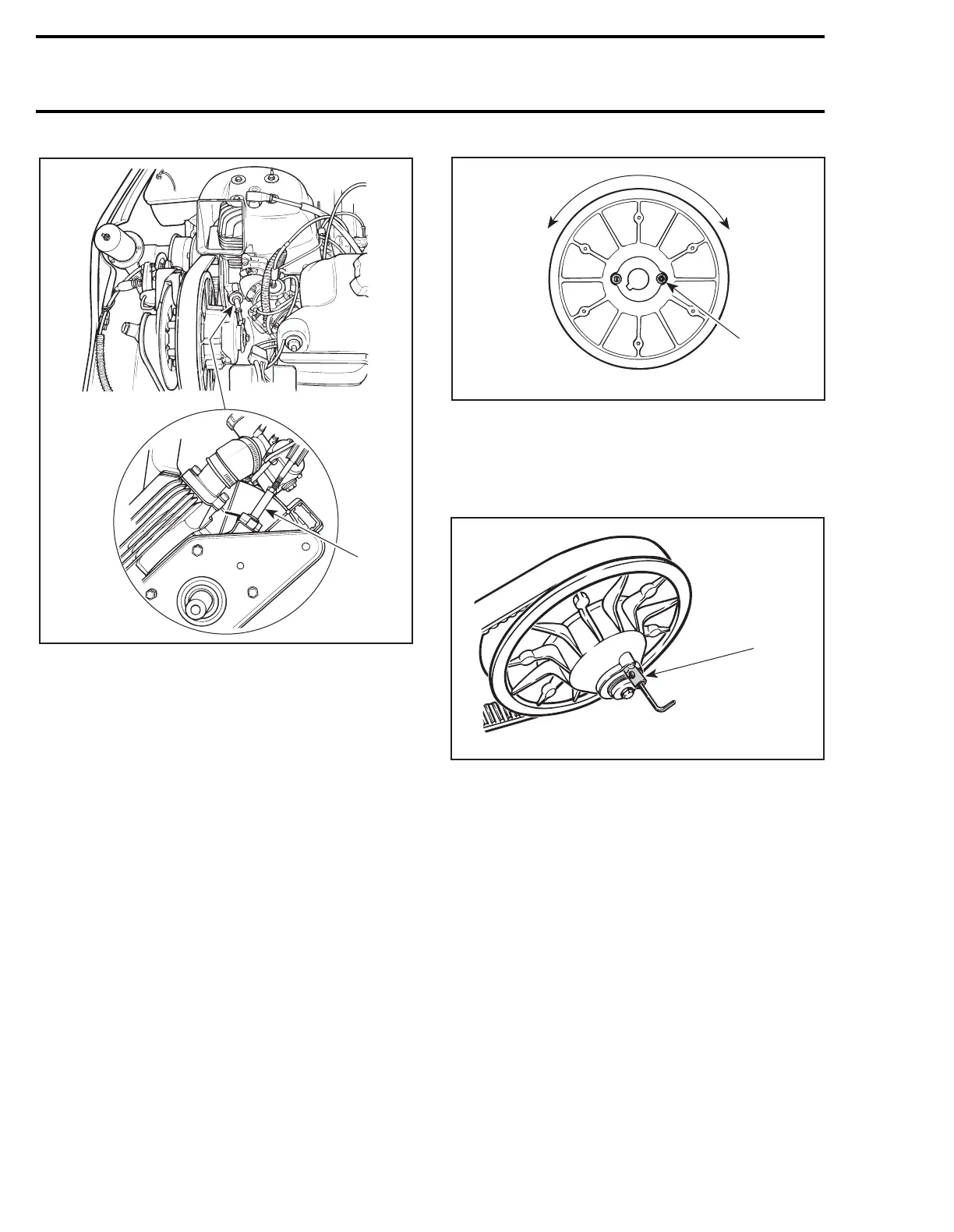

1. Raise
Adjust pulley distance according to specification,
refer to PULLEY DISTANCE AND ALIGNMENT 04-05
and measure drive belt deflection. Readjust pulley
distance if required, then tighten the 4 nuts. Adjust
driven pulley support and lock it to engine.
S-Series
Adjust pulley distance according to specification,
refer to PULLEY DISTANCE AND ALIGNMENT
04-05, then adjust drive belt deflection using Allen
screws, as shown.
To increase deflection : turn Allen screws clock-
wise.
To decrease deflection : turn Allen screws coun-
terclockwise.
NOTE :
Turn Allen screws 1/4 turn at a time,
then rotate driven pulley to allow drive belt
to settle in pulley. Check deflection, repeat as re-
quired.
1. Allen screw with jam nut
Allen screws should be restrained while tighten-
ing jam nut to prevent throwing adjustment out.
Use drive belt tension adjuster (P / N 529 0087
00).
Restrain Allen screws with the wrench and tight-
en nut with the socket using socket handle provid-
ed in tool box.
A05D0PB
1
A15D0WA
1
+
-
A15B05B
529 0087 00
