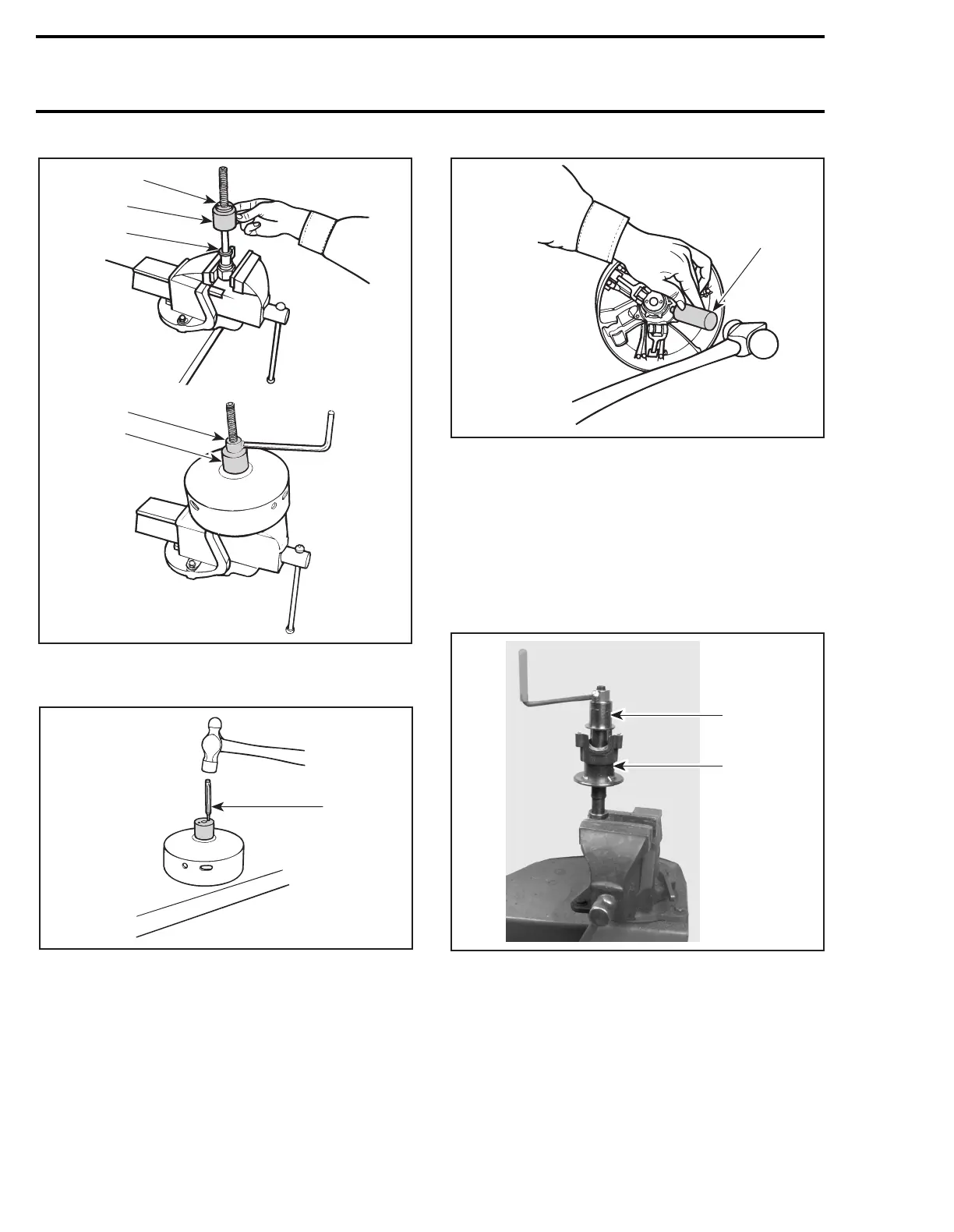

1. Flaring side
2. Tool with holes
3. Washer
TOOL REMOVAL
1. Strike in holes alternately
TOOL REMOVAL
CAUTION : Do not install sliding half on a
vise to remove remaining tool.
Spring Cover Bushing Replacement
Under normal use there is no need to replace this
bushing.
Use tools (P / N 529 0313 00 and 529 0312 00) to
remove old bushing.
CAUTION : Bushing must be bonded with
retaining compound.
Apply retaining compound outside of bushing
then press it down to counterbore from sliding
half side. Use spring compressor (P / N 529 0151
00) and appropriate flare tools.
CAUTION : Insert bushing from sliding
half side (inner) of spring cover.
Start driving bushing into spring cover.
A01B4XA
1
2
3
1
3
A01B40A
1
A01B41A
420 8765 12
A01D2MA
529 0313 00
529 0312 00
