Section 01 LUBRIFICATION AND MAINTENANCE
Sub-Section 01 (LUBRICATION AND MAINTENANCE CHART)
01-01-4
Replace fuel filter. To facilitate the fuel line instal-
lation, slide grommet on fuel line about 50 mm (2
in) away from elbow then install grommet on fuel
tank and push elbow through grommet.
NO. 4 AIR FILTER CLEANING
Check that the air box is clean and dry then prop-
erly reinstall the filter.
CAUTION : These snowmobiles have
been calibrated with the filter installed.
Operating the snowmobile without it may
cause engine damage.

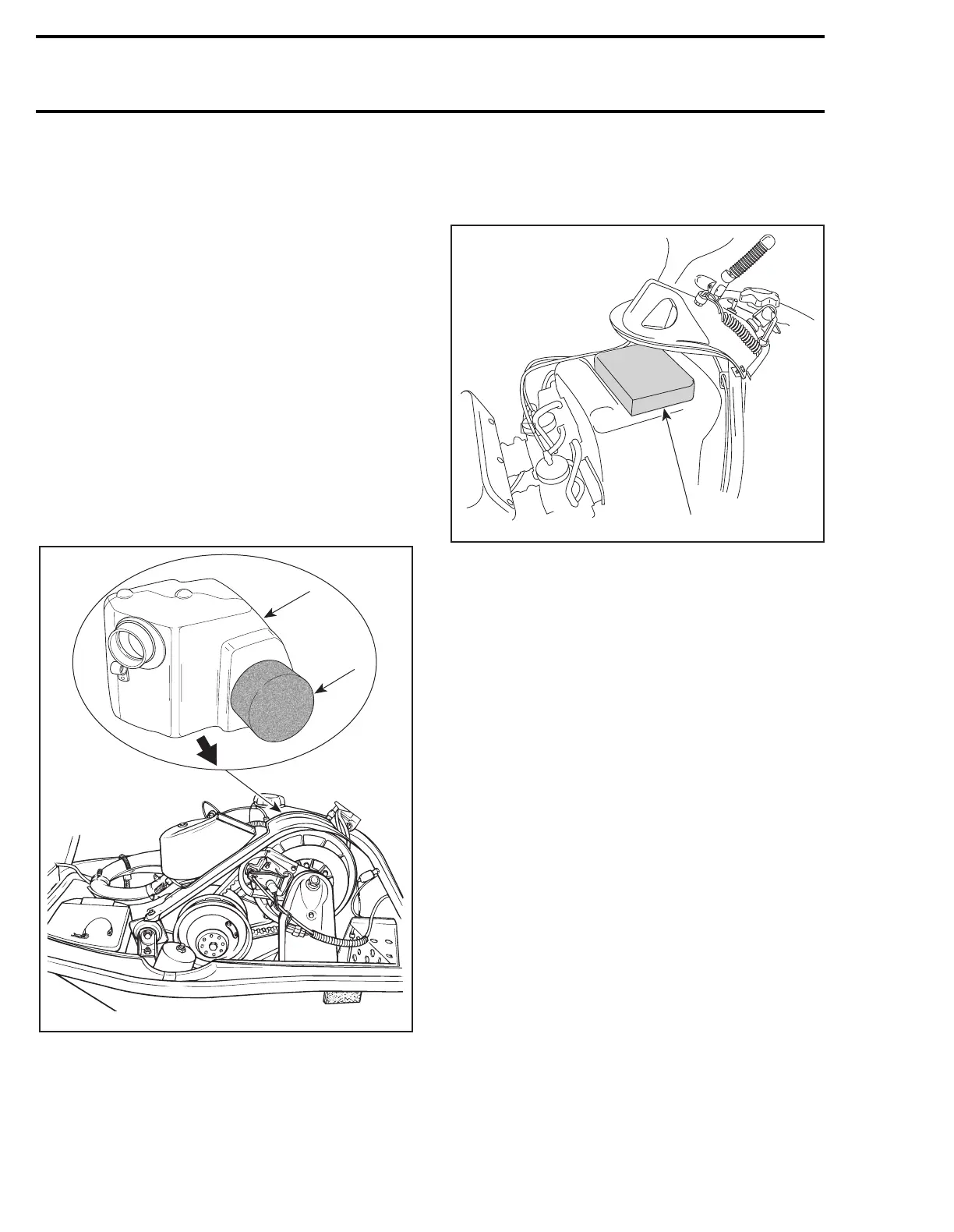

Tundra II LT
Air filter is located on lower side portion of air in-
take silencer. Lift hood and remove belt guard.
Gently pull air filter sideward.
Ensure it is clean and dry. Shake snow out. Clean
with a solvent and dry as necessary.
1. Intake silencer
2. Air filter
S-Series
Lift hood and remove air filter from air intake si-
lencer.
TYPICAL
1. Filter
To clean the filter, shake the snow out of it then,
dry it out.
NO. 5 DRIVE BELT CONDITION
Inspect belt for cracks, fraying or abnormal wear
(uneven wear, wear on one side, missing cogs,
cracked fabric). If abnormal wear is noted, proba-
ble cause could be pulley misalignment, exces-
sive RPM with frozen track, fast starts without
warm-up period, burred or rusty sheave, oil on
belt or distorted spare belt.
Check the drive belt width. Replace the drive belt
if width is less than the minimum width recom-
mended in DRIVE BELT 04-02.
NO. 6 RAGS IN AIR INTAKE AND
EXHAUST SYSTEM
At storage preparation, block air intake hole and
exhaust system hole using clean rags.
Remove those rags at pre-season preparation.
NO. 7 ENGINE COMPARTMENT
Keep clean of grass, twigs, cloth, etc. These are
combustible under certain conditions.
A05A0AA
1
2
1
A03H0LA
