Ski-Doo TOURING E LT 1997 - Page 177

Section 04 TRANSMISSION
Sub-Section 09 (DRIVE CHAIN)
04-09-2

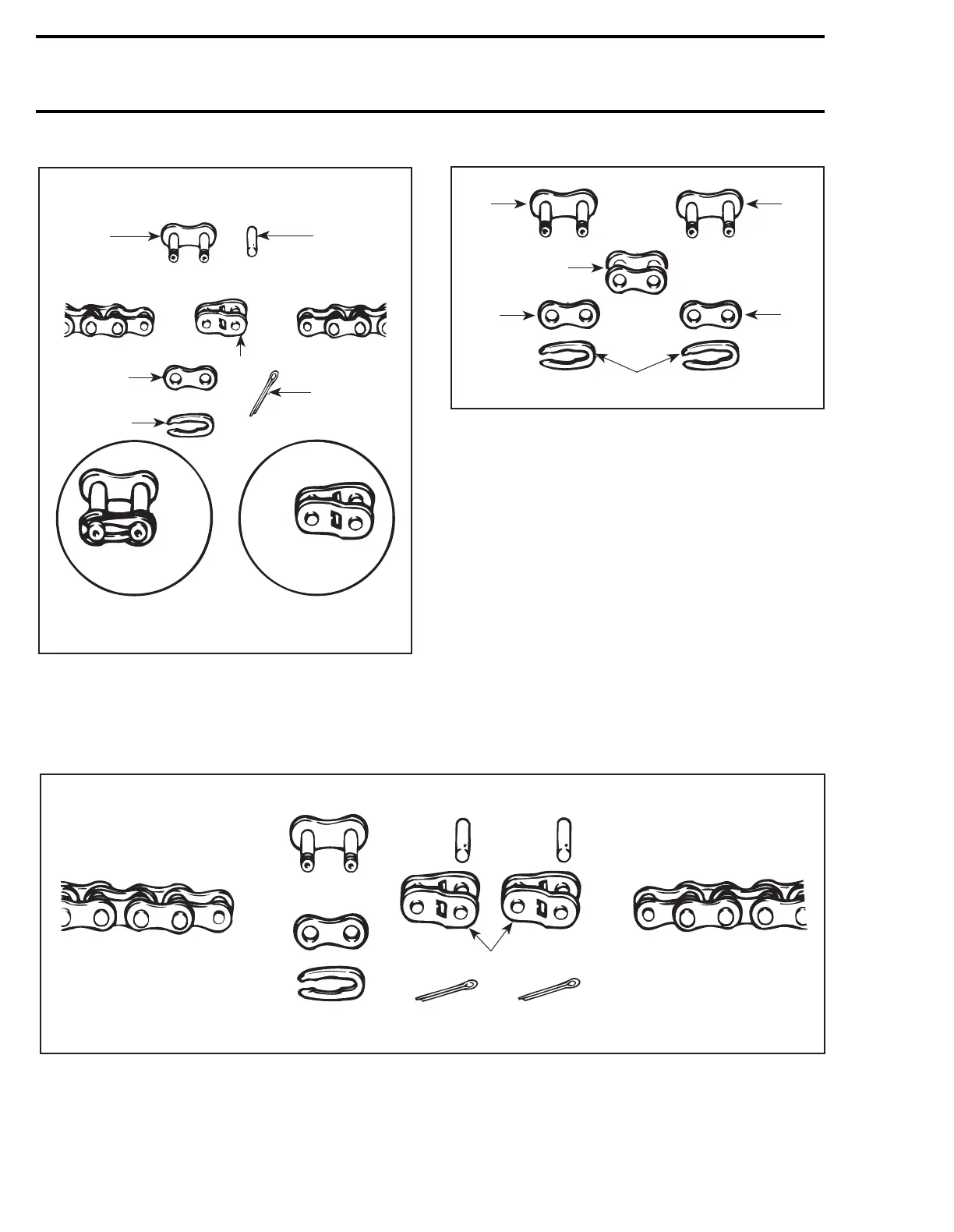

LENGTHENING 1/2 LINK
A. Connecting link
B. Link pin
C. Cranked link
D. Cotter pin
E. Outer link
F. Circlip
LENGTHENING 1 LINK
A. Connecting link
B. Inner link
C. Outer link
D. Circlip
A00D0NA
A
B
C
D
E
F
A
B
C
C
D
A00D0OA
A
LENGTHENING 1-1/2 LINK
A. Connecting link
B. Outer link
C. Cranked link
D. Link pin
E. Circlip
F. Cotter pin
A
D
D
C
F
F
B
E
A00D0PS
