Section 05 ELECTRICAL
Sub-Section 03 (IGNITION TIMING)
05-03-7
2. Start the engine and raise the engine speed at
least to 2000 RPM while observing the timing
marks, refer to illustration. The magneto fly-
wheel mark scribed previously and the crank-
case arrow should be perfectly aligned. If the
marks do not align, a faulty trigger coil (check
proper grounding of coil) or a faulty CDI module
could be the cause : substitute one part at a
time and recheck timing marks (check connec-
tors condition prior to substituting any part).
NOTE :
Ignition timing may be verified when
engine speed is anywhere within 2000-6000
RPM.

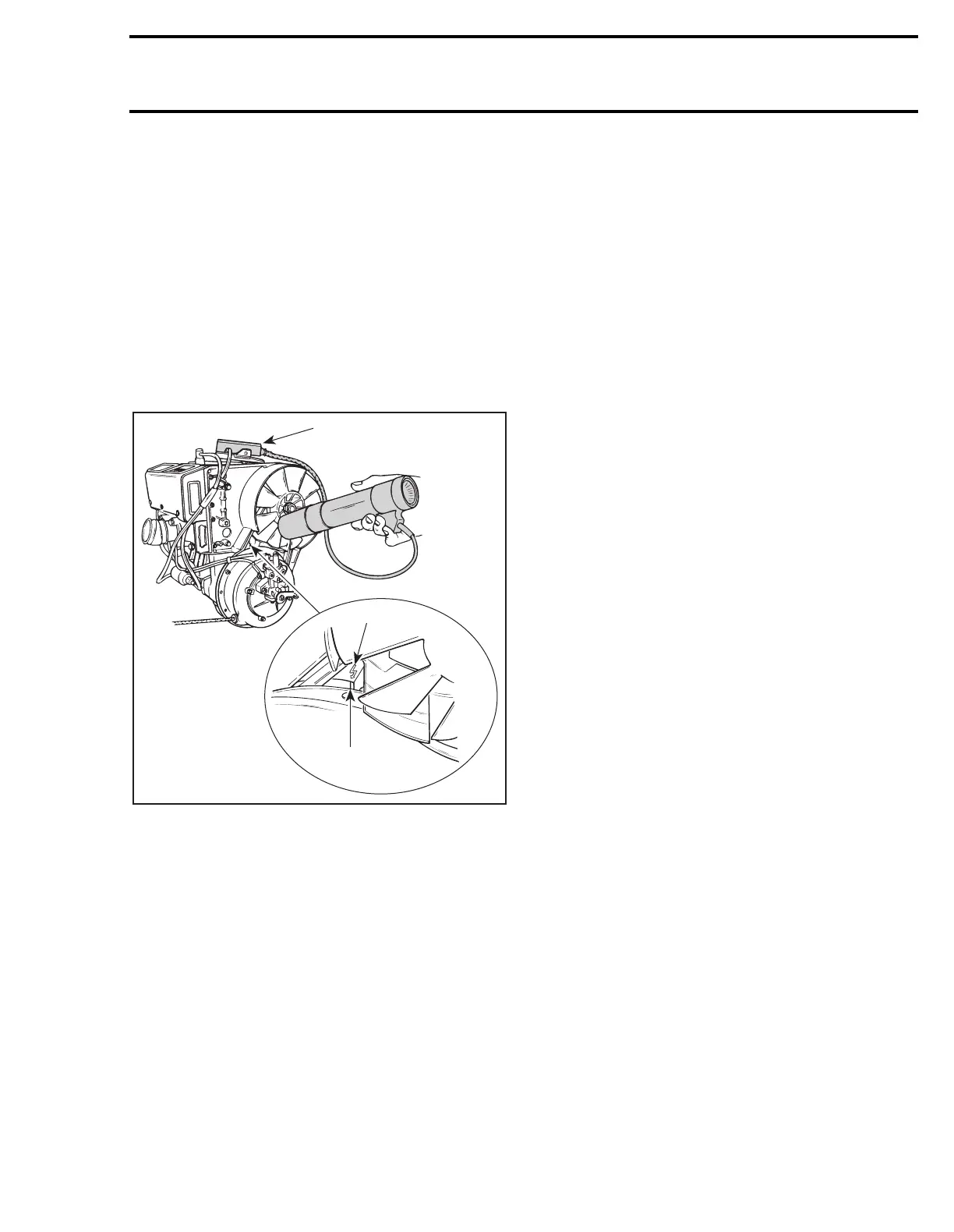

CHECKING IGNITION TIMING
1. Timing light pick-up on MAG side
2. Crankcase arrow
3. Magneto flywheel mark
3. Install parts which were removed.
1
A17E17A
2
3
