Section 06 REAR SUSPENSION
Sub-Section 05 (TRACK)
06-05-2
1. Example 45 mm
2. Extrusion

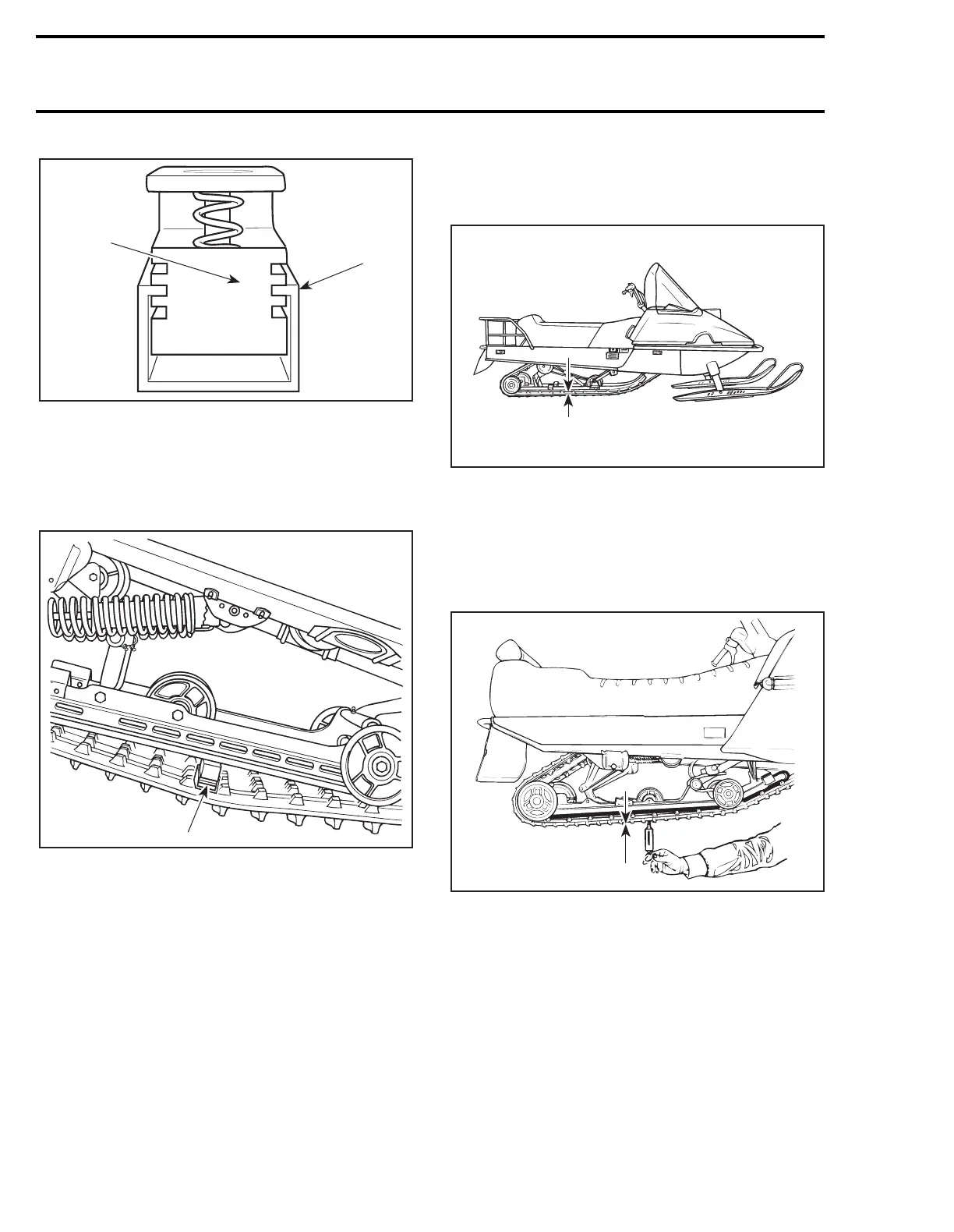

Insert pre-setted gauge between slider shoe and
track. Allow gauge to settle by forcing track up
and down. Track tension is as specified when
edge of gauge reaches line.
TYPICAL
1. Line
NOTE :
Lightly oil track tension gauge cen-
ter pin to avoid sticking.
Tundra II LT
35 to 45 mm (1-3/8 to 1-25/32 in) when exerting a
downward pull of 7.3 kg (16 lb).
A. 35 to 45 mm (1-3/8 to 1-25/32 in)
S-Series
40 to 55 mm (1-9/16 to 2-5/32 in) when exerting a
downward pull of 7.3 kg (16 lb).
TYPICAL
1. 40 to 55 mm (1-9/16 to 2-5/32 in) with 7.3 kg (16 lb)
40
45
50
A01B4JA
1
2
A01B4KA
1
A05A01A
A
1
A25F0CA
